19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame

  • 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame
  • 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame
  • 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame
  • 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODF-2000
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor, Data Center Max Capacity 720 Fibers
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
19 Inch Fiber Optic Terminal Box Distribution Frame ODF Rack SC UPC APC 720 Cores
OEM ODM Optical Fiber Distribution Frame ODF Rack 19 inch 720cores 2m 2.2m. This optical distribution terminal box is designed for the connection and dispatch of outdoor optical fiber communication links, featuring an artistic appearance, convenient operation, and long service life.
Quick Information
Part number KCO-ODF-2000
Name 19 inch indoor fiber optic distribution frame
Capacity Max 720 cores
Material Steel, 1.2mm
Cable Outdoor cable, indoor cable, FTTH cable
Cable diameter Max. 22.0mm
Adapter SC, LC, FC, ST, E2000, etc

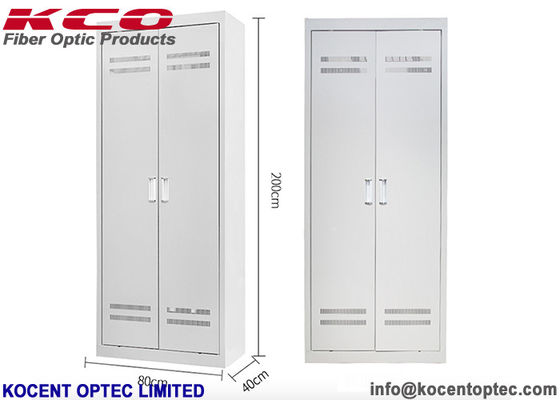

Size 2000x800x400mm
Dimensions
P/N Dimensions (H * W * D) Capacity
KCO-ODF-2000-720SC 2000x800x400mm 720 FO
KCO-OC2000-576SC 2000x800x400mm 576 FO
KCO-ODF-2000-1440SC 2000x1200x400mm 1440 FO
Applications
  • FTTH, FTTx, FTTB
  • LAN
  • Data centers
  • Local area network
Key Features
  • Composed of case body, fiber optical splice tray and adaptor fixing frame
  • Two-part design: one links with optical cables for fusion connection, another links with patch cord
  • Combines fusion and connection, surplus fiber holding, and patch cord holding in integration
  • Special plastic rings ensure bending radius >40mm for surplus fibers
  • Adapter panel fixes adaptors of different types, preventing fiber damage
  • Cable entry from bottom with special rubber protection
Product Images

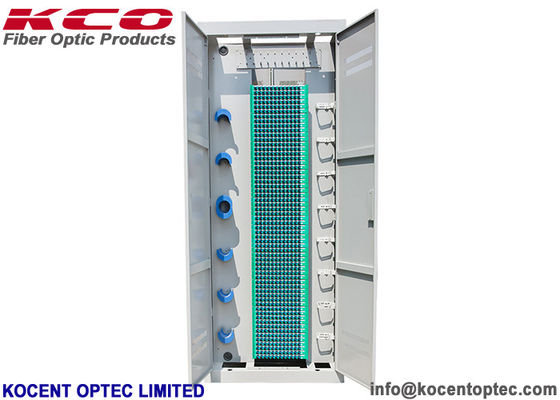

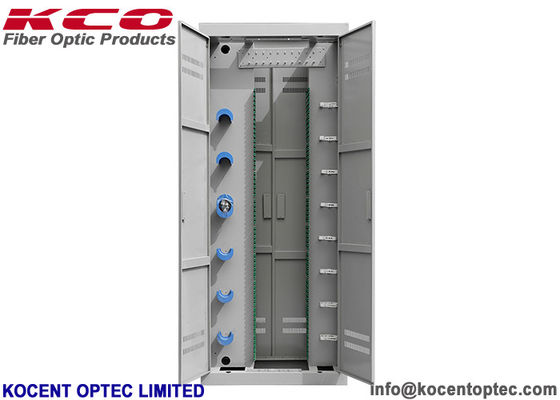

19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame 0 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame 1 19 Inch 720 Cores Fiber Optic Terminal Box with 0.15dB Insertion Loss Optical Distribution Frame 2
Operating Conditions
Temperature: -45°C to +85°C
Relative humidity: ≤85% at +30°C
Atmospheric pressure: 70KPa to 106KPa
Technical Specifications
Nominal work wavelength: 850nm, 1310nm, 1550nm
Connectors loss: ≤0.2dB
Insert loss: ≤0.2dB
Return loss: ≥50dB (UPC), ≥60dB (APC)
Insulation resistance: >1000MΩ/500V(DC)
OEM/ODM Services
Logo on label: Free
Logo on packaging: Contact sales team
Logo on product: Contact sales team
OEM service: Available
ODM service: Available
Packaging & Shipping
Packaging: Standard export packing (carton box, wooden box, wooden/plastic pallet)
Shipping methods: International express (UPS, TNT, DHL), air freight, sea freight
Export ports: Shenzhen, Hongkong, Ningbo (sea); Shenzhen, Guangzhou, Hongkong, Beijing, Shanghai, Hangzhou (air)
