Fiber Optic Rack Mount Patch Panels

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Rack mount ODF, Patch panel
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insertion Loss 0.15dB Return Loss 55dB
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity Max 48 Fibers Color Black, White
Material Steel High 1U
High Light

optical termination box

,

fibre termination box

Leave a Message
Product Description

24 cores fiber optic terminal box rack mount type 19'' patch panel 1U



Quick Information:

Part number KCO-RM-1U-fix-03
Size 485x300x44.5mm
Capacity 24 cores (for ST), 48 cores (for LC)
Material Steel
Cable Outdoor cable, indoor cable, ftth cable
Cable diameter Max. 22.0mm
Adapter SC, LC, FC, ST, E2000, etc
High 1U



Product introduction:

- The wall mountalbe fiber optic terminal box design to use to building or pillar wall mounting. It can use for indoor or outdoor application.

- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.

- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.



Applications:

- LAN

- Data centers

- FTTH, FTTx, FTTB

- Local area network etc



Features:

- It is composed of case body, fiber optical splice tray and adaptor fixing frame.

- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration

- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.

- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.

- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.



Product picutures:

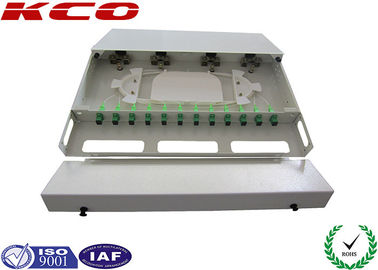

White color:

Fiber Optic Rack Mount Patch Panels 0

Fiber Optic Rack Mount Patch Panels 1

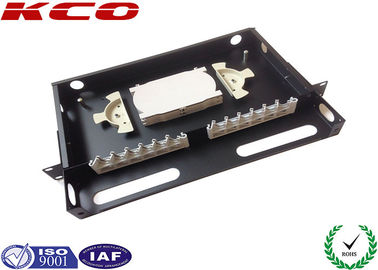

Black color:

Fiber Optic Rack Mount Patch Panels 2



Fiber Optic Rack Mount Patch Panels 3



Operating Conditions:

- Temperature -45~+85

- Relative humidity 85%(+30 C)

- Atmospheric pressure 70KPa~106KPa



Qualification:

- Nominal work wave-length:850nm,1310nm,1550nm

- Connectors loss 0.2dB

- Insert loss 0.2dB

- Return loss >=50dB(UPC),>=60dB(APC)

- Insulation resistance (between frame and protection

- Grounding) >1000MΩ/500V(DC)



Parameters:

Type 19' fiber optic patch panel/ Rackmount
P/N KCO-RM-1U-fix-03
Size 485x300x44.5mm
Color White, black
Capacity Max. 48 cores
Insert loss ≤ 0.2dB
Return loss 50dB (UPC), 60dB (APC)
Durability 1000 Mating
Wavelength 850nm,1310nm,1550nm
Operating temperature -25°C~+40°C
Storage temperature -25°C~+55°C
Relative humidity ≤85%(+30°C)
Air pressure 70Kpa~106Kpa
Connector SC, FC, LC, ST, etc
Cable 0.9mm~22.0mm



Package:

Fiber Optic Rack Mount Patch Panels 4



OEM Service:

If you want to display your own brand LOGO on the fiber optic distribution terminal box, it is no any problem. We supply LOGO printing service to you. We also can print your LOGO on the package carton box also. Call us or e-mail to us with your detail request!



Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
