Wall Mount Fiber Termination Box

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Outdoor Fiber to the building box
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor, Wall Mount Capacity 12 Fibers Fo
Highlight

outdoor terminal box

,

fibre termination box

Leave a Message
Product Description

FTB 12 cores water proof outdoor wall mountable fiber optic terminal box



Quick Information:

Part numberKCO-FTB-12
Size235x200x60mm
Capacity12 cores (for SC), 24 cores (for LC)
MaterialPlastic ABS+PC
Cableoutdoor cable or FTTH cable
Cable diameterMax. 22.0mm
AdapterSC, LC, FC, ST, E2000, etc


Applications:
- LAN
- Data centers
- Local area network etc
- FTTH, FTTx, FTTB



Quick Information:

Part numberKCO-FTB-12
Size235x200x60mm
Capacity12 cores (for SC), 24 cores (for LC)
MaterialPlastic ABS+PC
Cableoutdoor cable or FTTH cable
Cable diameterMax. 22.0mm
AdapterSC, LC, FC, ST, E2000, etc


Product introduction:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountalbe fiber optic terminal box design to use to building or pillar wall mounting. It can use for indoor or outdoor application.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.

Features:
- It is composed of case body, fiber optical splice tray and adaptor fixing frame.
- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

Product picutures:

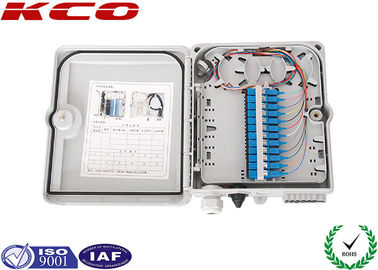

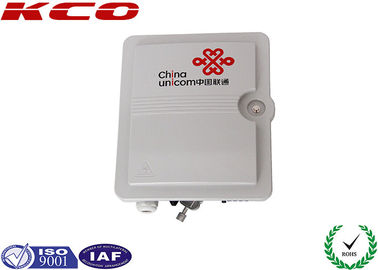

Wall Mount Fiber Termination Box 0
Wall Mount Fiber Termination Box 1Wall Mount Fiber Termination Box 2

Operating Conditions:
- Temperature -45~+85
- Relative humidity 85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss 0.2dB
- Insert loss 0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

Parameters:

TypeOutdoor FTB
P/NKCO-FTB-12
Size235x200x60mm
ColorWhite, grey
CapacityMax. 24 cores
Insert loss≤ 0.2dB
Return loss50dB (UPC), 60dB (APC)
Durability1000 Mating
Wavelength850nm,1310nm,1550nm
Operating temperature-25°C~+40°C
Storage temperature-25°C~+55°C
Relative humidity≤85%(+30°C)
Air pressure70Kpa~106Kpa
ConnectorSC, FC, LC, ST, etc
Cable0.9mm~10.0mm


Package:
According to export standard packing.
Wall Mount Fiber Termination Box 3

OEM Service:
If you want to display your own brand LOGO on the fiber optic distribution terminal box, it is no any problem. We supply LOGO printing service to you. We also can print your LOGO on the package carton box also. Call us or e-mail to us with your detail request!

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
