KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box

  • KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box
  • KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box
  • KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-OPK-16
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Application Outdoor Size 200*250*88 (mm)
Capacity 16 Cores Color Gray
Material Steel Tape P/N 1 OK-KR3-16SC
P/N 2 ORK-16-1SC/APC Logo Print Customized
OEM Service Yes P/N 3 KCO-OPK-16
Highlight

OEM Optical Distribution Box

,

Wall-mounted Fiber Optical Distribution Box
Leave a Message
Product Description
KCO-OPK-16 OEM 16fo Wall-Mounted Fiber Optical Distribution Box
The KCO-OPK-16 wall-mounted fiber optic distribution box provides efficient cable connections between outside plant cables and equipment inside buildings and communications facilities. This integrated unit combines fiber splicing, storage, and cable connections in a single compact solution.
Product Overview
Kocent Optec Limited is a leading manufacturer of passive fiber optic products, offering comprehensive OEM and ODM services. The KCO-OPK-16 distribution box features large working space for pigtail, cable, and adapter management, supporting both bundle type and ribbon type fiber cables.
Key Applications
  • Cable inlet and fixing operations
  • Fiber splicing and protection
  • Pigtail and patch cord storage
  • Connection management between wiring closets and equipment
  • Telecommunications networks
  • Fiber to the home (FTTH) systems
  • LAN/WAN and CATV system projects
Technical Specifications
Operating Temperature -5℃ to +40℃
Relative Humidity ≤85% (+30℃)
Atmospheric Pressure 70Kpa to 106Kpa
Durability >1000 cycles
Standard Working Wavelength 850nm, 1310nm, 1550nm
Dimensions (W×H×D) 200×250×88 mm
Protection Grade IP43
Product Features
  • Dust and weather protected enclosure
  • Rubber seals on front door and cable entries for moisture and dust prevention
  • Maximum 24 fiber welded joints capacity
  • Supports up to 16+2 SC type adapters
  • Quick installation without special tools
  • Accepts up to 12 incoming cables
  • Supports up to 16 outgoing drop-cables
  • Front panel with lock for security
  • Transit cable laying capability
  • Suitable for indoor and outdoor installation
  • Anti-vandal design from 1.0-1.2mm steel
  • Supports up to two PLC splitters (1x16, 1x8, 1x4)
  • OEM service available
Product Images

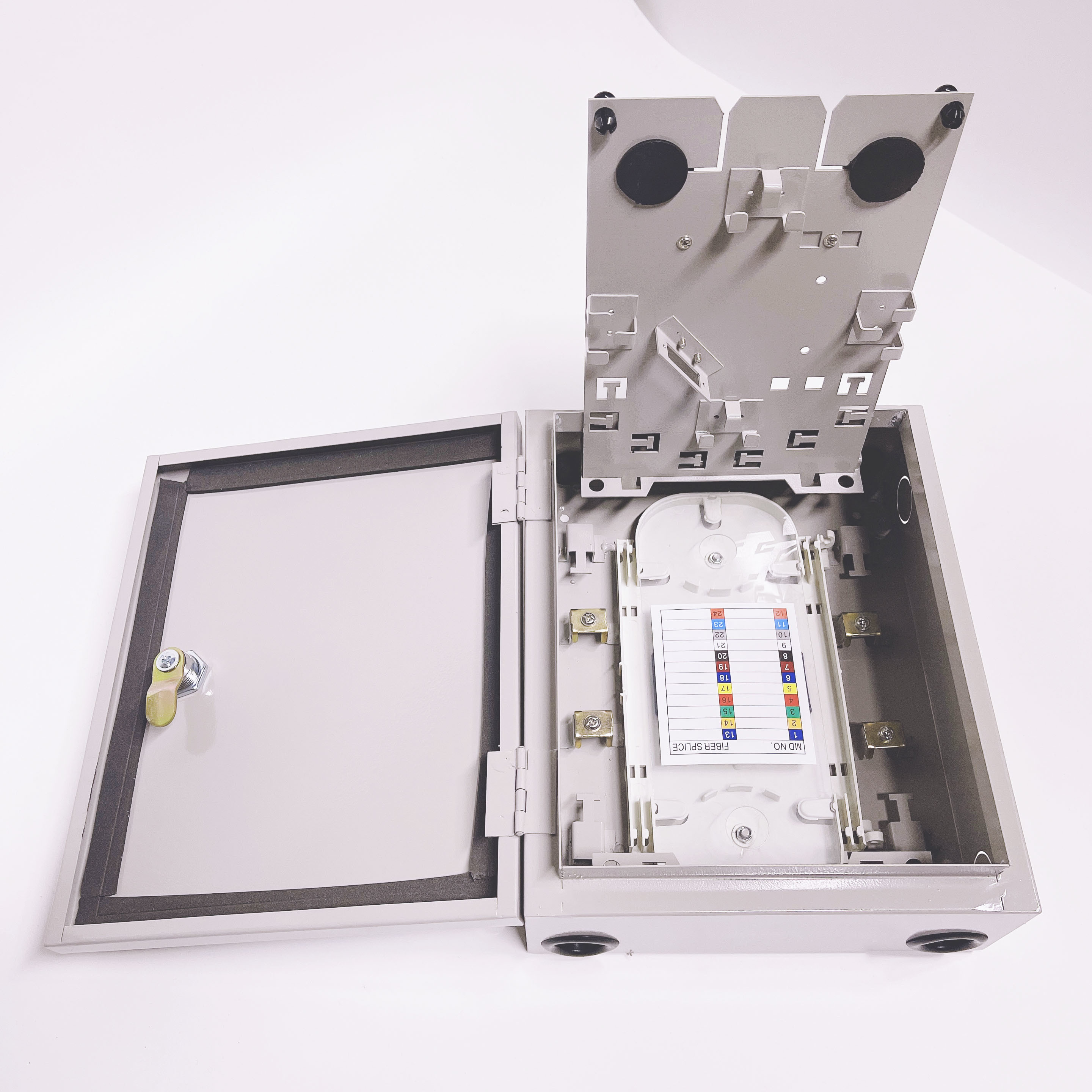

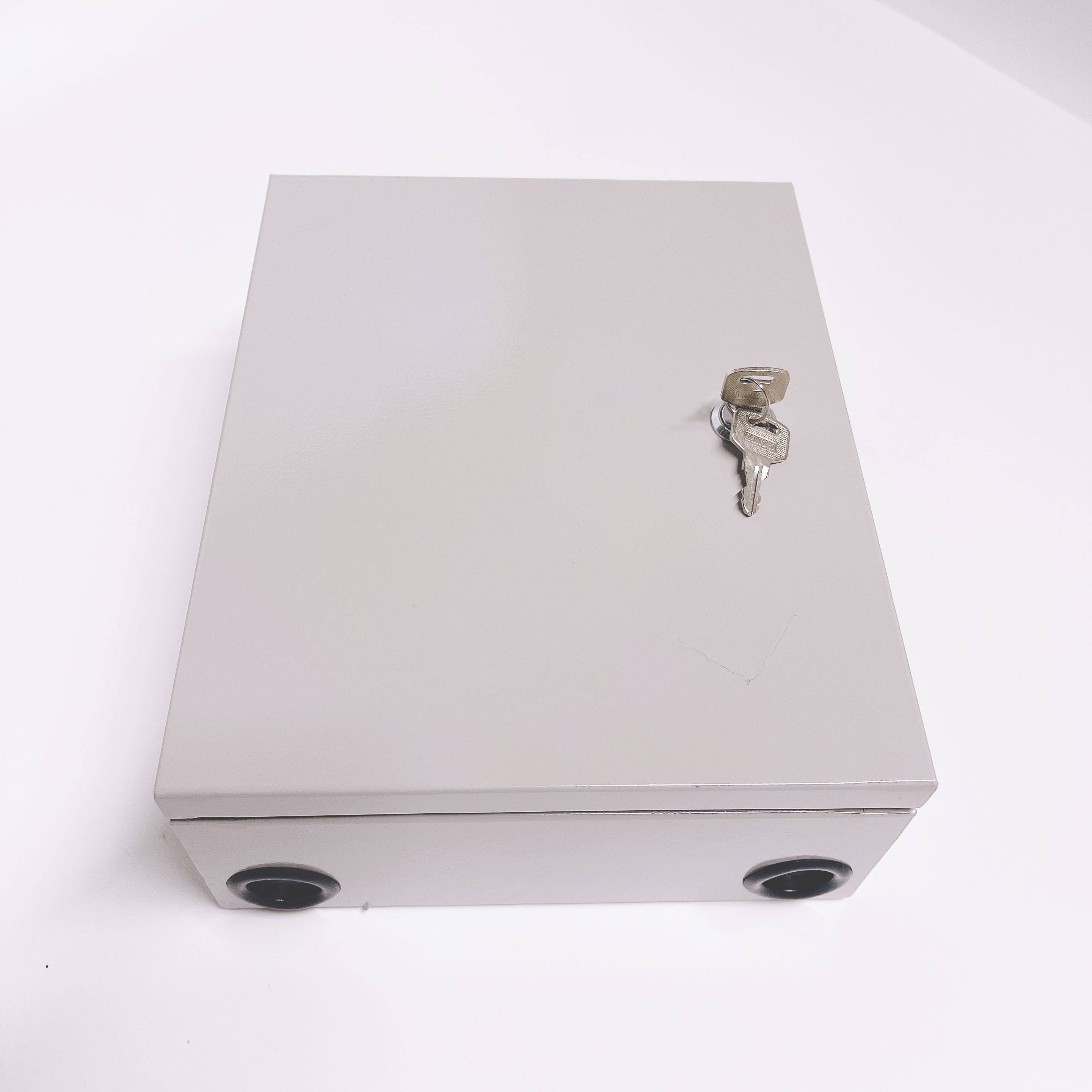

KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box 0 KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box 1 KCO-OPK-16 OEM 16fo Wall-mounted Rapredilitelny Fiber Optical Distribution Box 2
Additional Services
Kocent Optec Limited offers comprehensive OEM and ODM services for all fiber optic products including custom branding on cables, packaging, labels, and other components. Contact our sales team for personalized support.
Shipping & Packaging
Products are packaged according to standard export requirements using carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight through major carriers from standard export ports and airports in Shenzhen, Hong Kong, Ningbo, Hangzhou, and Shanghai.
