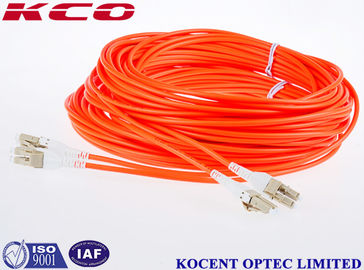

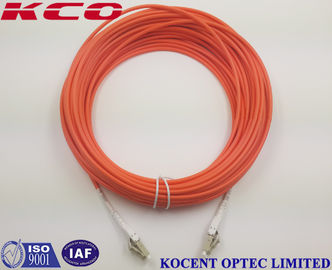

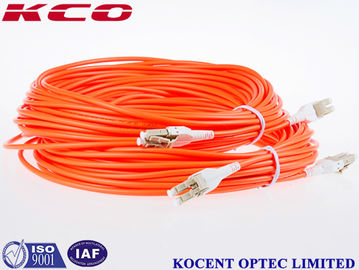

Multimode OM2 50/125 LC Uniboot Fiber Optic Patch Cords LSZH PVC 10m 15m 20m 30m 40m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | LC/UPC Uniboot | Connector 2 | LC/UPC Unitboot, SC Uniboot |
|---|---|---|---|
| Core | 2 Cores | Cover | LSZH, Armored, Customized |
| Insertion Loss | 0.2dB | Return Loss | 60dB |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
LC Uniboot Multimode OM2 50/125 Fiber Optic Patch Cables
High-performance LC Uniboot Multimode OM2 50/125 Fiber Optic Patch Cables available in LSZH PVC construction with lengths of 10m, 15m, 20m, 30m, and 40m.
Quick Specifications
| Product Name | Uniboot LC Multimode Fiber Optic Patch Cable |
| Model Number | Uniboot LC |
| Insertion Loss | <0.2dB |
| Return Loss | SM/UPC≥50dB, SM/APC≥60dB, MM≥35dB |
| Cable Jacket Size | 3.0mm, 2.0mm |
| Cable Color | Orange |
| Cable Material | PVC, LSZH |

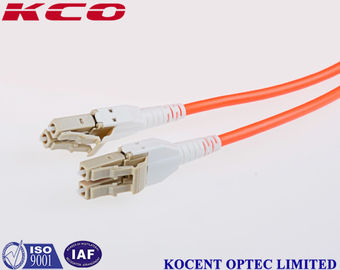

LC Uniboot Connector Features
As the most compact connectors in the industry, LC Uniboot connectors are available in single, multimode, and APC applications. The extended longer latch on top of the connector body facilitates easy disengagement from adapters, even in high-density packaging environments.
LC Uniboot connectors utilize stainless stop-ring and crimp-ring structures to provide superior retention force between connector and cable.
Innovative Design
LC Uniboot is a duplex switchable connector featuring a unique design that accommodates round style, 2mm or 3mm jacketed cable instead of traditional zipcord duplex cable for more compact installations.
The housing of the LC Duplex Switchable Connector can be field-disassembled without special tooling. This duplex LC design allows fiber polarity to be switched during cable assembly installation without requiring re-termination of connectors.
The single piece design fits all duplex and simplex adapters. By using a single cable with two fibers, installers can reduce cable count and weight by 50%. This design is ideal for data centers with high cable counts and limited space.
Product Description
- Uniboot LC is a duplex LC connector with a single boot design
- Accommodates single round duplex 3mm cable for duplex connector applications
- Single piece design compatible with all duplex and simplex adapters
- Features compact, pull-proof design with RJ-45 style interface
- All materials are RoHS compliant
- Reduces cable count and weight by 50% through single cable dual-fiber design
- Ideal for data centers with high cable density and space constraints
Uniboot Fiber-Optic Cables feature full duplex fiber-optical cables with LC, SC or LC/SC connectors and are ITU-T G.651 Compliant with 50/125μm or 62.5/125 μm core diameter.
The Multimode graded index optical fiber patch-cord is optimized for interconnection of SAN switches, networking equipment and Fibre Channel devices requiring up to 10Gbps data transmission.
10Gbps laser-optimized Fiber Optical cable compatible with VCSEL technology.
Technical Specifications
| Flame Rating | LSZH/FRNC |
| Cable Assembly Type | 2 Fibres |
| Fibre Category | SM, OM3, OM4 |
| Connector Type | LC Uniboot |
| Ferrule | Ceramic |
| Polish | UPC |
| Housing Material | PEI and Stainless steel |
| Boot Color | Blue, Green, Grey, White |
| Operating Temperature | -40℃ to 85℃ |
| Installation Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
| Durability | IL≤0.2Db 500 times |
| Tensile Strength | 44 N (jacketed cable) |
| Insertion Loss (Typical) | 0.15 dB |
| Insertion Loss (Maximum) | 0.3 dB |
| Reflectance (Typical) | ≤-55dB |
Applications
Data Center Transceivers
LC connectors are the standard for SFP transceivers. Uniboot LC connectors are specifically designed for XFP transceivers, reducing cable diameter and optimizing data center space utilization. Increasingly popular in datacom applications.
Fiber Cable Distribution in Data Centers
Uniboot LC bundles are widely deployed in data center environments, typically installed along yellow channels. These bundles connect and distribute various equipment including routers, switches, servers, and storage systems.
OEM/ODM Services
Custom branding services available. We can apply your logo on cables, packaging bags, labels, or any requested location. Our OEM and ODM services are fully equipped to meet your customization requirements.
Packaging
- Standard export packaging
- Carton boxes, wooden boxes, wooden pallets
Shipping Options
- International express services: UPS, TNT, DHL, etc.
- International air freight: CA, AA, EA, etc.
- Sea freight
