NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | LC, SC, MPO | Connector 2 | LC, SC, MPO |
|---|---|---|---|
| Core | Duplex, 2 Cores | Insertion Loss | 0.2dB |
| Return Loss | 55dB | Cable Cover Material | Armored, PVC, LSZH |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
Nokia NSN DLC 90 Degree Single Mode Mono Mode CPRI FTTA Fiber Optic Patch Cord Waterproof
KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch cord.
Special in outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord.
We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.
About Nokia NSN outdoor patch cord:
- IP67 Waterproof NSN to standard SC/ LC /FC/ ST/ E2000 duplex singlmode waterproof fiber patch cable with LC angled 90° with NOKIA compatible waterproof sealing on one end of the cable and standard SC /LC/ FC/ ST/ E2000 connector on the other end.
- The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications.
- The SC/ LC/ FC/ ST/ E2000 connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems.
- IP67 Waterproof NSN to standard SC/LC/FC/ST/E2000single mode duplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.
Application:
1- Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
2- Automation and industrial cabling
provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
3- Surveillance systems
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.
4- Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.
5- Broadcast
offers a range of mobile cabling systems and ODC assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side A: DLC/UPC singlmode (multimode) with Nokia NSN boot |
| Side B: ODVA connector, DLC(duplex LC), SC, ST, FC, MPO/MTP,... | |
| Fiber count | 2 cores, 4 cores and more |
| Fiber Type | SM (G.652D/G.657A) |
| MM (OM1/OM2/OM3) | |
| Jacket Materials | LSZH/ OFNR/ PVC/ PE |
| Cable diameter | 4.8mm, 7.0mm |
| Testing Wavelengths | SM: 1310±30/1550±30nm |
| MM: 850±30/1300±30nm | |
| Insertion Loss(dB) TIA/EIA-455-107 |
≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) | |
| Return Loss(dB) TIA/EIA-455-107 |
≥45dB (PC/UPC) |
| ≥55dB (APC) | |
| ≥35dB (UPC) | |
| Exchange ability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord |
| Operating Temperature | -14℃~+ 85℃ |
| Storage Temperature | -40℃~+85℃ |

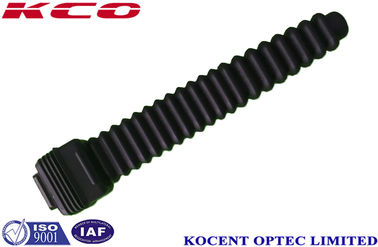

NSN boot design:
Product photo:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
