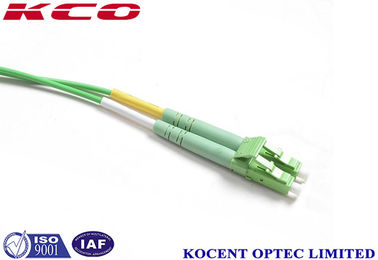

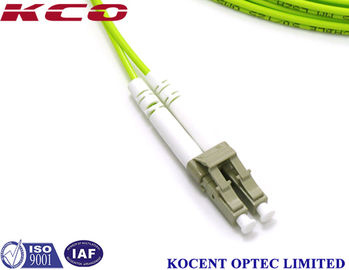

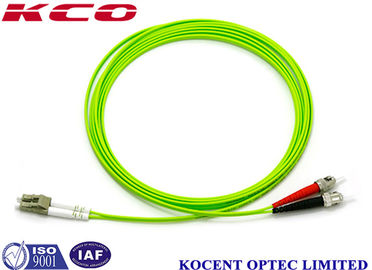

OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission

  • OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission
  • OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission
  • OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission
  • OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number LC Duplex
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 LC Connector 2 LC, SC, FC, ST
Fiber 2 Fiber Insertion Loss 0.35dB
Return Loss 60dB Fiber Type Multimode OM5
Color Lime Green Cover PVC, LSZH
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
WBMMF OM5 50/125 Fiber Optic Patch Cord Jumper LC DX SX MM 60dB Return Loss
Product Description
OM5 wideband multimode fiber is optimized for multi-wavelength transmission systems operating in the 850-950nm range, supporting emerging Shortwave Wavelength Division Multiplexing (SWDM) applications. This technology reduces parallel fiber count by at least four times, enabling transmission of 40 Gb/s (up to 400m) and 100 Gb/s (up to 150m) using just two fibers instead of eight.
Key Advantages of OM5 Fiber
  • Officially recognized by TIA-492AAAE standard and in final voting stage at IEC as IEC 60793-2-10 version 6
  • Will be included in upcoming ISO/IEC 11801 version 3 and ANSI/TIA-568.3-D wiring standards
  • Fully compatible with OM3 and OM4 fiber while supporting all traditional applications
  • Supports four wavelengths in 850-950nm range for SWDM applications, reducing fiber count requirements
  • Proven performance in various network environments including campuses, buildings, and data centers
OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission 0 OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission 1
Technical Specifications
Connector LC to LC or other
Fiber Type 50/125um, MM, OM5
Polish UPC to UPC
Fiber Configuration Duplex (simplex, multi-cores)
Insertion Loss ≤0.2dB
Return Loss ≥25dB
Operating Temperature -40°C to 70°C
Polarity A(Tx) to B(Rx)
Jacket Outer Diameter 2.0mm/3.0mm
Jacket Color Lime Green
Wavelength 850/1300nm
Jacket Material PVC/LSZH
Cable Retention 90N
Minimum Bend Radius 10D (installed) - 20D (loaded)
Storage Temperature -45°C to 85°C
Strength Member Aramid
Custom Branding Options
We offer OEM/ODM services to display your brand logo on cables, packaging, labels, or any other visible location.
Packaging
Standard export packing options include carton boxes, wooden boxes, and wooden pallets.
OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission 2
Shipping Options
  • International express services (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
OM5 50/125 Fiber Optic Patch Cord with 60dB Return Loss and 850/1300nm Wavelength for High-Speed Data Transmission 3
