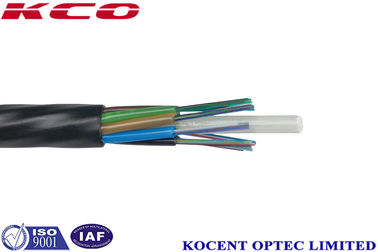

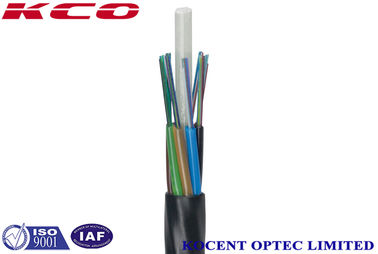

24 Core Single Mode Fiber Cable GCYFY Outdoor Pipeline Underground Fiber Optic Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-GCYFY |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE | Name | Outdoor Duct Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Application | Outdoor Or Customized |
| Fiber | Single Mode, Multimode, OM3, OM4, OM5 | Cores | 4 Cores To 24 Cores Or More |
| Highlight | optical fibre cable,tight buffered fiber optic cable |
||
Product Description
24 Core Single Mode Fiber Cable GCYFY Outdoor Pipeline Underground Fiber Optic Cable
Air-blowing micro cable technology enables optical cable installation using compressed air. This advanced system can be applied to any network construction scenario. The process involves blowing HDPE guided tubes into buried HDPE or PVC ducts, followed by air-blowing micro non-metallic optical cables into the guided tubes.
Key Advantages
- High dense fiber count with repeated use of guided tubes for efficient duct resource utilization
- Rapid deployment of micro fiber optic cable to meet evolving business needs
- Future-proof design accommodating new fiber types and technological advancements
- Easy capacity expansion in all directions with reduced construction work and cost savings
- Fast installation via air-blowing method with long-distance capability and high burial efficiency
Application Areas
- Backbone network infrastructure
- Underground network systems
- Access network deployments
- FTTH (Fiber to the Home) installations
Technical Specifications

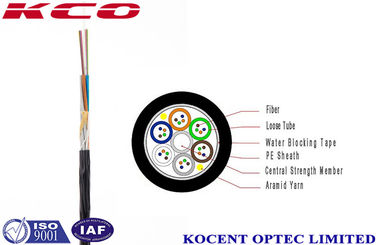

| Structure | No. of fibers | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Minimum Bending Radius (mm) | Allowable Crush Resistant (N/10cm) |
|---|---|---|---|---|---|---|
| Central tube | 2~12 | 4.0 | 12 | 150 | 80/40 | 4500/1500 |
| 14~24 | 4.4 | 14 | 150 | 90/45 | 4500/1500 | |
| Stranded | 24 | 5.6 | 23 | 500 | 120/60 | 4500/1500 |
| Stranded | 36 | 5.6 | 23 | 500 | 120/60 | 4500/1500 |
| Stranded | 48 | 5.6 | 23 | 500 | 120/60 | 4500/1500 |
| Stranded | 60 | 5.6 | 23 | 500 | 120/60 | 4500/1500 |
| Stranded | 72 | 5.6 | 23 | 500 | 120/60 | 4500/1500 |
| Stranded | 96 | 6.5 | 34 | 500 | 130/65 | 4500/1500 |
| Stranded | 144 | 7.4 | 40 | 1000 | 150/75 | 4500/1500 |
| Stranded | 192 | 8.0 | 50 | 1000 | 160/80 | 4500/1500 |
| Stranded | 216 | 8.7 | 60 | 1000 | 180/90 | 4500/1500 |
| Stranded | 288 | 10.3 | 79 | 1000 | 210/105 | 4500/1500 |
Operating temperature range: -40°C to +70°C
Storage temperature range: -40°C to +70°C
Installation temperature range: -10°C to +50°C
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging bags, labels, and other components to meet your specific requirements.
Packaging Options
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets to ensure safe transportation and delivery.
Shipping Methods
- International express services (UPS, TNT, DHL, etc.)
- International air freight (CA, AA, EA, etc.)
- Sea freight transportation
