GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation

  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTC8S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 1km~5km Each Roll Cable Type GYTC8S
Fiber Single Mode, Multimode Cores 2 Cores To 144 Cores
Color Black Diameter 9.0mm
Part Number GYTC8S-xA1
Highlight

Figure 8 Aerial Fiber Optic Cable

,

Self-supporting Fiber Optic Cable

,

Corrosion Resistant Outdoor Fiber Optic Cable
Leave a Message
Product Description
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable
Product Description

- The GYFTC8Y Fiber Optic Cable fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound.

- Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member.

- The cable core is protected with jelly or water-blocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer sheath.

- The fibers, either of single-mode or multimode type, are placed in a loose tube made of high modulus plastic.

- The tubes inside are filled with a water-resistant filling compound.

- A center member locates in the center of core as a non- metallic strength member.

- The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

- Water blocking yarn and water blocking tape to protect cable from water. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

Standard

- Complies to ITU-T G.652.D, IEC 60793, IEC 60794, and related TIA/ EIA standards.

Applications
- GYFTC8Y Cable is designed for outdoor/aerial applications, with high tensile strength, crush resistance and suitable bending radius.

Fiber Characteristics
Fiber Style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0
Dispersion (1550nm) Ps/(nm*km) Dispersion
Dispersion (1625nm) Ps/(nm*km)
Bandwidth (850nm) MHZ.KM Bandwidth
Bandwidth (1300nm) MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm
PMD Maximum Individual Fiber
≤0.11
Fiber Color Code
  • 1. Blue
  • 2. Orange
  • 3. Green
  • 4. Brown
  • 5. Grey
  • 6. White
  • 7. Red
  • 8. Black
  • 9. Yellow
  • 10. Violet
  • 11. Pink
  • 12. Aqua

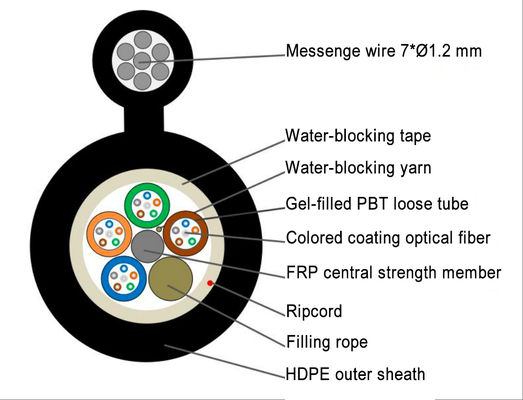

Cable structure
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation 0
OEM/ODM Service

We offer custom branding options for your cable, packaging, and labels. Our OEM and ODM services can accommodate your specific branding requirements.

Packing

Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Shipping Options
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
