FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications

  • FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications
  • FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications
  • FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications
  • FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FC-FC-DX-OM4-3.0mm-Violet
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector FC/PC Mode Muti Mode OM4
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 50/125
Highlight

fibre optic patch cable

,

patch cord pigtail
Leave a Message
Product Description
FC/UPC-FC/UPC OM4 Fiber Optic Patch Cord Jumper 50/125 Violet 10G PVC LSZH
Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common types of FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, and SC Uniboot connectors, with specialization in OM4 Fiber Optic Patch Cords.
Applications
  • Fast Ethernet networks
  • Data Communication LAN and WAN
  • High-speed Enterprise servers
  • Multiplexers, switches and routers
  • Optical Access and ATM Networks Equipment
  • Optical Transport and Telecommunications
  • FTTH, FTTD, and FTTX Switching Equipment
About FC Connector
The FC connector is a fiber-optic connector with a threaded body designed for high-vibration environments. Commonly used with both single-mode optical fiber and polarization-maintaining optical fiber, FC connectors are utilized in datacom, telecommunications, measurement equipment, and single-mode lasers. While becoming less common due to displacement by SC and LC connectors, the FC connector has been standardized in TIA fiber optic connector intermateability standard EIA/TIA-604-4.
Originally called a "Field Assembly Connector" by its inventors, "FC" stands for "ferrule connector" or "fiber channel".
About OM4 Fiber
OM4 is laser-optimized 50um fiber with 4.7GHz*km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission. Available since 2005 and initially sold as premium OM3 fiber, the OM4 cable designation standardizes nomenclature across manufacturers for clearer product identification.
OM4 fiber is fully backwards compatible with OM3 fiber and shares the same distinctive aqua jacket. Developed specifically for VSCEL laser transmission, OM4 supports 10 Gig/second link distances up to 550 Meters (compared to 300M with OM3) and offers an Effective Modal Bandwidth (EMB) of 4700 MHz-km.
Key Features
  • High return loss and low insertion loss
  • Excellent exchangeability & durability
  • High reliability and stability
  • Compliant with Telcordia, GR-326-Core, IEC and RoHS Standards
  • Multimode (MM) based on 50/62.5-125um fibre
  • Ceramic Ferrule construction
Product Images

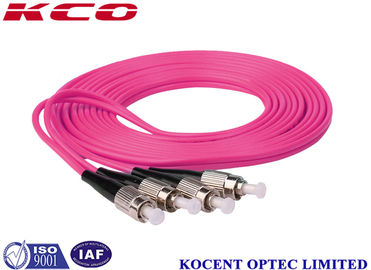

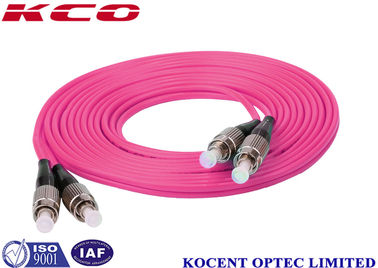

FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications 0 FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications 1
Specifications
Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) | MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm | 850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107 ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107 ≥45dB(PC/UPC) ≥55dB(APC) | ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C) -10 ~ +70
Storage Temperature (°C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.
OEM/ODM Service
We offer custom branding services for your goods including cables, packaging bags, labels, or any visible location. Our OEM and ODM services can accommodate your specific branding requirements.
Packing
Standard Export Packing options include carton boxes, wooden boxes, and wooden pallets.
Shipping Options
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Ocean freight

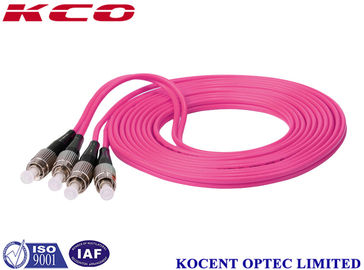

FC/UPC Fiber Optic Patch Cord with OM4 Multimode 50/125 Core for 10G Ethernet Applications 2
