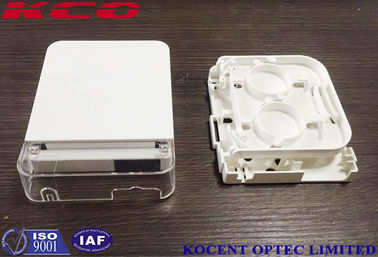

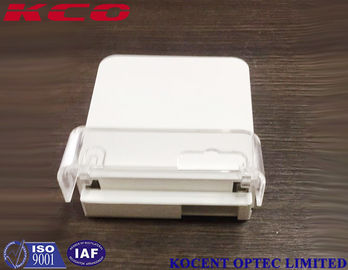

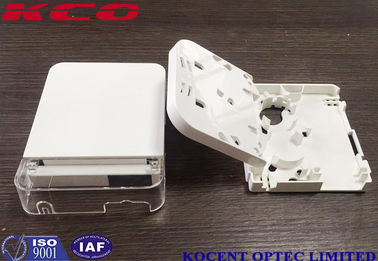

2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port

  • 2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port
  • 2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port
  • 2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FP-SCD-01
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor Capacity 2 Fibers
High Light

optical termination box

,

fibre termination box
Leave a Message
Product Description

1 Port SC Duplex Fiber Optic Termination Box Wallmount Socket 2 Cores FTTH FTTB

Descroption:
- 1 port fiber optic termination box is used for splicing and termination between indoor fiber optic cable and pigtails.
- The termination box is used for wall mounted or desktop applications.
- It is use to installation 1 SC duplex adapter or 1 LC Quad Adapter.
- It is the termination for optical fiber user, specially designed to construct FTTH.
- It can be installed at the corridors and multi-media cases for optical fiber users.
- The methods of coldly-connected or hot-melted can be used to connect the optical ends, and transmit the light by the adapterd or end of fiber to the ONU of terminal user.
- The Products are in fine property, and universal for user.
- It is widely applied in FTTX, LAN, Cable TV, and other telecom systems.


Quick Information:

Part numberKCO-FP-SCD-01
Size115x86x22mm
Capacity2 cores (for SC), 4 cores (for LC)
MaterialPlastic ABS
Cableindoor cable or FTTH cable
Cable diameterMax. 10mm
AdapterSC, LC, FC, ST, E2000, etc
ColortWhite



Feature:
- Light weight, small size and easy installation.
- Made of high class engineering plastic ABS.
- Special fiber routing designs to ensure the bending radii greater than 40mm.
- Adopting the splice trays for easy operations.
- Reliable earth device.
- Equipment with fitting for fiber optic cable fixing.

Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc


Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

Parameters:

TypeIndoor terminal box
P/NKCO-FP-SCD-01
Size115x86x22mm
ColorWhite
CapacityMax. 4 cores
Insert loss≤ 0.2dB
Return loss50dB (UPC), 60dB (APC)
Durability1000 Mating
Wavelength850nm,1310nm,1550nm
Operating temperature-25°C~+40°C
Storage temperature-25°C~+55°C
Relative humidity≤85%(+30°C)
Air pressure70Kpa~106Kpa
ConnectorSC, FC, LC, ST, etc
Cable0.9mm~10.0mm


Product Photo:
2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port 0

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
2 Cores Face Plate 1 Port Optical Fiber Termination Box SC Duplex LC Quad Port 1
