4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail

  • 4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail
  • 4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail
  • 4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FTB04B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor Capacity 4 Fibers For SC, FC, ST, E2000, 8 Fibers For LC Duplex
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description

4port Wallmount Fiber Optical Termination Box 4Core SC/APC Auto-shutter Adapter Pigtail



Description:

- FTTH KCO-FTB04B Model of Fiber Optic Terminal Box is a newly developed by our company for application of FTTH.

- The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.

- KCO-FTB04B adopts a compact plug-in design, combines a Integration, Multi-function, Modern design concept.

- It is of a graceful appearance and applicable for FTTX network, and easy use in different installation environments.

- The clasp design of the cover has greatly reduced the installation strength.

- The box fit for FC, SC, ST, LC (duplex) adaptor, with good bending protection.

- It is the termination for optical fiber user, specially designed to construct FTTH.

- It can be installed at the corridors and multi-media cases for optical fiber users.

- The methods of coldly-connected or hot-melted can be used to connect the optical ends, and transmit the light by the adapterd or end of fiber to the ONU of terminal user.

- The Products are in fine property, and universal for user. It is widely applied in FTTX, LAN, Cable TV, and other telecom systems.



Quick Information:

Part number KCO-FTB04B
Size 100x85x30mm
Capacity 4 cores (for SC), 8 cores (for LC)
Material Plastic ABS
Cable indoor cable or FTTH cable
Cable diameter Max. 10mm
Adapter SC, LC, FC, ST, E2000, etc
Color White



Product picutures:

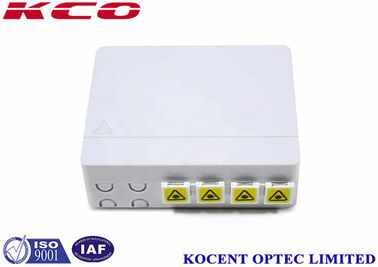

4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail 0

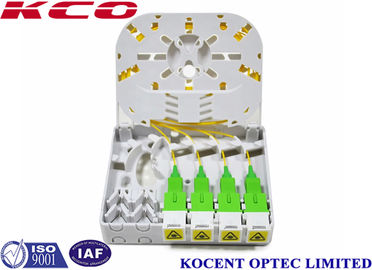

4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail 1

Application
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communication networks
- Local area Networks


Features
- Industry standard user interface, be made of high impact plastic
- Anti-UV, ultra violet resistant and rainfall resistant
- Can accommodate 4 SC/SX adapter or 4LC/DX adapter
- Up to 4 FTTH drops
- Wall mountable
- 4 cable port



Operating Conditions:

- Temperature -45~+85

- Relative humidity ≤85%(+30 C)

- Atmospheric pressure 70KPa~106KPa



Qualification:

- Nominal work wave-length: 850nm,1310nm,1550nm

- Connectors loss ≤0.2dB

- Insert loss ≤0.2dB

- Return loss >=50dB(UPC),>=60dB(APC)

- Insulation resistance (between frame and protection

- Grounding) >1000MΩ/500V(DC)



Parameters:

Type Indoor terminal box
P/N KCO-FTB04A
Size 150x117x30mm
Color White
Capacity Max. 8 cores
Insert loss ≤ 0.2dB
Return loss

50dB (UPC)

60dB (APC)
Durability 1000 Mating
Wavelength

850nm

1310nm

1550nm
Operating temperature -25°C~+40°C
Storage temperature -25°C~+55°C
Relative humidity ≤85%(+30°C)
Air pressure 70Kpa~106Kpa
Connector SC, FC, LC, ST, E2000, etc
Cable 0.9mm~10.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

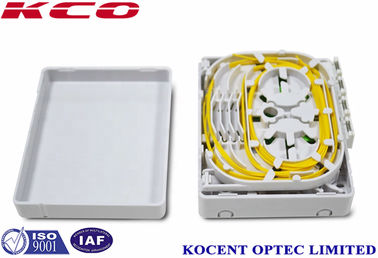

4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail 2


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

4 Port Wall Mount Fiber Termination Box 4 Core SC/APC Auto Shutter Adapter Pigtail 3
