48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution

  • 48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution
  • 48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution
  • 48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution
  • 48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FDB-0348-MK
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Color White
Connector SC Application FTTH
Capacity 32 Port Splitter 1*32
Adapter SC Outdoor Cable Port 3 Port
Drop Cable Port 32 Ports Waterproof Grade IP65
Usage Wall Mountable, Pole Mountable Size 340*260*110mm
Weight 1.95kg
Highlight

FTTH Fiber Optic Terminal Box

,

Waterproof Fiber Optic Terminal Box

,

FTTH FDB ODP Distribution Box
Leave a Message
Product Description
48 Cores Waterproof FTTH Fiber Optic Terminal Box FDB ODP Distribution Box
Product Description
32 Ports IP65 FTTH Optics Fibre Cable Distribution FDB FAT Box. This outdoor fiber optical distribution box serves as a wiring connection between optical cable and communication equipment. Through adapters in the distribution box, optical fiber jumpers lead optical signals to realize optical wiring function, while accommodating optical splitters for spectral functionality.
Designed as a termination point for feeder cables to connect with drop cables in FTTx networks, this interface device reliably connects backbone and distribution optical cables in outdoor, corridor, or indoor environments. The robust construction withstands vertical pressure up to 500N while providing splicing, splitting, and distribution capabilities with solid FTTx network protection.
Key Features
  • 48 fiber optic adapter ports capacity
  • IP65 waterproof protection rating
  • Integrated splice cassette and cable management rods
  • Maintains proper fiber radius (>40mm bend radius)
  • Easy maintenance and capacity expansion
  • Supports both fusion and mechanical splicing
  • Optional 1x32 and 1x16 splitter installation
  • Efficient cable management system
  • Operating temperature: -20℃ to 70℃
  • Available for OEM/ODM customization
Applications
  • LAN/WAN/Metro networks
  • PON networks and FTTX systems (FTTA, FTTB, FTTH, FTTO)
  • Telecom infrastructure projects
  • Indoor/outdoor fiber optic termination
  • CATV, data communications, and telecommunication networks
Technical Specifications
Item KCO-FDB-0348-MK
Dimension 340×260×110mm
Net Weight 1.95kg
Splice tray 1pcs
Adapter ports 32 port
Splitter Mini Tube PLC Splitter 1×32
Splitter capacity max. 1pcs
Color Grey
Working Temperature -25°C to 60°C (5-95% RH)
Operating Conditions
  • Temperature range: -45°C to +85°C
  • Relative humidity: ≤85% at +30°C
  • Atmospheric pressure: 70KPa to 106KPa
Performance Qualifications
  • Connectors loss: ≤0.2dB
  • Insert loss: ≤0.2dB
  • Return loss: ≥50dB(UPC), ≥60dB(APC)
  • Nominal work wavelength: 850nm, 1310nm, 1550nm
  • Insulation resistance: >1000MΩ/500V(DC)
Product Images

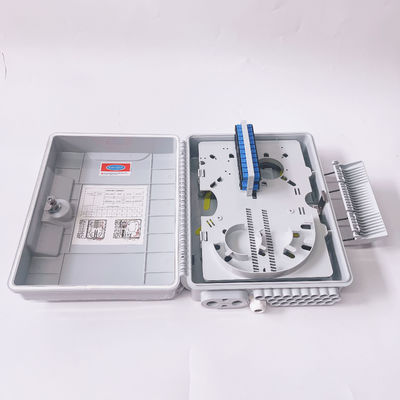

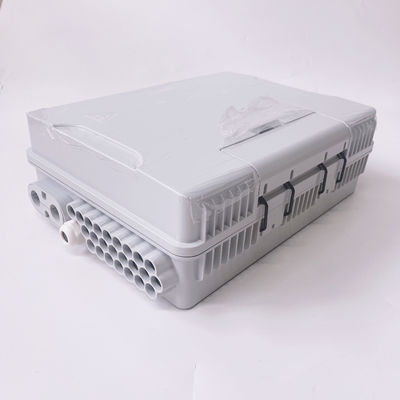

48 Cores 32 Port FTTH Fiber Optic Terminal Box with 340*260*110mm Dimensions for Outdoor Distribution 0
OEM/ODM Services
Custom branding available for cables, packaging, labels, and other components. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
Standard export packaging options include carton boxes, wooden cases, and pallets. Shipping methods available:
  • International express: UPS, TNT, DHL
  • Air freight: CA, AA, EA
  • Sea freight: COSCO, HUYNDAI
  • Standard ports: Shenzhen, Hongkong, Ningbo
