1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant

  • 1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant
  • 1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant
  • 1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant
  • 1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-PN-232SCA-ABS2.0
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 1U
Splitter Type ABS Box Type Split Way 2 Way Input & 32 Way Output
Connector SC/APC Cable 2.0mm, 3.0mm
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description

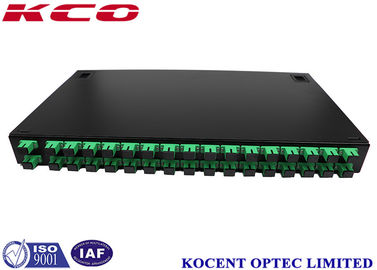

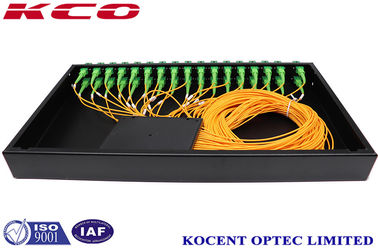

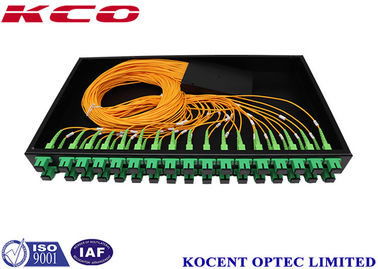

Low Insertion Loss Fiber Optic Splitter Patch Panel Termination Box SC/APC ABS Box 1U
Product Overview

Part Number: KCO-PLC-PN-232SCA-ABS2.0

Description: 2×32 Fiber Optic Splitter Patch Panel Termination Box SC/APC ABS Box 1U designed for 19" Fiber Optic Cabinets.

Key Features
  • Low insertion loss and polarization dependent loss
  • Excellent environmental and mechanical stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
  • Available in steel (0.8mm, 1.0mm, 1.2mm) or aluminum alloy construction
  • Customizable colors (grey, white, black, or custom requests)
  • Available in 1U or 2U configurations
  • Free splitter and adapter installation when purchasing complete system
  • Free logo printing for orders over 100 pieces
Applications
  • Fiber to The Point (FTTX) and Fiber to The Home (FTTH)
  • Passive Optical Networks (PON) and Gigabit PON (GPON)
  • Local Area Networks (LAN) and Cable Television (CATV)
  • Test equipment installations
Technical Specifications
Parameter Value
Fiber Length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Performance Data
Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
OEM/ODM Services

Custom branding available for cables, packaging, labels, and products. No minimum quantity requirements for OEM services.

1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant 0
Packaging & Shipping

Standard Packaging: Carton box, wooden box, or wooden pallet

  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Ocean freight available
1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant 1 1U Height 2x32 Split Way Fiber Optic Splitter PLC Splitter Telcordia GR-1221/GR-1209 Compliant 2
