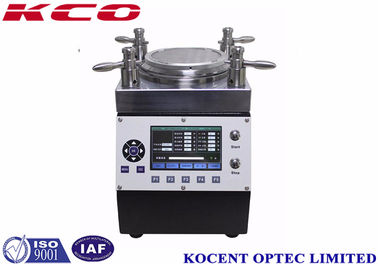

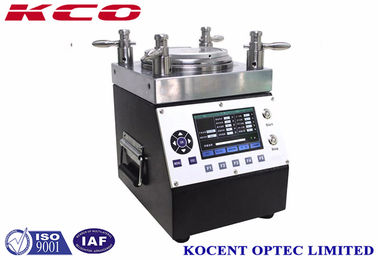

Intelligent Fiber Optic Polishing Machine with 5 Inch Color LCD Screen 48 Heads and 24 Hours Working Time

  • Intelligent Fiber Optic Polishing Machine with 5 Inch Color LCD Screen 48 Heads and 24 Hours Working Time
  • Intelligent Fiber Optic Polishing Machine with 5 Inch Color LCD Screen 48 Heads and 24 Hours Working Time
  • Intelligent Fiber Optic Polishing Machine with 5 Inch Color LCD Screen 48 Heads and 24 Hours Working Time
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number PM6800
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details soft caring case, carton box
Delivery Time 2~4 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Enterface FC, SC, LC, ST Light LD
Working Time 24 Hours Wavelength 1 850/1310nm
Wavelength 2 1310/1550nm Name VFL OPM 2in1 Testing Device
Highlight

fiber optic accessories

,

fiber optic tools and equipment
Leave a Message
Product Description
PM6800 Corner Pressure Fiber Optic Polishing Machine
Intelligent Patch Cord Grinding Device
The PM6800 intelligent optical fiber grinder is designed for processing optical fiber end faces of various fiber products including fiber connectors (jumpers, tail fibers, fast connectors), energy fiber, plastic fiber, and device embedded short cores. Widely used in the optical communication industry, this machine is typically combined with curing furnaces, end detectors, voltage testers, and other equipment to form complete production lines for manufacturing fiber optic jumpers, tail fibers, and passive devices.
Product Characteristics
  • 5-inch color LCD screen with intuitive interface
  • Programmable lapping process with automatic grinding time compensation to maximize grinding paper usage and reduce costs
  • Programmable grinding chip counting for efficient consumables management
  • Customizable action prompts for operational parameters and connection head changes
  • Processes all standard fiber connectors: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT-RJ, E2000, and energy fiber end faces
  • High-capacity operation with support for up to 48 abrasive heads
  • Precision mechanical coordination with independent rotation for consistent grinding quality
  • Waterproof design with professional structural safety features
Maintenance Procedures
  • Clean all abrasive pieces with water after each grinding session or when stopping for extended periods
  • Use high-quality abrasive pieces as service life varies by type and working procedure
  • Perform ultrasonic cleaning of the grinding disc at least once daily
  • Regularly check and lubricate transmission parts with Mobil NLGIZ grade grease
  • Monitor cooling fan operation and clean any fouling promptly
  • Regularly inspect and replace grinding grease under the chassis
  • Protect grinding chassis from contamination and impact
Equipment Care Guidelines
  • Daily cleaning of mats with clean paper towel covering to prevent dust contamination
  • Proper storage of unused abrasive pads in PE bags
  • For long-term storage:
    • Ultrasonic clean and coat grinding fixtures with protective oil
    • Seal grinder driving parts with protective oil layer
  • Monthly lubrication procedure:
    • Pry open turntable with screwdriver
    • Remove grinder rotary disc
    • Position disc gasket correctly
    • Add lubricating oil to chassis
    • Reinstall turntable
  • Biannual pressure spring replacement:
    • Loosen pressure fixing screws
    • Remove pressure spring with hexagonal plate hand
    • Install new spring
Safety Precautions
  • Never leave machine unattended during operation
  • Avoid subjecting grinder to unnecessary vibration or impact
  • Never operate controls with wet hands
  • Ensure correct power supply voltage and frequency
  • Maintain proper machine grounding
  • Keep hands clear of rotating parts during operation
  • Always disconnect power before disassembling components
Compatible Equipment List
Item Machine Quantity
1 Fiber optic cable cutting machine 1 set
2 Fiber optic stripping tool 4 pcs
3 Fiber optic curing oven 4 pcs
4 Fiber optic polishing machine 5 set
5 Fiber optic fixed jig 5 pc
6 Fiber optic IL and RL testing machine 1 set
7 Fiber optic ferrule end-face microscope 2 set
8 3D interferometer 1 set
Fiber Optic Fixed Jig Options
Item Fixed Jig Type Connector Head Capacity
1 SC/UPC 24/36/40/48
2 SC/APC 24/36/40/48
3 LC/UPC 24/36/40/48
4 LC/APC 24/36/40/48
5 FC/UPC 24/36/40/48
6 FC/APC 24/36/40/48
7 ST/UPC 24/36/40/48
8 E2000 24
9 E2000/APC 24
Polishing Film Options
Item Type Minimum Order Quantity
1 1U 100pcs
2 3U 100pcs
3 9U 100pcs
4 30U 100pcs
5 ADS 100pcs
Packaging & Services
Packaging Options
  • Export standard packaging
  • Carton box or wooden pallet options available
OEM/ODM Services
Custom branding available for cables, package bags, labels, or any visible component. Our OEM and ODM services can accommodate your specific branding requirements.
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
