LC SC FC ST DIN MU D4 50/125 Indoor Lime Fiber Optic OM5 Patch Cord Cable

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number LC-DX-OM5-2.0mm-xm-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Connector 1 LC Connector 2 LC, SC, FC, ST
Fiber 2 Fiber Insertion Loss 0.35dB
Return Loss 60dB Fiber Type Multimode OM5
Color Lime Green Cover PVC, LSZH
High Light

fiber optic pigtail cables


patch cord pigtail

Leave a Message
Product Description

LC Duplex OM5 MM 50/125 3D Fiber Optic Patch Cord 5G FTTA Patch Cable



Fiber optic patch cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends.
For the fiber patch cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.

OM5 wideband multimode fiber is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.

We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here. For most of them, the SC, ST, FC, LC, MU, MTRJ, E2000, APC/UPC connectors are all available, even we supply MPO/MTP fiber cables

Our PVC/LSZH Fiber Patch Cables are standard fiber optic cables terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends, such as LC-LC, LC-SC, LC-ST, SC-ST, SC-SC, ST-ST etc.

OM5 Fiber cable assembly:
- OM5 multimode 50/25 fiber cable assemblies, including LC, SC, ST, FC, E-2000, MPO, MTP connectors, from simplex, duplex to multi core break out cables.
Custom made OM5 cables with different length, cable jacket, connector types.
OM5 50/125 multimode fiber cables are designed for used in high efficiency data centers and interconnected buildings.
- The OM5 multi-mode fiber specifications follows the TIA-492AAAE in the ISO/IEC 11801 Edition 3 and the American National Standards Institute cabling standard ANSI/TIA-568.3-D as well as IEC 60793-2-10 edition 6.
- OM5 multimode fiber cable is fully compatible to previous multimode standards OM3 and OM4 yet the OM5 can achieve much higher speed with less fiber cores.
- OM5 uses the color Lime Green

LC SC FC ST DIN MU D4 50/125 Indoor Lime Fiber Optic OM5 Patch Cord Cable 0



Connector LC to LC or other
Fiber Type 50/125um, MM, OM5
Polish UPC to UPC
Fiber Type Duplex (simplex, multi-cores)
Insertion loss ≤0.2dB
Return loss ≥25dB
Operating Temperature -40~70°C
Polarity A(Tx) to B(Rx)
Jacket Outer Diameter 2.0mm/ 3.0mm
Jacket Color Lime Green
Wavelength 850/1300nm
Jacket Material PVC/LSZH
Cable Retention 90N
Minimum Bend Radius (mm) 10D (installed) - 20D (loaded)
Storage Temperature -45°C~85°C
Strength Member Aramid

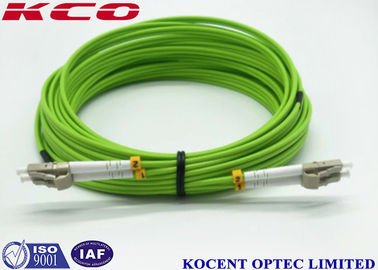

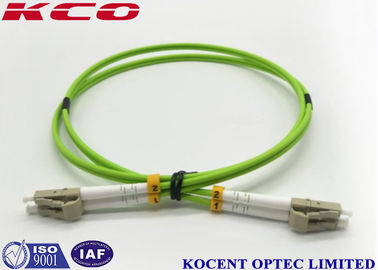

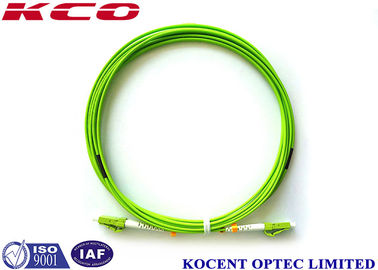

Product photos:


LC SC FC ST DIN MU D4 50/125 Indoor Lime Fiber Optic OM5 Patch Cord Cable 1

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

LC SC FC ST DIN MU D4 50/125 Indoor Lime Fiber Optic OM5 Patch Cord Cable 2
