Anti UV Fiber Optical Splice Closure Box Outdoor KCO-0416 Mechanical Sealing Structure

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-0416B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month
Product Details
Part Number KCO-0416B Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
High Light

optical termination box

,

fibre termination box

Leave a Message
Product Description





KCO-0416B 1*16 1*8 Fiber Optical Splitter Distrinution Terminal Enclosure Box ABS+PC







Descriptions:

KCO-0416B fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure.

It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

KCO-0416B Fiber Optic CTO Distribution Box Outdoor Water Proof 16 Cores fiber optic access termination box is designed to seal with screws and buckles.

The compact size and flip-over cover bring easy operation as well as complete function.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.



Features:

- Water-proof design with IP-65 Protection Level.

- Can be used indoor and outdoor, wall mount and pole mount

- Integrated with 4pcs flap-up splice cassette and adaptor holder

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 2 Pcs of 1*8 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- 16 outports for drop cable

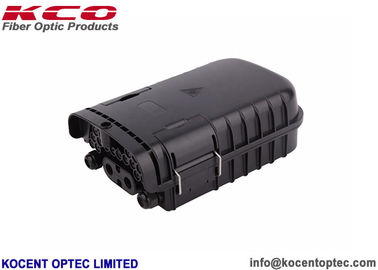

Product photo:



Anti UV Fiber Optical Splice Closure Box Outdoor KCO-0416 Mechanical Sealing Structure 0



Specification:
Model KCO-0416B
Material PC+ABS
Dimension 287*172*102mm
Cable Port

2 uncut port

2 reserved cable entrance

Cable Dimension

2 uncut port: 10-16.5mm;

2 reserved port: 8-16.5mm

Cable Outport 16 outputs for drop cable
Max. Capacity 24 Fibers
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray/Black/White
IP Grade IP65
Application Wall mount, pole mount
Weight 1.20kg


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-0416B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
1*24 LC/APC LC/APC


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Anti UV Fiber Optical Splice Closure Box Outdoor KCO-0416 Mechanical Sealing Structure 1



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
