Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications

  • Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications
  • Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications
  • Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications
  • Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-ADT-HW-SCA/U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-ADT-HW-SCA/U Application Outdoor
Protection Level IP67 Insertion Loss 0.2dB
Return Loss 55dB Cover Plastic
Color Black Connector SC Type (APC, UPC, PC)
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
Outdoor Fiber Optic Patch Cord Adapter Huawei Mini SC H Connector Patch Cable Assembly
Kocent Optec Limited is a leading manufacturer of outdoor field fiber optic patch cords, specializing in waterproof connectors including Fullaxs Connector, Military Connector, PDLC, and ODVA. With over 10 years of production experience, we supply standard telecom and broadcast television grade patch cords, all tested before shipment. We offer OEM and ODM services.
Key Features
  • Mini SC assemblies provide robust, sealed connections for FTTH applications
  • H connector end features SC/APC connection in a slim, sealed polymer housing
  • Compatible with standard adapters for FTTX applications
  • Superior weather resistance for outdoor use
  • Allows factory or field-terminated assemblies
  • Threaded coupling design with bend protection
  • 100% tested in controlled environments
  • Plug-and-play solutions reduce deployment costs
Product Images

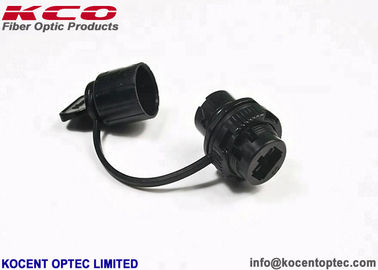

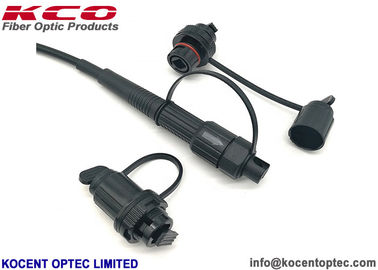

Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications 0 Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications 1
Technical Specifications
  • Connector types: LC/UPC, SC/UPC, FC/UPC, ST/UPC, LC/APC, SC/APC, FC/APC, ST/APC
  • Insertion Loss: ≤0.2dB / ≤0.3dB
  • Return Loss: ≥50dB / ≥60dB
  • Fiber types: Single-mode (G652D, G655, G657A1, G657A2, G657B3) / Multi-mode (OM1-OM5)
  • Operating wavelength: 1310nm, 1550nm, 850nm, 1490um
  • Test wavelength: 1310nm, 1550nm
  • Repeatability: ≤0.1dN
  • Interchangeability: ≤0.2dB
  • Durability: ≤0.2dB
  • Temperature range: -40°C to +85°C (operating and storage)
Additional Features
  • Compliant with IEC and Telcordia-GR-326-Core standards
  • Multiple size and color boot options
  • Low insertion loss and high return loss
  • 100% interferometer measurement
Applications
  • Telecommunication networks
  • Local area networks
  • CATV systems
  • Active device termination
  • Data center networks
  • PON systems
  • Military applications
Patch Cord Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC, NSN, Ericsson, Huawei
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss (dB) ≤0.3dB (PC/UPC/APC)
≤0.3dB (UPC)
Return Loss (dB) ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤0.2dB
Cable Assemblies Pigtail, Simplex, Duplex, Fan-out Patch cord, Branch out patch cord
Operating Temperature -14°C to +85°C
Storage Temperature -40°C to +85°C
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and more. Our OEM and ODM services are available to meet your specific requirements.

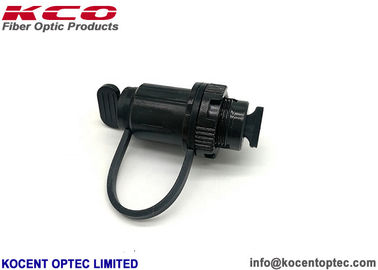

Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications 2
Packaging & Shipping
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets. Shipping methods available:
  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight
Outdoor IP67 Fiber Optic Patch Cord with 0.2dB Insertion Loss and 55dB Return Loss for FTTA Applications 3
