Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0308D
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0308D Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 12 Fibers Fo
High Light

fibre termination box

,

outdoor terminal box

Leave a Message
Product Description



8 Port Optical Fiber NAP Box FDB OTB Outdoor Termination Box LGX 1*8 SC/APC Splitter Box



Description:

- KCO-NAP-0308D outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit.

- Meanwhile, it provides solid protection and management for the FTTx network building.

- Mechanical Seal:Good Sealing Performance, Easy Installation, Repeat Installation
- Installation Style: Indoor and outdoor Wall-mounting, Pole-mounting



Features:

- Water-proof design with IP65 Protection level

- Integrated with flap-up splice trays

- Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts

- Easy for maintenance and expansion, neat cabling.

- Fiber bend radius control more than 40mm.

1x8 PLC Splitter can be installed in each splice tray as option.

- 8 pcs of mechanical ports for 3-7mm drop cable.

- 3 cable entrance(10-16.5mm) for uncut cable.



Technical Data:

Model KCO-NAP-0308D
Material PC+ABS / ABS
Size 252*210*72mm
PLC 1pcs 1x8 steel tube PLC Splitter / 1*8 LGX box type splitter
Adapter 8pcs SC/UPC or SC/APC Adapters
Color Gray/Black
Net. Weight 1.15kg
Work Temperature -40 ~ +75degree
Max Capacity Splice 12 Fibers (1 trays,12fiber/tray)
Relative Humidity 85% (+30 degree)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss 0.2dB
UPC Return Loss 50dB
APC Return Loss 60dB
Insert and Pull out Life 1000 times
Insulation The grounding device is insulated with the Termination box, IR 1000m Ω/500V (direct current)
Withstand Voltage

Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U 3000V (direct current)



Usage:

- Wall mounting installation,

- Pole mounting installation,

- FTTH pre-installation,

- Filed installation,

- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.



Product photo:

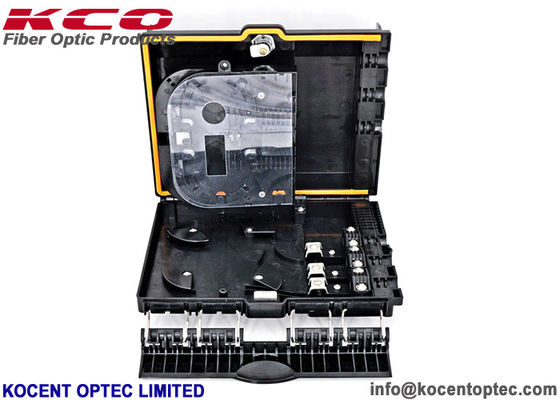

Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation 0

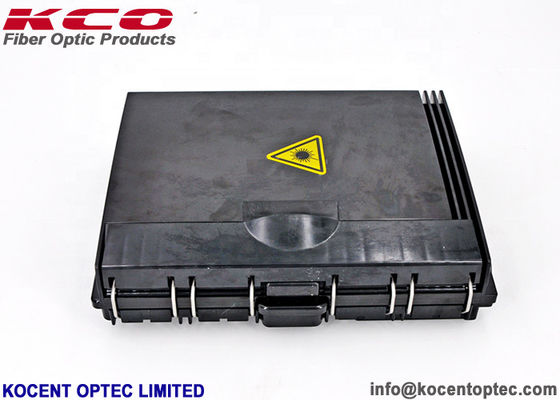

Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation 1

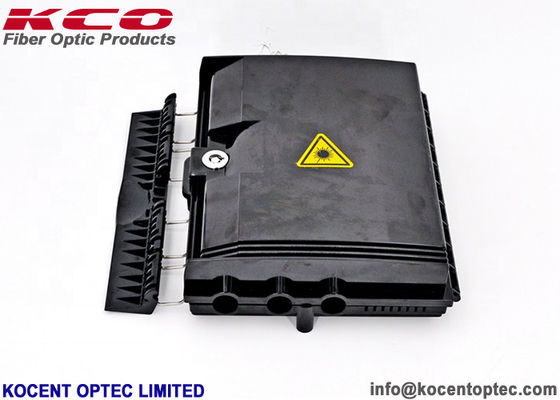

Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation 2


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0308D 12 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC
1*8 FC/APC FC/APC
... ST/UPC ST/UPC
  LC/UPC LC/UPC
  ... ...


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.







Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
