IP65 Outdoor Fiber Optic Cable Termination Box ODP FDB ODF NAP CTO KCO-FDB-0424D

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FAT-24W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-FAT-24W
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor IP65 Capacity 24 Ports SC Simplex Or 24 Ports LC Duplex
High Light

fibre termination box

,

outdoor terminal box

Leave a Message
Product Description



KCO-FDB-0424D Outdoor Fiber Optic Distribution Termination Box ODP FDB ODF NAP CTO Box



Descriptions:
- KCO-FDB-0424D fiber optic distribution box is able to hold up to 24 subscribers.It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

KCO-FDB-0424D fiber optic distribution box is used for outdoor application, it can be wallmount or pole mount.

- Its waterproof class can meet IP65.

- KCO-FDB-0424D series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:

   Black: KCO-FDB-0424DB

   White: KCO-FDB-0424DW

   Grey: KCO-FDB-0424DG

- KCO-FDB-0424D is able to hold up to 24 subscribers.

- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Feature:

- 1*16 splitter can be installed as an option

- Efficient cable management

- 24 ports for drop cable outports

- Waterproof design with IP-65 protection level.

- Integrated with splice cassette and cable management rods

- Manage fibers in a reasonable fiber radius cnodition

- Easy to maintain and extend the capacity

- Fiber bend radius control more than 40mm

- Suitable for the fusion splice or mechanical splice





Quick Information:

Material Size Max Capacity Installation size Weight Color
PC+ABS 320*240*100mm SC 24ports

Box PLC

1X16(SC)

Tube PLC

1X8(SC)

206*274mm 1.5kg Light Grey



Function:

- P/N: KCO-FDB-0424D

- Material:

     ABS

     ABS+PC

- Long life time: about 20 years

- Can accommodate 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitter.

- Rainfall resistant, IP65 outdoor using.

- Can load 24pcs LC, FC, ST, SC, E2000 … adapters.

- Installation:

     Wall mounting

     Pole mounting

- The cover with 2 reinforcing closing pieces, easy to open and close.

- 02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;

- 24pcs exit ports for FTTH drop cable.



Products photos:

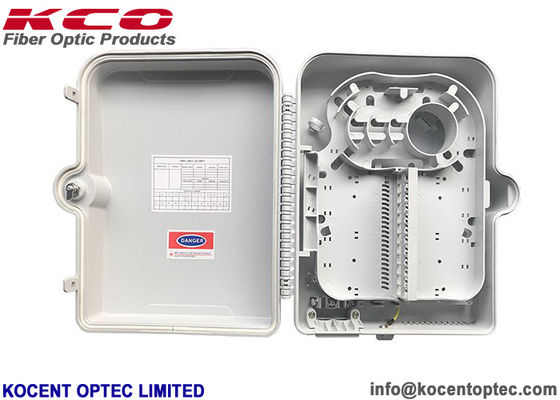

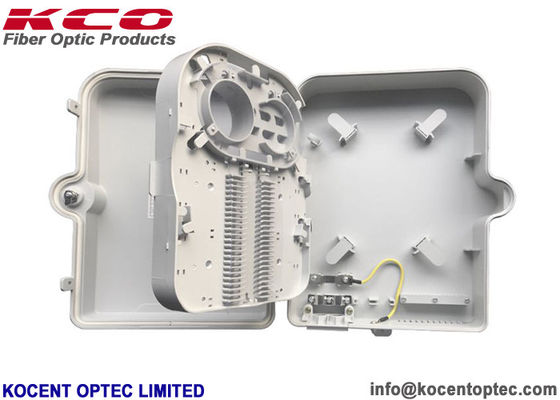

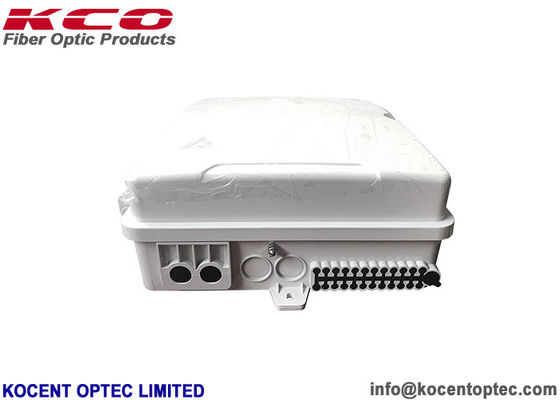

IP65 Outdoor Fiber Optic Cable Termination Box ODP FDB ODF NAP CTO KCO-FDB-0424D 0

IP65 Outdoor Fiber Optic Cable Termination Box ODP FDB ODF NAP CTO KCO-FDB-0424D 1
IP65 Outdoor Fiber Optic Cable Termination Box ODP FDB ODF NAP CTO KCO-FDB-0424D 2
IP65 Outdoor Fiber Optic Cable Termination Box ODP FDB ODF NAP CTO KCO-FDB-0424D 3







Specifications:

Model KCO-FDB-0424D
Material PC+ABS or ABS
Dimension 320*240*100mm
Cable Entry 2 cable entrance: 10-16.5mm
Drop cable port 24 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
Max. Capacity 24 Fibers, 1 tray x 12F
Adapter Max. 24pcs SC simplex (LC, FC, E2000,... optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x24 Splitter
Color Gray, White or Black
IP Grade IP65
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method
(in overstriking)
Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet
