LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance

  • LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance
  • LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance
  • LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance
  • LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x2-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 0.3m
Splitter Type 1*2 1x2 Split Way 1 Way Input & 2 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-LGX-1x2-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
1x2 LGX Type Fiber Optical Splitter 1*2 SC/APC Connector For FTTH FTTA Distribution Box

SC APC 1*2 PLC Splitter / 1x2 LGX Type Fiber Optic Splitter designed for FTTH FTTA Distribution Box applications. This planar lightwave circuit splitter (PLC Splitter) is fabricated using silica optical waveguide technology, offering compact size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity.

Key Advantages
  • Standard LGX metal box housing for plug-and-play network integration
  • Eliminates need for field splicing machines or specialized installation personnel
  • Widely used in PON (EPON/GPON) networks for optical signal power splitting
  • Distributes optical signals from Central Office (CO) to multiple premise locations
Product Features
  • Low insertion loss and polarization dependent loss
  • Excellent environmental and mechanical stability
  • Low excess loss with high performance
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Applications
  • Fiber to The Point (FTTX) and Fiber to The Home (FTTH)
  • Passive Optical Networks (PON) and Gigabit PON (GPON)
  • Local Area Networks (LAN) and Cable Television (CATV)
  • Test equipment and various optical network applications
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration Insertion Loss(dB) Typical Insertion Loss (dB) Max Loss Uniformity (dB)
1x2 3.6 4.0 0.6
1x4 7.1 7.3 0.6
1x8 10.2 10.5 0.8
1x16 13.5 13.7 1.2
1x32 16.5 16.9 1.5
1x64 20.5 21.0 2
Product Images

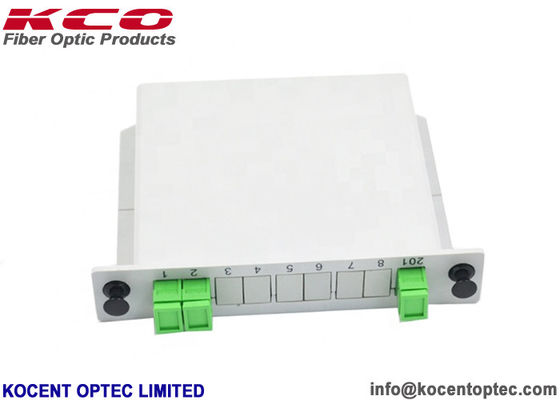

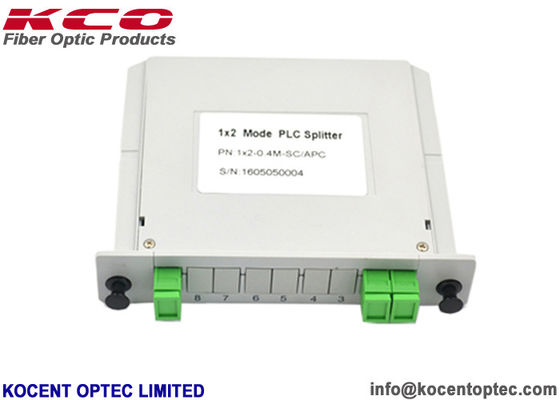

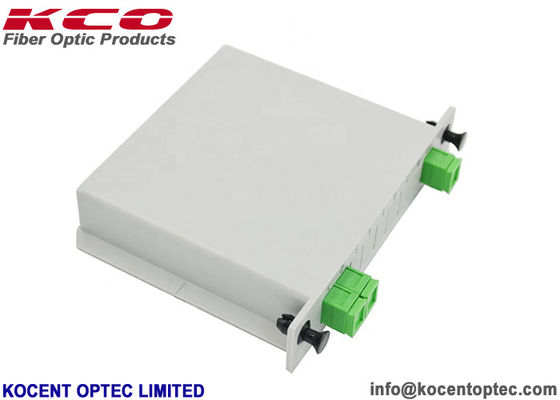

LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 0 LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 1 LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 2 LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 3 LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 4 LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 5
Related Products
LGX Type 1x2 Fiber Optic Splitter with SC/APC Connector for FTTH FTTA Featuring Low Insertion Loss and Telcordia GR-1221 GR-1209 Compliance 6
OEM/ODM Service

We offer custom branding services for your products including cables, packaging, labels, and more. Contact our sales team for personalized support.

Packaging & Shipping
  • Standard export packing: Carton box, wooden box, or wooden pallet
  • Shipping options: International express (UPS, TNT, DHL), air freight, or sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
