Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box

  • Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box
  • Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box
  • Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x4-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 0.3m
Splitter Type 1*4 1x4 Split Way 1 Way Input & 4 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-LGX-1x4-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Small Size 1×4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box
Product Description
SC APC 1×4 Fiber Splitter / 1x4 PLC Splitter LGX Type designed for Terminal ODF ODB Box applications. Kocent Optec Limited supplies a full series of fiber optic PLC Splitters including mini tube type, ABS Box modular Type, LGX box type, Rackmount type, and Wall mount type.
Quality Assurance
With over 10 years of experience in passive fiber optic production and a closed QC process, we guarantee 100% tested products before shipment. Our complete series of 1×N and 2×N splitters are tailored for specific applications, meeting Telcordia 1209 and 1221 reliability requirements with TLC certification.
Product Introduction
The Planar Lightwave Circuit Splitter (PLC Splitter) is an optical power management device fabricated using silica optical waveguide technology. It features compact size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity. Widely used in PON (EPON/GPON) networks for optical signal power splitting.
Key Features
  • Ultra-low insertion loss and polarization-dependent loss
  • Excellent spectral uniformity
  • Broad wavelength bandwidth
  • Wide operating temperature range
  • High reliability
  • Compact design
  • Plug-and-play LGX metal box housing
  • Eliminates need for field splicing
Applications
  • Metro networks
  • Fiber optic systems
  • FTTX/FTTH deployments
  • Passive Optical Networks (PON)
  • Gigabit PON (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test equipment
Product Image

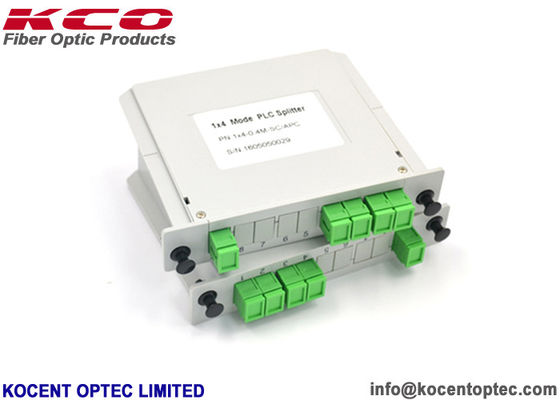

Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box 0
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260-1650
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Related Products

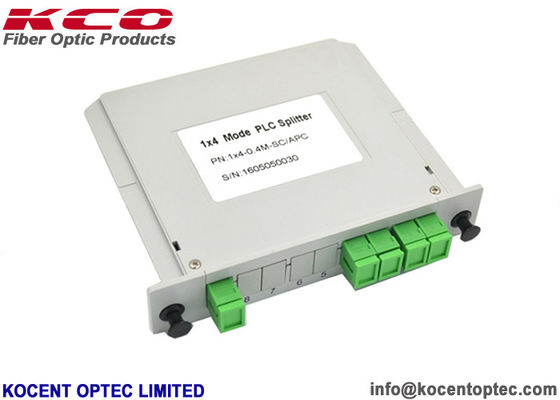

Small Size 0.3m Length 1x4 Fiber Optic Splitter with SC/APC Connector for Terminal ODF ODB Box 1
OEM/ODM Services
We offer custom branding services for your logo on cables, packaging, labels, or any visible surface. Contact our sales team for personalized support.
Packaging & Shipping
Standard export packing options include carton boxes, wooden boxes, and pallets. Shipping methods available:
  • International express (UPS, TNT, DHL)
  • International air freight
  • Ocean freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
