Small Size 1*4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box

  • Small Size 1*4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box
  • Small Size 1*4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x4-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 0.3m
Splitter Type 1*4 1x4 Split Way 1 Way Input & 4 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-LGX-1x4-SCA MOQ 1pc
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



SC APC 1*4 Fiber Splitter / 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box



Descriptions:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: mini tube type, ABS Box modular Type, LGX box type, Rackmount type, Wall mount type, ....

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.



Introdution:

- Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity.

- It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.

- Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.

- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

- LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.



Features:

- Ultra-end insertion loss and associated loss of polarization
- Good spectral uniformity
- Wide wavelength bandwidth
- Wide range of working environment
- High reliability
- Compact Size



Applications:

- Metro

- Fiber optic systerm

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.

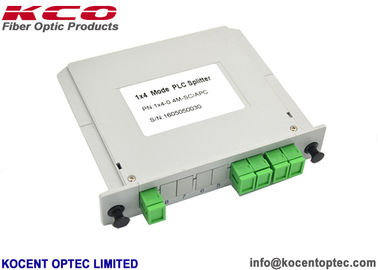

Product photo:





Small Size 1*4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box 0







Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

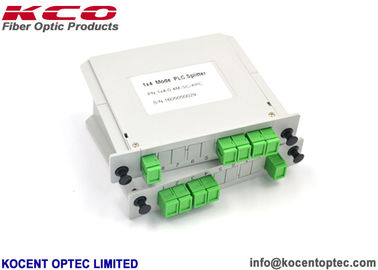

Relation products:



Small Size 1*4 Fiber Optic Splitter 1x4 PLC Splitter LGX Type For Terminal ODF ODB Box 1





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
