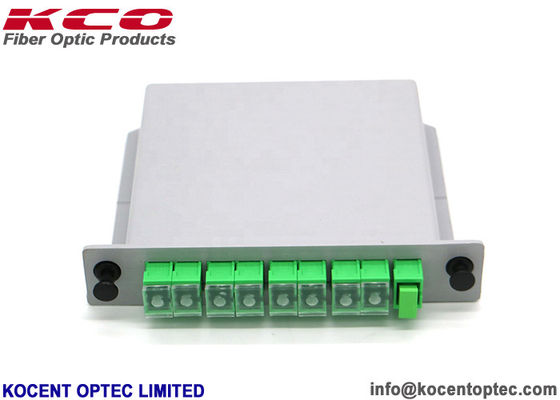

Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box

  • Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box
  • Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box
  • Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box
  • Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x8-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 0.3m
Splitter Type 1*8 1x8 Split Way 1 Way Input & 8 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-LGX-1x8-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Green 1×8 Fiber Optic Splitter 1x8 LGX PLC Splitter For Rack Mountable Terminal Box
Product Description
SC APC Green 1×8 Optical Splitter / 1x8 Fiber PLC Splitter LGX Rack Mountable Box
Introduction
  • Planar optical waveguide Splitter (PLC Splitter) is a planar optical waveguide integrated optical device based on planar optical waveguide technology.
  • Distributes light power within the wavelength range of 1260nm ~ 1650nm, covering EPON technology wavelengths (1310nm, 1490nm, 1550nm).
  • Direct installation in built-in boxes (splitter box, fiber optic cable transfer box, ODF frame) with guide fiber device compatibility.
  • Core raw materials imported from mainstream suppliers ensure performance and reliability.
  • Standard LGX metal box housing enables plug-and-play network integration, eliminating installation risks.
  • No field splicing machines or skilled personnel required for deployment.
Key Features
  • Ultra-low insertion loss and polarization-dependent loss
  • Excellent spectral uniformity
  • Wide wavelength bandwidth
  • Broad operating temperature range
  • High reliability
  • Compact design

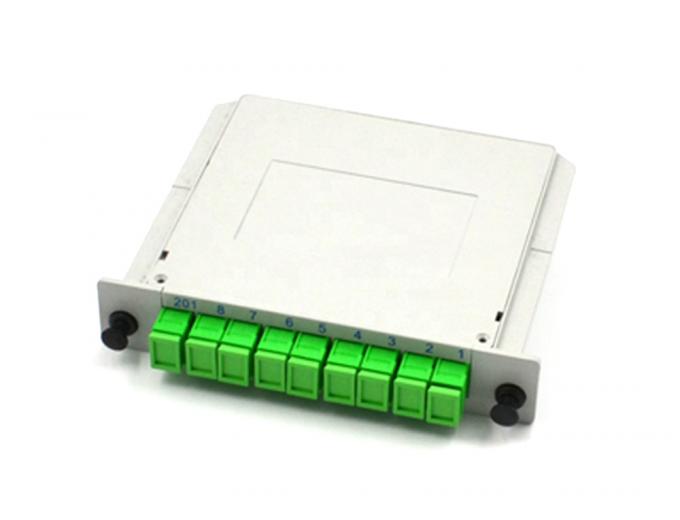

Green 1×8 Fiber Optic PLC Splitter in LGX Rack Mountable Box
Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40 ~ +85
Storage Temperature(°C) -40 ~ +85
Performance Characteristics
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Applications
  • FTTX Systems
  • G/EPON Networks
  • CATV
  • Optical Signal Distribution
  • Fiber Optic System
  • Fiber Optic Test
Quality Assurance
All products meet Telcordia 1209 and 1221 reliability requirements and are TLC certified for network development requirements.
OEM/ODM Service
Custom branding available on products, packaging, and labels. Contact our sales team for OEM/ODM support.
Packing & Shipping
  • Standard export packing (carton box, wooden box, wooden pallet)
  • International express (UPS, TNT, DHL), air freight, or sea shipping
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai

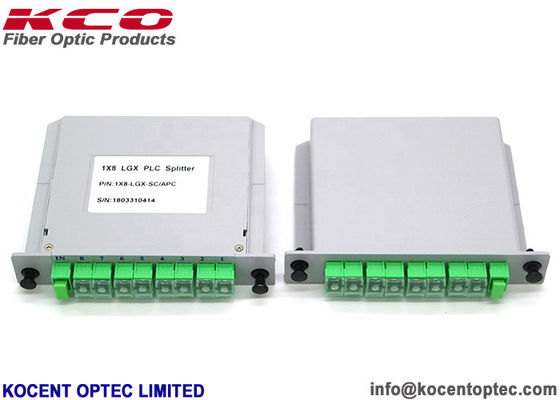

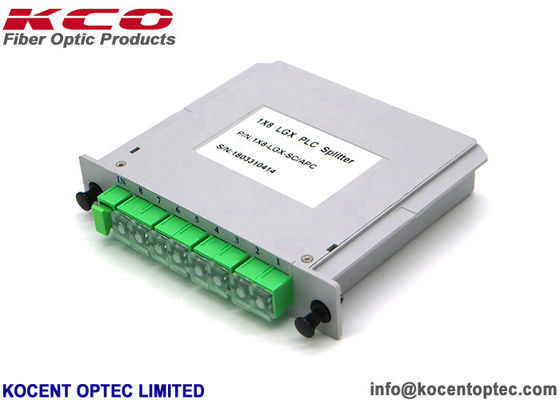

Rack Mountable Corrosion Resistant Fiber Optic Splitter with Wide Wavelength Bandwidth and LGX Box 1
