0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss

  • 0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss
  • 0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss
  • 0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-2.0-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 1.0m Split Way 1 Way Input & 8 Way Output
Connector SC/APC Cable 0.9mm/ 2.0mm/ 3.0mm
P/N KCO-ABS-1x8-2.0-SCA MOQ 1pc
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



1*8 Fiber Optic PLC Splitter 1x8 ABS Box Modular Splitter 0.9mm 2.0mm 3.0mm



Descriptions:

- A fiber optic splitter is a device that splits the fiber optic light into several parts by a certain ratio. For example, when a beam of fiber optic light transmitted from a 1X4 equal ratio splitter, it will be divided into 4-fiber optic light by equal ratio that is each beam is 1/4 or 25% of the original source one.

- A fiber optic splitter is different from WDM. WDM can divide the different wavelength fiber optic light into different channels. fiber optic splitter divide the light power and send it to different channels.

- Most fiber optic splitters available in 900µm loose tube and 250µm bare fiber.

- 1x2 and 2x2 fiber optic splitters come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components



Features:

- Low insertion loss
- Low PDL
- High return loss
- Uniform power splitting
- Compact design
- Wide operating wavelength
- Wide operating temperature
- Excellent environmental &mechanical stability
- Qualified under telcordia GR-1221 and GR-1209​

- Compact Size

- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃​

- Adopt 100% new raw material, ROHS compliance



Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.



Applications:
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- Local area networks (LAN)
- CATV systems
- Test equipments



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Product photos:

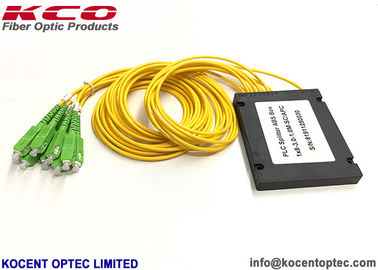

0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss 0





Relation products:

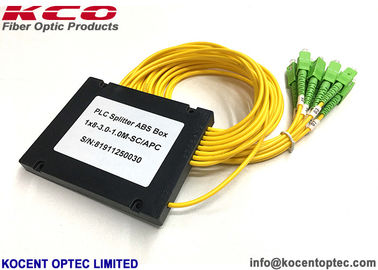

0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

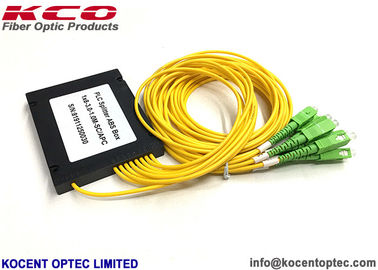

0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
