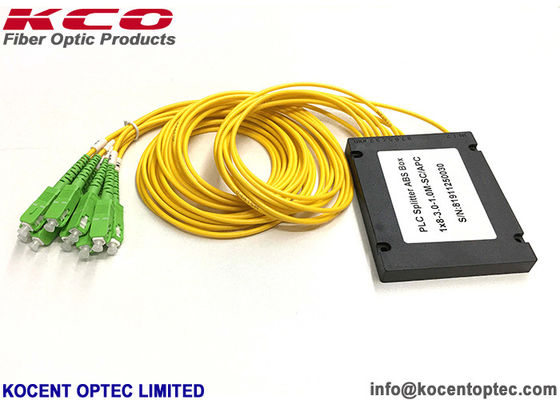

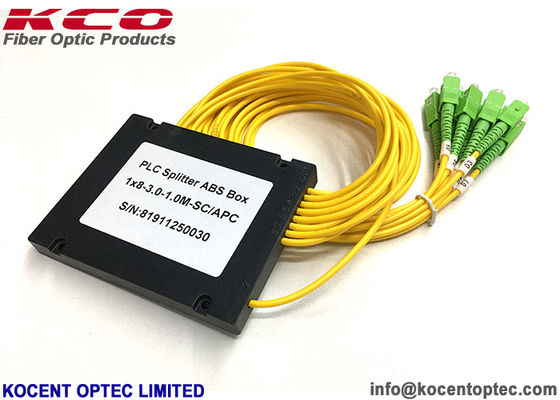

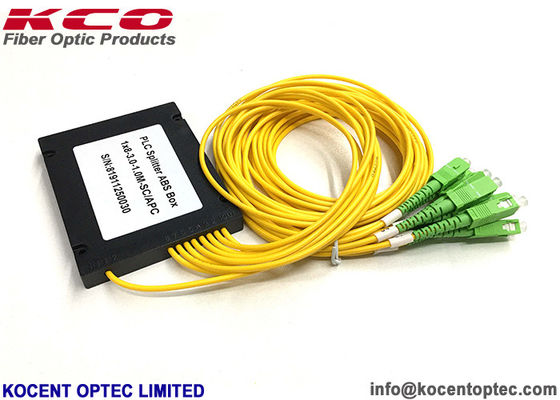

0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss

  • 0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss
  • 0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss
  • 0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss
  • 0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-2.0-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 1.0m Split Way 1 Way Input & 8 Way Output
Connector SC/APC Cable 0.9mm/ 2.0mm/ 3.0mm
P/N KCO-ABS-1x8-2.0-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
1×8 Fiber Optic PLC Splitter (ABS Box Modular Type)
Product Overview

This fiber optic splitter efficiently divides optical signals into multiple channels with precise ratio control. The 1×8 configuration splits input light into eight equal output paths, each receiving 12.5% of the original signal power. Available in 0.9mm, 2.0mm, and 3.0mm fiber options with ABS box modular housing for optimal protection.

Key Features
  • Low insertion loss for minimal signal degradation
  • High return loss and polarization-dependent loss (PDL)
  • Uniform power distribution across all output channels
  • Compact, durable ABS enclosure design
  • Broad operating wavelength range: 1260nm to 1650nm
  • Wide temperature tolerance: -40℃ to +85℃
  • Excellent mechanical and environmental stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
  • ROHS compliant materials
Technical Specifications
Parameter Value
Fiber Length 1m (custom lengths available)
Fiber Type Corning SMF-28e, G657A1, or customized
Directivity ≥55dB
Return Loss ≥55dB (50dB minimum)
Power Handling 300mW
Performance Characteristics
Port Configuration 1×8
Insertion Loss (Typical) 10.2dB
Insertion Loss (Maximum) 10.5dB
Loss Uniformity 0.8dB
PDL 0.2dB
Wavelength Dependent Loss 0.3dB
Temperature Dependent Loss 0.4dB
Applications
  • FTTx networks (FTTB, FTTH, FTTC)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
  • CATV distribution systems
  • Test and measurement equipment
Product Images

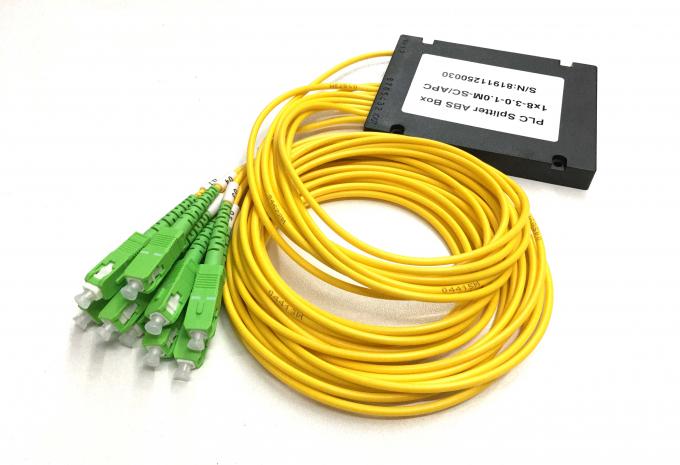

1×8 Fiber Optic PLC Splitter in ABS Box Module
Related Products
0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss 1
Customization Services

We offer comprehensive OEM/ODM services including custom branding on products, packaging, and labels. Our sales team can provide tailored solutions to meet your specific requirements.

0.9mm 2.0mm 3.0mm Fiber Optic Splitter PLC Splitter with 1x8 Configuration and Low Insertion Loss 2
Shipping & Packaging

Standard export packaging options include:

  • Carton boxes
  • Wooden crates
  • Wooden pallets

Available shipping methods: International express (DHL, UPS, TNT), air freight, and sea transport from major Chinese ports including Shenzhen, Hong Kong, and Shanghai.
