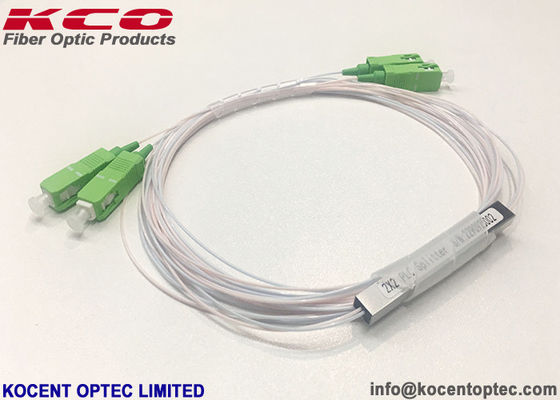

2x2 Fiber Optic Splitter with 900um Cable and 1.5m Length for Reliable Optical Signal Distribution
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-Mini-2*2-SCA |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 2~5 days |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package Type | Mini Blockless Tube Type | Length | 1.0m |
|---|---|---|---|
| Splitter Type | 2*2 2x2 | Split Way | 2 Way Input & 2 Way Output |
| Cable | 0.9mm | MOQ | 1pc |
| Highlight | PLC Optical Splitter,ABS Box PLC Splitter |
||
Product Description
LSZH Jacket Fiber Optic Splitter, 2x2 Optical Fiber Splitter 900um 1.5m Length
Product Overview
Blockless 2x2 Fiber Optic PLC Splitter with SC/APC or LC/APC Green Connector, 900µm, 1.5m LSZH jacket. This PLC (Planar Lightwave Circuit) splitter is an optical power management device fabricated using silica optical waveguide technology for distributing optical signals from Central Office (CO) to multiple premise locations.
Technology
Based on semiconductor technology, PLC splitters are manufactured using planar waveguide circuit technology. The design consists of one optical PLC chip and several optical arrays depending on the output ratio, coupled on both ends of the PLC splitter chip.
Construction
Key Features
- 2x2 blockless PLC Splitter with SC/APC or LC/APC connectors
- 900µm G.657A1 or G652D fiber input/output
- Low insertion loss and polarization dependent loss (PDL)
- Operating bandwidth: 1260 ~ 1650nm
- Compact design for easy installation in optical equipment
- Wide operating temperature range: -40°C to 85°C
- High reliability and stability, compliant with Telecordia GR-1221/1209
Applications
- FTTx networks (FTTA, FTTH, FTTC, FTTB, FTTO)
- EPON and GPON systems
- LAN and WAN networks
- Metro networks
- Fiber optic testing
Technical Specifications
| Parameter | Value |
|---|---|
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40 ~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
Performance Specifications
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
|---|---|---|---|---|---|---|
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |

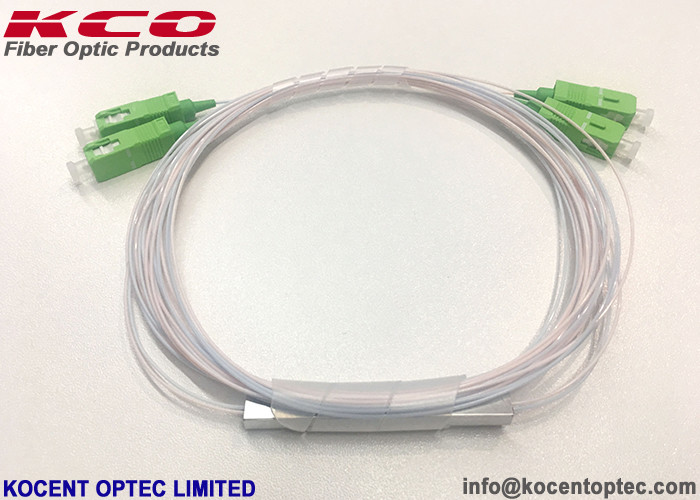

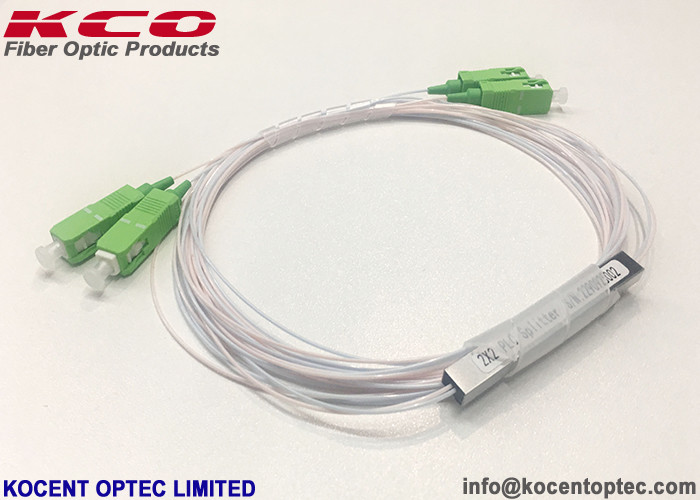

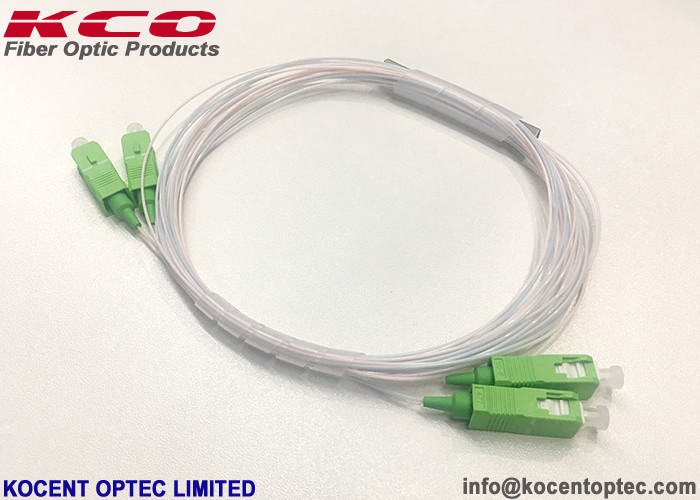

Product Images
OEM/ODM Services
We offer custom branding options for your goods including cables, packaging, labels, and more. Contact our sales team for personalized support.
Packaging & Shipping
- Standard export packing: carton box, wooden box, or wooden pallet
- Shipping options: International express (UPS, TNT, DHL), air freight, or sea freight
- Standard export ports: Shenzhen, Hongkong, Ningbo
- Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
