Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance

  • Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance
  • Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance
  • Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance
  • Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Mini-2*4-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Blockless Tube Type Splitter Type 2*4 2x4
Split Way 2 Way Input & 4 Way Output Connector SC/APC, LC/APC
P/N KCO-Mini-2*4-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL
Product Description

Mini Blockless 2x4 Optic PLC Splitter with SC/APC Green Connector, 0.9mm diameter, 2.0m length. This fiber optic PLC splitter is available in various configurations including 1xN and 2xN variants (1x4, 1x8, 1x16, 2x32, 2x64, etc.) to accommodate different installation requirements based on subscriber conditions or cable length.

Technology Overview

The PLC (Planar Lightwave Circuit) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. The blockless design offers an optimal balance between miniaturization and fiber protection.

Key Features
  • Suitable for multiple operating wavelengths (1260nm – 1650nm)
  • Equal splitter ratios for all branches
  • Compact configuration with minimal space requirements
  • Excellent stability across all split ratios
  • High reliability exceeding Telcordia requirements
  • Based on Plasma Chemical Vapor Deposition (P-CVD) technology
PLC Splitter Construction
Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance 0
Applications
  • FTTx networks (FTTA, FTTH, FTTC, FTTB, FTTO)
  • EPON and GPON systems
  • Local and Wide Area Networks (LAN/WAN)
  • Metropolitan networks
  • Fiber optic testing
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5

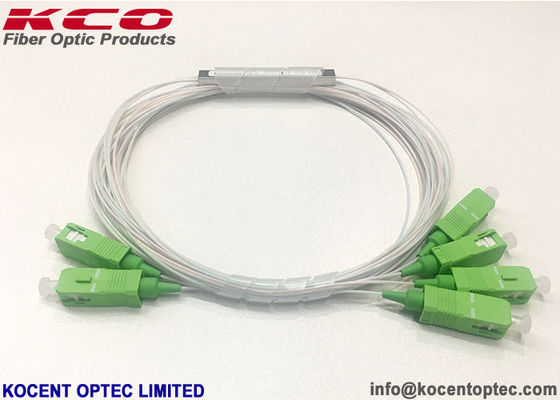

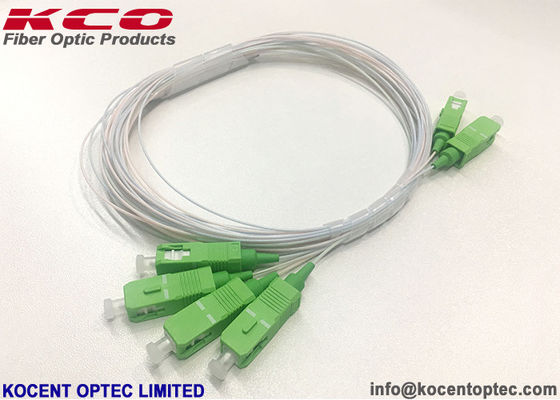

Product Images
Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance 1 Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance 2
OEM/ODM Services

We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for personalized OEM/ODM solutions.

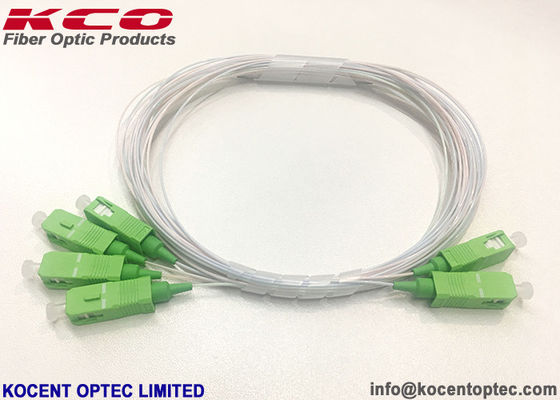

Blockless 2x4 Fiber Optic Splitter with 0.9mm Green Connector and 2.0m Low IL for High Performance 3
Packaging & Shipping
  • Standard export packaging (carton box, wooden box, wooden pallet)
  • Shipping options: International express (UPS, TNT, DHL), air freight, or sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
