8fo 12fo 24fo 3.0mm OS1 OS2 MPO MTP Patch Cord LSZH MPO Fiber Patch Cord

  • 8fo 12fo 24fo 3.0mm OS1 OS2 MPO MTP Patch Cord LSZH MPO Fiber Patch Cord
  • 8fo 12fo 24fo 3.0mm OS1 OS2 MPO MTP Patch Cord LSZH MPO Fiber Patch Cord
  • 8fo 12fo 24fo 3.0mm OS1 OS2 MPO MTP Patch Cord LSZH MPO Fiber Patch Cord
  • 8fo 12fo 24fo 3.0mm OS1 OS2 MPO MTP Patch Cord LSZH MPO Fiber Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO/F-LC/UPC-G652D-xm-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Product Name MPO Fiber Optic Trunk Patch Cord Connector MPO
Fiber SM, MM, OM1, OM2, OM3, OM4, OM5 Cover PVC, LSZH
Insertion Loss 0.2dB Length 1, 3, 5, 7, 10, 15, 20, ...
Core 9/125 Fiber Count 8fibers, 12 Fibers, 24 Fibers
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Description

The MPO series offers a comprehensive solution from trunk cables to extended trunk cables, hybrid trunk cables, cassette modules, MPO adapter panels, direct patch panels, and patch panels in both G class (normal loss) and L class (super low loss) MPO classifications.

The MT Series Solution includes MTP/MPO Patch Cords, MTP/MPO Harness Cables, and MTP/MPO Trunk Cables.

We provide a full line of high-performance MTP/MPO fiber cable assemblies designed for high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunication systems. Based on single ferrule MT technology, our MTP/MPO fiber cable assemblies support up to 24 fiber core connections in a single ferrule.

Standards: All components and final products are designed and tested to conform to the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Bellcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901, and EIA/TIA 455.

Manufacturer Introduction
  • Kocent Optec Limited is a leading company in developing and manufacturing advanced MPO/MTP fiber optic patch cords.
  • OEM service is available for all new and existing customers.
  • Huge stock of connector housings and cables to satisfy quick delivery requests.
Key Features
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key and corrosion-resistant body
  • UL-rated plastic housing
  • Boots available in a variety of colors
  • Telcordia style boots
  • Available in OM1, OM3, OM4, and SM OS2 fiber types
  • Available in 12, 24, 36, 48, 72, 96, 144, or custom fiber counts
  • All patch cords are pre-labeled and individually bagged
  • Custom configurations available upon request
  • RoHS compliant — Riser, Plenum, and LSZH rated cables available
Applications
  • CATV
  • Metro networks
  • Test equipment
  • Premise installations
  • Active device termination
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Wide Area Networks (WANs)
  • FTTx (FTTH, FTTO, FTTB, FTTA, etc.)
Product Photos

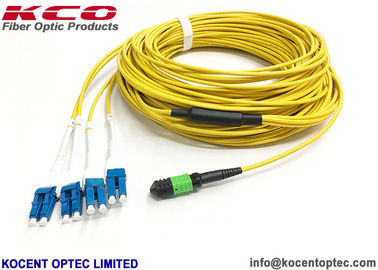

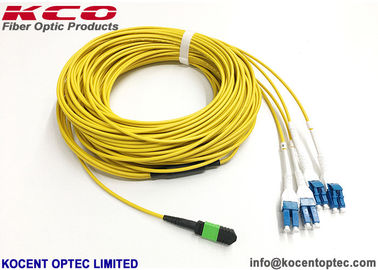

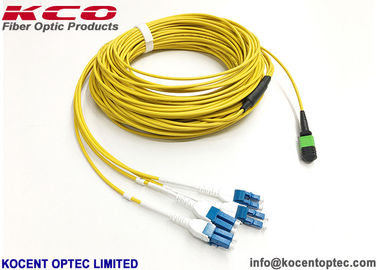

LC Super Boot MTP MPO optical patch cord with fanout and 3.0mm cable
Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24, etc. 8, 12, 24, etc. 8, 12, 24, etc.
Fiber Type G652D, G657A1, etc. G652D, G657A1, etc. OM1, OM2, OM3, etc.
Maximum Insertion Loss Elite Low Loss Standard Low Loss Elite Low Loss Standard Low Loss Elite Low Loss Standard Low Loss
≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm
Polarity Type
MTP MPO polarity type diagram showing key-up and key-down configurations
Related Products
Related MTP MPO fiber optic cable assemblies and accessories
OEM/ODM Service

If you want to show your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

OEM custom branded fiber optic cable packaging example Custom logo printing on fiber optic patch cord label OEM branded fiber optic cable bag packaging Custom branded MTP MPO patch cord with logo on connector boot
Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
