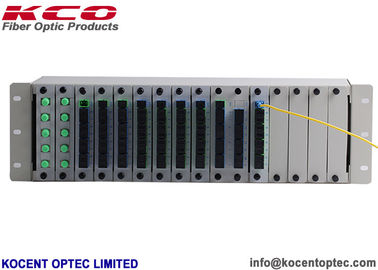

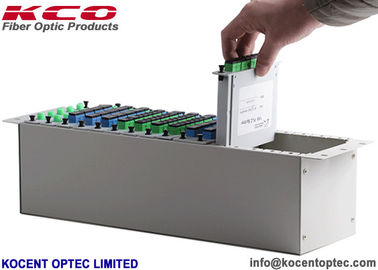

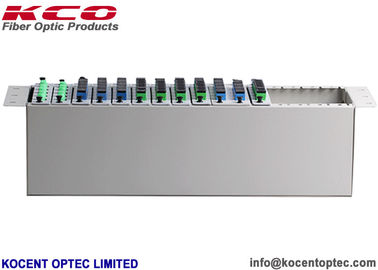

3U 4U PLC Fiber Optic Splitter with 2 Way Input & 16 Way Output and Steel Tape Construction for High-Density Optical Distribution
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-3U-LGX-Splitter-x |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 5~8 days |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Tape/ Aluminum Alloy | High | 3U |
|---|---|---|---|
| Splitter Type | Mini Tube Type | Split Way | 2 Way Input & 16 Way Output |
| Connector | LC/APC. SC/APC | Cable | 0.9mm |
| Highlight | PLC Optical Splitter,ABS Box PLC Splitter |
||
Product Description

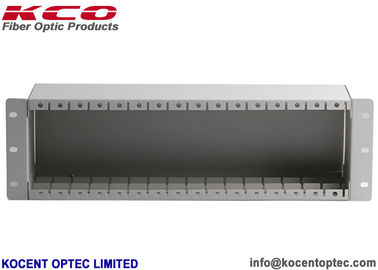

ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame for PLC
This high-capacity, high-density fiber distribution frame is designed for composition and distribution of fibers in optical access networks. The 19" rack-mounted patch panel allows fiber optic lines connection, distribution, and scheduling, with space for fiber optic splitters inside.
Key Features
- Low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical Stability
- Compliant with Telcordia GR-1221 and GR-1209 standards
- Compact design saves cabinet space
- Standard 19" rack mount type chassis
- Customizable material and paint color options
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
Performance Specifications
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
|---|---|---|---|---|---|---|
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Packing Information
- 1pc/small carton box/ 45*15*14cm/1.85kg
- Full loaded 1*4 PLC Splitter: 3.3kg
- Full loaded 1*8 PLC Splitter: 3.5kg
- 8pcs/carton box/ 46*30*59cm/16kg
Shipping Options
Available via international express (UPS, TNT, DHL), air freight, or sea shipping from major Chinese ports including Shenzhen, Hongkong, Ningbo, and airports in Shenzhen, Hongkong, Hangzhou, and Shanghai.
OEM/ODM Services
Custom branding options available for all products including cable, packaging, and labels. Free logo printing for orders over 100 pieces. Contact our sales team for customized solutions.
