1.0m Single Mode ABS Modular PLC Splitter for LAN Applications

  • 1.0m Single Mode ABS Modular PLC Splitter for LAN Applications
  • 1.0m Single Mode ABS Modular PLC Splitter for LAN Applications
  • 1.0m Single Mode ABS Modular PLC Splitter for LAN Applications
  • 1.0m Single Mode ABS Modular PLC Splitter for LAN Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-3.0-1.0M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*16 1x16 Connector SC/APC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-2.0-1.5M-SCA
Highlight

1x8 PLC Splitter

,

LSZH Optical Fiber Splitter
Leave a Message
Product Description
ABS Modular Single Mode SC/APC 1x8 Fiber Optic PLC Splitter

This 1x8 ABS Modular Single Mode Passive Fiber Optic PLC Splitter features SC/APC connectors, 3.0mm diameter, 1.0m length, and LSZH G657A1 fiber. It provides reliable optical signal distribution for various network applications.

Product Overview

A fiber optic splitter is a passive optical device that splits an incident light beam into multiple beams. The PLC (Planar Waveguide Circuit) splitter uniformly divides optical signals, making it ideal for PON architectures including EPON, GPON, BPON, and FTTX systems.

Kocent Optec Limited offers a complete series of fiber optic PLC splitters with over 10 years of manufacturing experience. All products undergo rigorous QC testing before shipment.

Key Features
  • FTTX Deployment
  • FTTH Network compatibility
  • LAN and CATV System integration
  • Optical Signal Distribution
  • Passive Optical Network (PON) ready
  • DWDM and CWDM System support
  • Data Communications applications
  • Fiber optic testing capabilities
Applications
  • Central office installations
  • Distribution points (outdoor/indoor)
  • FTTx systems
  • Traditional optical networks
  • Network monitoring solutions
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Product Images

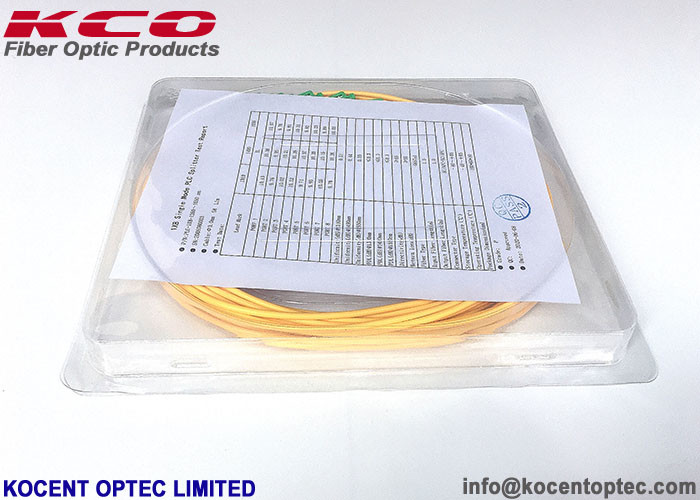

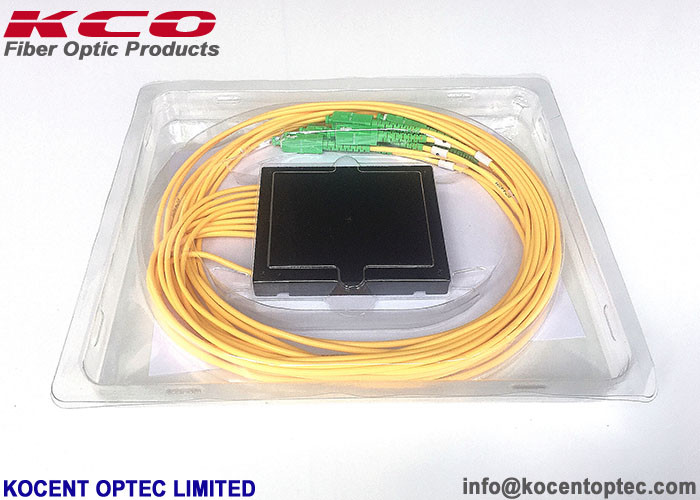

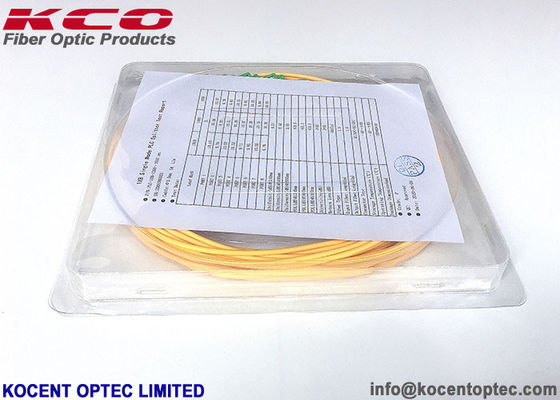

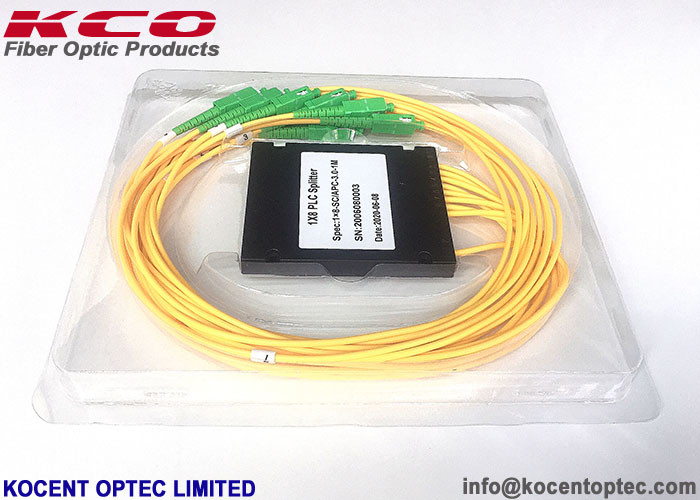

1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 0
1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 1
1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 2
1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 3
Packing Information
1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 4

Standard export packing includes carton box, wooden box, or wooden pallet options.

Our PLC Splitter Family
1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 5
OEM/ODM Services

We offer custom branding options for cables, packaging, and labels. Contact our sales team for OEM/ODM solutions.

1.0m Single Mode ABS Modular PLC Splitter for LAN Applications 6
Shipping Options

Available shipping methods include:

  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight

Standard export ports: Shenzhen, Hongkong, Ningbo (sea); Shenzhen, Hongkong, Hangzhou, Shanghai (air).
