6 Port PDLC CPRI 1*8 1*12 Splitter FTTA Fiber Optic Splice Closure Terminal Box

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-FTTA-06-PDLC
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pole Mount, Wall Mount Waterproof Port 1in 6 Out
P/N KCO-FTTA-06-PDLC Min. Capacity 12 Cores
Max Capacity 12 Cores Material ABS
Color Grey Connector Type PDLC, ODVA, Huawei Mini SC, ...
Highlight

SC Connector Fiber Optic Closure

,

ABS Fiber Optic Splice Closure

Leave a Message
Product Description



6port FTTA Solution Enclosure Box Huawei Mini SC Water Proof Connector OptiTap Adapter



Description:

- FTTX Enclosure is a new economic fiber distributed solution for outdoor use.

- Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility.

- It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.

- FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.





Feature:

- Compact and tight

- Having reliable cable fixing and grounding facilities

- Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
- Made of material with good capability of outdoor environment resistance and high durability
- Using self-adhesive isolative tape and glue belt to seal
- To use rotating method to connect fiber organizer cassette result in easy installation
- Mechanical design suitable for installing, fiber splicing storage and cable connection


Benefits:
- High compatibility: can be assembled ODVA, OptiTap, Mini SC, AARC, PTLC, PTMPO or factory-sealed or field assembly

- Compact size, save cost, easy to operating.

- From 2 to 12 ports for single or multifiber harsh connectors
- Available with PLC or splice sleeve for fiber divide

- IP67 waterproof rating,Wall mounting, aerial installation or holding pole installation
- Decreased angle surface and height make sure no connector interfering when operating
- Cost effective: save 40% operating time



Application:

- FTTA (Fiber to the attena)

- FTTx (FTTA, FTTB, FTTH, FTTO, ...)

- CATV
- Telecom

- Opic fiber communications system

- Military Communication, ...



Specification:

Product Name FTTA Fiber Optic Splice Closure Box
P/N KCO-FTTA-06
Material ABS
Dimension (mm): 185*85*55mm
Weight 0.4KG
Max Capacity 12 Core
Ports 1 inlet 6 outlet
Suitable Water Proof Connector: ODVA, Huawei Mini SC, PDLC, Optitap, ODC, ...

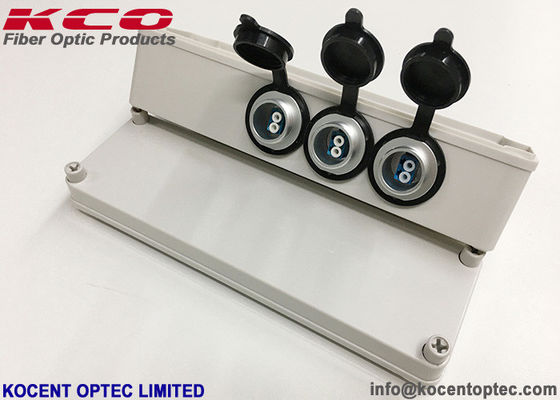

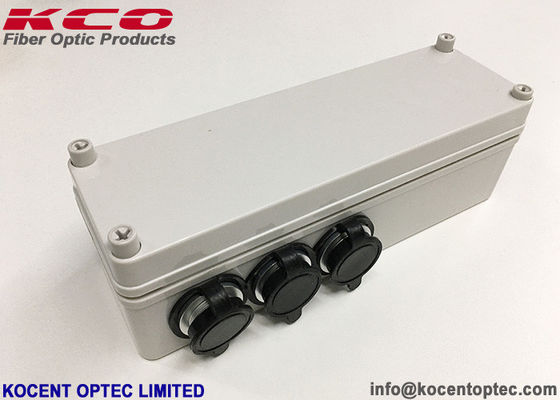

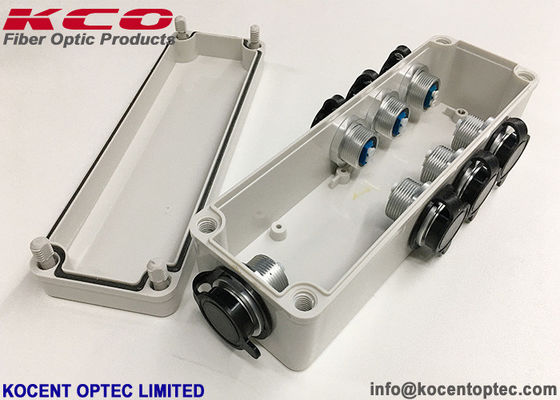

Product pictures:





6 Port PDLC CPRI 1*8 1*12 Splitter FTTA Fiber Optic Splice Closure Terminal Box 0







Relation products:



6 Port PDLC CPRI 1*8 1*12 Splitter FTTA Fiber Optic Splice Closure Terminal Box 1

6 Port PDLC CPRI 1*8 1*12 Splitter FTTA Fiber Optic Splice Closure Terminal Box 2

6 Port PDLC CPRI 1*8 1*12 Splitter FTTA Fiber Optic Splice Closure Terminal Box 3

Lead time:
Quantity(Pieces) 1~10 11~100 101~500 >500
Est. Time(days) 3   10 Negotiable



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Mini Dome Fiber Optic Splice Closure KCO-DM22-48LX Outdoor IP67 Pole Mount 24/48 Core



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
