SC UPC Telkom 16 Core ODP Optical Distribution Point

SC UPC Telkom 16 Core ODP Optical Distribution Point
SC UPC Telkom 16 Core ODP Optical Distribution Point SC UPC Telkom 16 Core ODP Optical Distribution Point SC UPC Telkom 16 Core ODP Optical Distribution Point

Large Image :  SC UPC Telkom 16 Core ODP Optical Distribution Point

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-TK-208

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Detailed Product Description
Material: ABS, ABS+PC P/N: KCO-TK-208
Color: Grey/ Black/ Customized Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor IP65 Capacity: 16 Port
Splitter: 1*8 Adaptre: SC/UPC
High Light:

SC UPC Optical Distribution Point

,

ODP Optic Cable Termination Box



Telkom 16 Core ODP Optical Distribution Point ABS+PC Grey 1*8 PLC Splitter SC/UPC





Descriptions:

- Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks.

- This ODP has two (2) input ports and 16 output ports on the bottom and it is easy to install on the pole or wall.



Specification:

Item KCO-TK-208
Dimension 345x300x95mm
Net Weight 1.8kg
Splice tray 1pcs
Adapter ports 16 port
Splitter Mini Tube PLC Splitter 1*8
Splitter no. max. 2pcs
Color Grey
Working Temperature -25°C ~ 60°C (5 to 95% relative humidity)



Feature:
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Protection Level: IP65.
- Easy installations: Ready for wall mount – installation kits provided
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security



Application
- Widely used in FTTX systems;
- PON networks;
- Fiber optic termination, indoor and outdoor application;
- CATV networks, data communications networks, telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.



Operating Conditions:
- Temperature -45~+85
- Relative humidity 85%(+30 C)
- Atmospheric pressure 70KPa~106KPa



Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss 0.2dB
- Insert loss 0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)



Products photos:

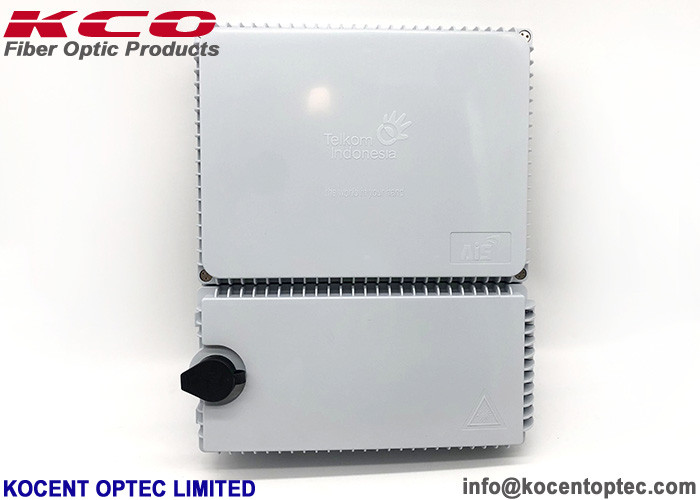

SC UPC Telkom 16 Core ODP Optical Distribution Point 0

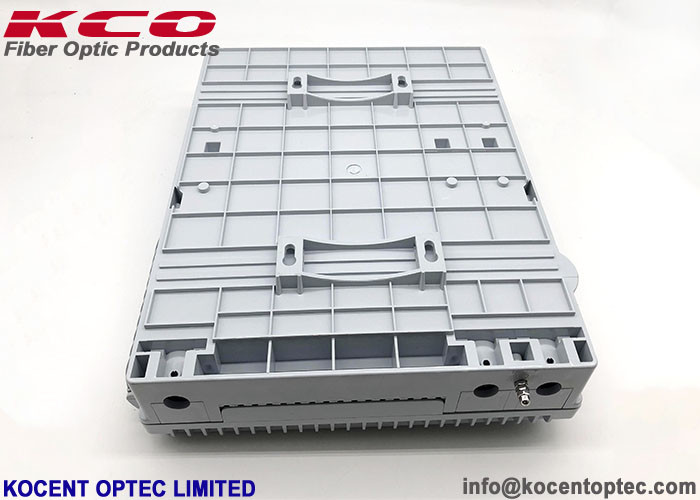

SC UPC Telkom 16 Core ODP Optical Distribution Point 1

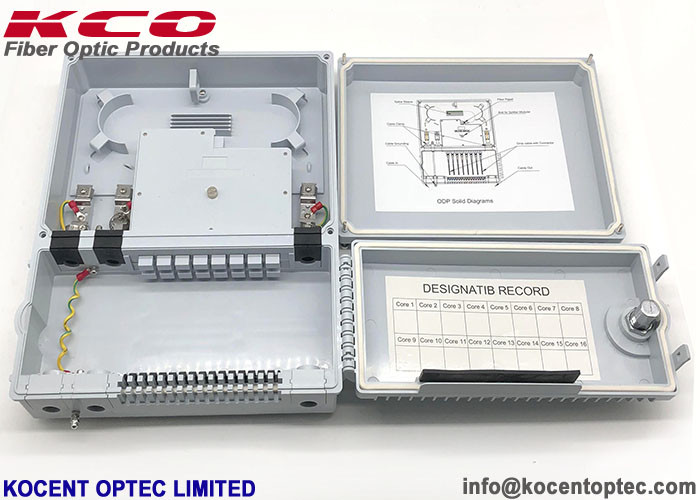

SC UPC Telkom 16 Core ODP Optical Distribution Point 2



Related Products:

SC UPC Telkom 16 Core ODP Optical Distribution Point 3



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc

- Standard shipping port: Shenzhen, Hongkong, Ningbo
