IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket

IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket
IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket

Large Image :  IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-FTB04D-GJ

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Detailed Product Description
Material: ABS, ABS+PC P/N: KCO-FTB04D-GJ
Color: White/ Black/ Customized Connector: SC, ST, LC, FC, E2000, Etc
Application: Indoor IP55 Capacity: 4 Ports SC Simplex Or 8 Ports LC Duplex
High Light:

SC/APC Fiber Optic Faceplate Socket

,

8cores Fiber Optic Faceplate Socket

,

IP55 Wall Mount Faceplate Socket



Indoor Wall Mount 4 Port SCAPC Fiber Optic Face Plate Socket



Overview:
- Kocent Optec Limited is one of lead supplier of passive fiber optic product in Shenzhen, China.

- Our product list include:

+ Fiber Optic Cable

+ Fiber Optic Splitter
+ Fiber Optic Patch Cord / Pigtail
+ Fiber Optic Adapter, Connector, Attenuator, and other accessories
+ Fiber Optic Distribution Box
+ Fiber Optic Terminal Box, Face Plate, Socket
+ Fiber Optic Splice Closure Box. , ...



Descriptions:

- Fiber Optic Termination Box great for jointing fiber cable and pigtails.

- It protects fiber optic splices and enables distribution. The termination box is wall-mounting and is mainly used in telecommunication and network equipment rooms.

- This KCO-FTB04D-GJ fiber optic face plate socket  is designed to terminated in residential and business building side for the FTTH access network.

- It is enable the installation of either a single Blown Fibre Tube Cable with up to a 4 fibre or up to 4 fiber ruggedised cables to be spliced with 4 SC pigtails.
- The unit can be quickly installed within an office, house or communication room environment.

- It is the last passive interface before the converter.

- It has a cover with 2 holes to fix the box on DIN rail, or 2 screws to fix on wall..



Chatacterist:

-SC style fiber optical faceplate
- It's simplified design is easy for installation and maintenance
- Radian appearance makes it slinky
- Embedded chart and logo position make it easy to identity
- Panels suitable for FC, LC, SC, ST adapters are available
- 1 port, 2 ports, 3 ports, 4 ports optional



Specification:

Model KCO-FTB04D-GJ
Dimension (H*W*D) 100*85*30mm
Max. Capacity 8cores
Max. Adapter 4 pcs SC simplex
PLC Splitter non
Material PC+ABS/ ABS
Weight 92gr
Color Gray/ Black/ White



Feature:

- It is applicable for FTTH, FTTO and FTTD, etc.

- The clasp design of the cover has greatly reduced the installation strength.

- It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.

- Coordinating with FC strip-type optical adapter,
- It generates more options in term of fiber interfaces for users, SC, FC is available.

- The big-diametered wrapping post in the box protects radically in an omnibearing way.



Products photos:

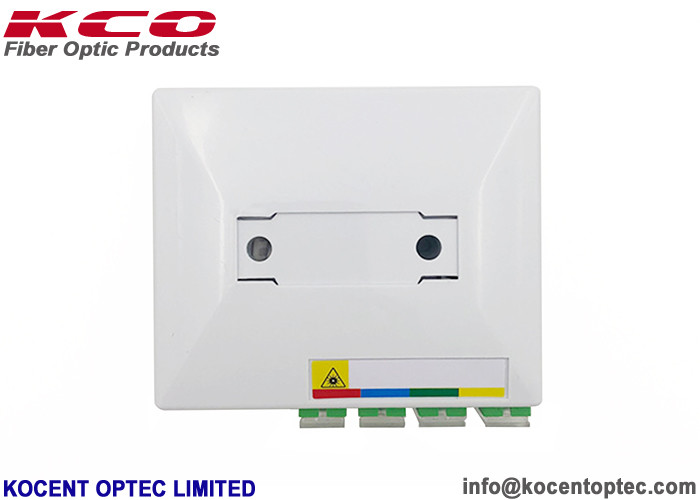

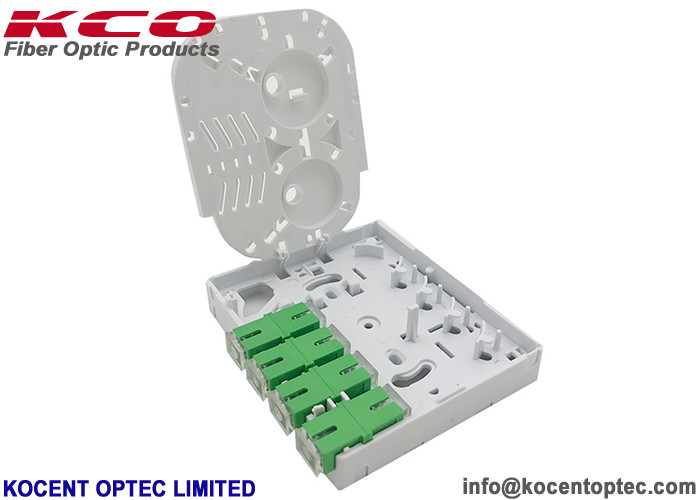

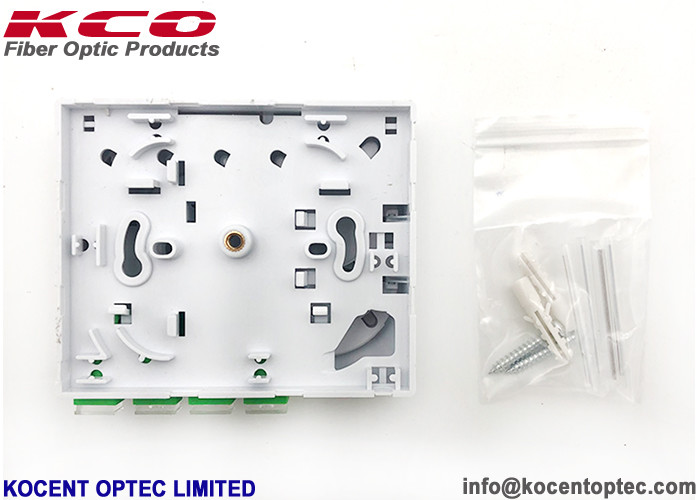

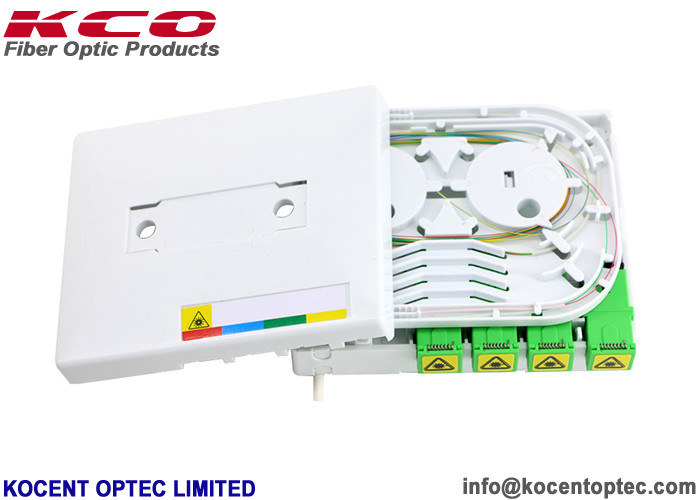

IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket 0

IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket 1
IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket 2


Related Products:
IP55 Wall Mount 8cores SC/APC Fiber Optic Faceplate Socket 3



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc

- Standard shipping port: Shenzhen, Hongkong, Ningbo
