1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications

  • 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications
  • 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications
  • 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications
  • 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications
  • 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-Splitter-2*16-LCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 1U
Splitter Type Mini Tube Type Split Way 2 In 16 Out
Connector LC/APC. SC/APC Cable 0.9mm
Pigtail Length 0.35m Fiber Type SM G652D, G657A1, G657A2
Highlight

G657A2 Optical Fibre PLC Splitter

,

LC/APC Optical Fibre PLC Splitter

,

LGX Box Duplex Optic Splitter
Leave a Message
Product Description

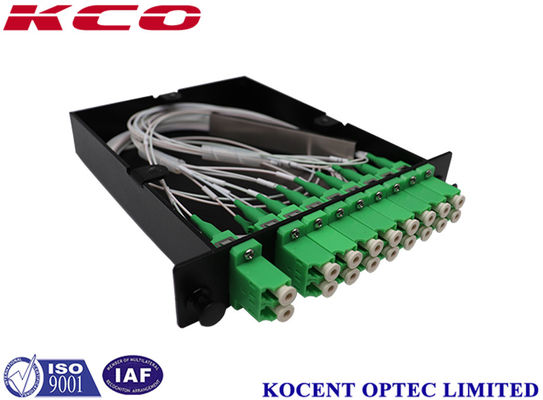

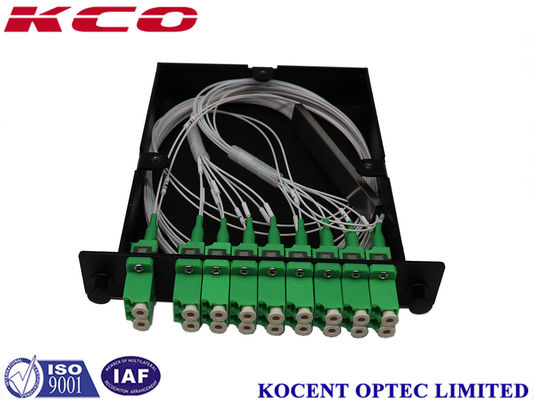

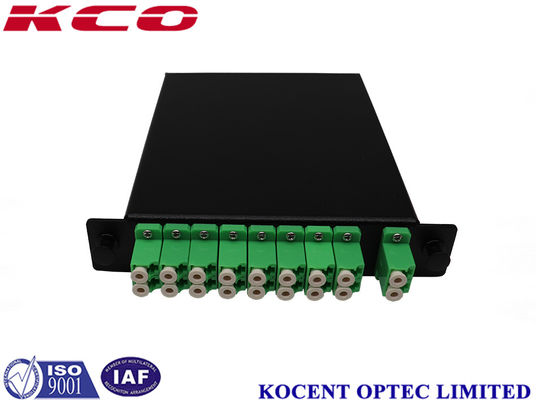

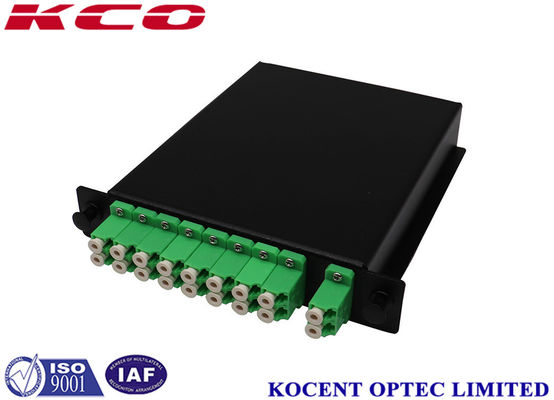

LC/APC Duplex 2*16 G657A2 Optical Fibre PLC Splitter LGX Box
This steel or aluminum alloy LGX box is designed for housing fiber optic PLC splitters and can be mounted on 19-inch rack systems in data rooms. The fiber optic PLC (Planar Lightwave Circuit) splitter is an optical power management device that distributes signals from Central Offices to multiple locations.
Key Advantages
  • Plug-and-play LGX metal box for easy network integration
  • Eliminates need for field splicing or specialized installation personnel
  • Compact design saves cabinet space
  • Standard 19" rack mount compatible
  • Each LGX box holds 1×8 SC splitter or 2×16 LC splitter
  • Chassis accommodates 8-16 LGX boxes (customizable)
  • Available in steel (0.8mm, 1.0mm, 1.2mm) or aluminum alloy
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Technical Specifications
Connectors loss:
<0.2dB
Return loss:
≥50dB
Connector life span:
≥1,000 cycles
Environmental temperature:
-5℃ to +60℃
Operating temperature:
-5℃ to +40℃
Relative humidity:
≤85% at +30℃
Insulating resistance:
≥2000MΩ/500V
Voltage resistance:
>3000V(DC) 1 min non-puncture
Performance Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent environmental stability
  • Superior mechanical stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Detailed Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40 ~ +85
Storage Temperature(°C) -40 ~ +85
Splitter Performance Data
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications 0 1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications 1
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for personalized solutions.
1U High Steel/Aluminum Alloy Fiber Optic PLC Splitter with 2*16 Split Way for FTTX/FTTH Applications 2
Packaging & Shipping
  • Standard export packaging (carton box, wooden box, pallet)
  • Shipping options: International express (UPS, TNT, DHL), air freight, sea freight
  • Export ports: Shenzhen, Hong Kong, Ningbo
  • Export airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
