KCO-H0848-SZ Waterproof Fiber Optic Splitter Splice Enclosure Box 16fo 32fo 1*16 1*32

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-H0848-SZ
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Inline Type Cable Ports 8 Ports
Cable Diameter 8.0~18.0mm Min. Capacity 4 Cores
Max Capacity 48cores Material PPR, ABS, PC, PP
P/N KCO-H0848-SZ Color Black
High Light

Waterproof Optica Optik Fiber Closure


48cores Optica Optik Fiber Closure


1/4 PLC Splitter Splice Closure

Leave a Message
Product Description


KCO-H0848-SZ Aerial Waterproof Optik Fiber Splice Closure Box With PLC Splitter 1:4



- KCO-H0848-SZ fiber optic splice clusre box is mainly used for optical fiber connection and protection.

- It is suitable for the connection of overhead, pipe and buried straight and branch.

- The box body and base are sealed with hoops and rubber.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

- The splice trays is inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm.

- Each optical cable and fiber can be operated individually.

- It can be opened again and reused after installation.


- For outdoor using: Aerial, direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.


- Telecom project

- CATV networks

- Local area networks
- Telecommunication networks
- Data communications networks

- Widely used in FTTH access network



- High-strength engineering plastic shell

- Water proof grade: IP65

- Great aging resistant ability
- High mechanical performance

- Excellent sealing performance

- Does not require special tools, easy to install and open the duplicate.
- Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes


Product pictures:

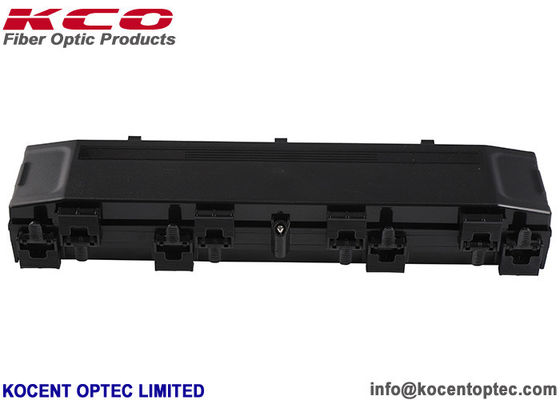

KCO-H0848-SZ Waterproof Fiber Optic Splitter Splice Enclosure Box 16fo 32fo 1*16 1*32 0

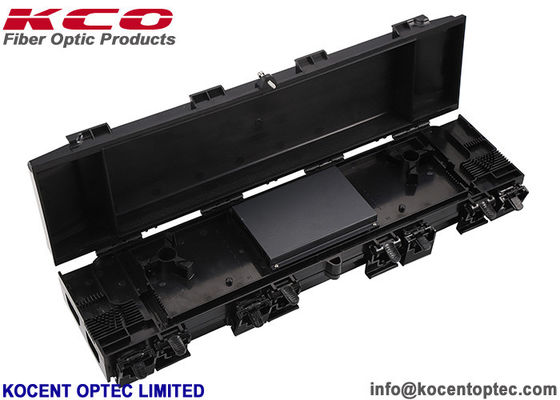

KCO-H0848-SZ Waterproof Fiber Optic Splitter Splice Enclosure Box 16fo 32fo 1*16 1*32 1



Product Name
Fiber optic splice closure
Inline type (horizontal type) for earial application
Mechanical seal
Cable out of the tube configuration
Up to four out of the tube fiber optic cable
  P/N   KCO-H0848-SZ
  Size(mm)   600*190*100
  Gross weight (kg)   2.75
  Port no.    8
  Cable dia. (mm)   8~18
  Tray no. (pc)   1
  Min. Capacity (fo)   4
  Max. Capacity (fo)   48


Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.

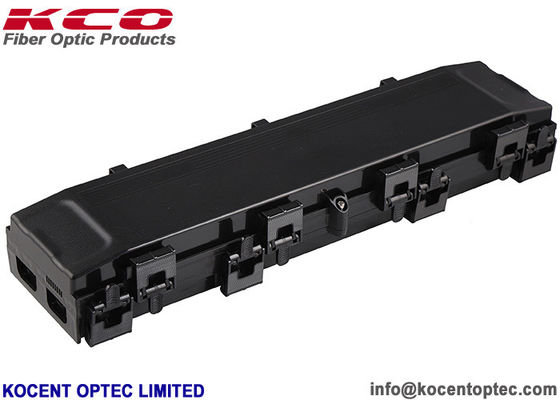

KCO-H0848-SZ Waterproof Fiber Optic Splitter Splice Enclosure Box 16fo 32fo 1*16 1*32 2


OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
