Indoor G657A Indoor Optical Fiber FTTH Drop Cable Patch Cord 1 2 4 Cores LSZH
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-FTTH-ID01 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | LSZH | Name | 1 Core FTTH Drop Cable |
|---|---|---|---|
| Length | 100m, 200m, 500m, 1km, 2km | Application | Indoor Drop Patch Cable |
| Fiber | Multimode Om1, Om2, Om3,Om4, Om5 | Model | KCO-FTTH-ID01 |
| Diameter | 2.0*3.0mm | Color | Black/ White |
| Highlight | FTTH Drop Cable Patch Cord,OM5 Drop Cable Patch Cord,OM4 Optical Fiber Drop Cable |
||
Product Description

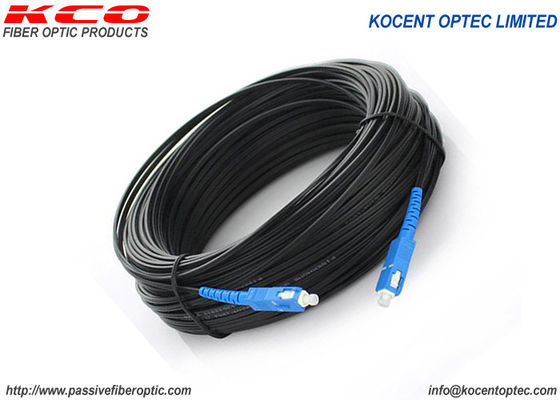

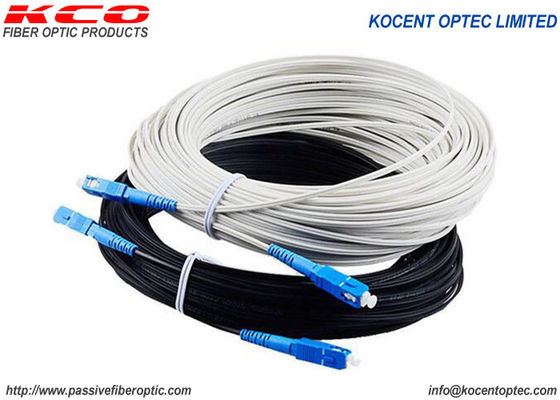

Indoor G657A Optical Fiber FTTH Drop Cable Patch Cord
Multimode OM1, OM2, OM3, OM4, OM5 1-core, 2-core, and 4-core optical fiber FTTH drop cable patch cords designed for fiber-to-the-home applications. These cables feature a central optical communication unit with parallel non-metallic or metal reinforcement members, enclosed in a durable LSZH (Low Smoke Zero Halogen) or PVC jacket.
Product Overview

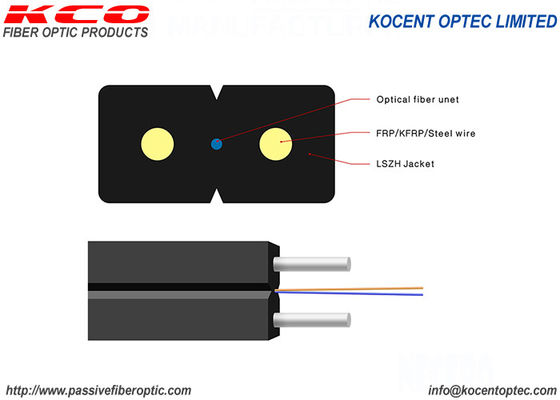

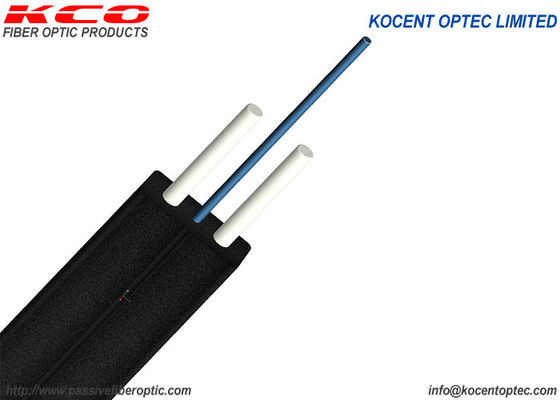

FTTH fiber optic drop cables are extensively used in Fiber to the Home projects, available in both indoor and outdoor variants. The cable structure positions the fiber optic core centrally, flanked by two parallel fiber reinforced plastics (FRP) or steel wires for enhanced durability and strength.
Key Features
- Excellent mechanical and environmental performance characteristics
- Flame retardant properties compliant with industry standards
- Superior mechanical strength meeting relevant standard requirements
- Flexible and easy to install, route, and splice
- High-capacity data transmission capability
- Available in LSZH (Low Smoke Zero Halogen) or PVC sheathing
Applications
- FTTX Networks (FTTH, FTTA, FTTB, FTTC, FTTO)
- Outdoor distribution systems
- Long-distance and local area network communications
- Aerial and pipeline installation methods
- LAN and WAN infrastructure
Cable Construction
Technical Specifications
| Fiber Type | Fiber Sort | Core/Cladding | Sheath Material | Sheath Color | Available Lengths |
|---|---|---|---|---|---|
| Multimode | OM1 | 62.5/125 | LSZH/PVC | Black, White, Other colors | 100m, 200m, 300m, 500m, 1000m, 2000m |
| OM2 | 50/125 | ||||
| OM3 | 50/125 10G | ||||
| OM4 | 50/125 | ||||
| OM5 | 50/125 | ||||
| Singlemode | G652D | - | LSZH/PVC | Black, White, Other colors | 100m, 200m, 300m, 500m, 1000m, 2000m |
| G655 | - | ||||
| G657A1 | - | ||||
| G657A2 | - | ||||
| G657B3 | - |
Packaging
- Standard export packaging compliant with international requirements
- Carton boxes, wooden cases, and wooden pallets available
