PVC LSZH 2fo SM Monomode G657A Optical Fibre Drop FTTH Cable 2km 1km
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-FTTH-ID02 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | LSZH | Name | FTTH Drop Cable |
|---|---|---|---|
| Length | 100m, 200m, 500m, 1km, 2km | Application | Indoor Drop Patch Cable |
| Fiber | Single Mode, G652D, G657A1 | Model | KCO-FTTH-ID02 |
| Diameter | 2.0*3.0mm | Color | Black/ White |
| Core Number | 2fo | Strength Member | Steel Wire, FRP, KFRP |
| Highlight | FTTH Optical Fibre Drop Cable,G657A Optical Fibre Drop Cable,LSZH Optical Fibre Patch Cord |
||
Product Description

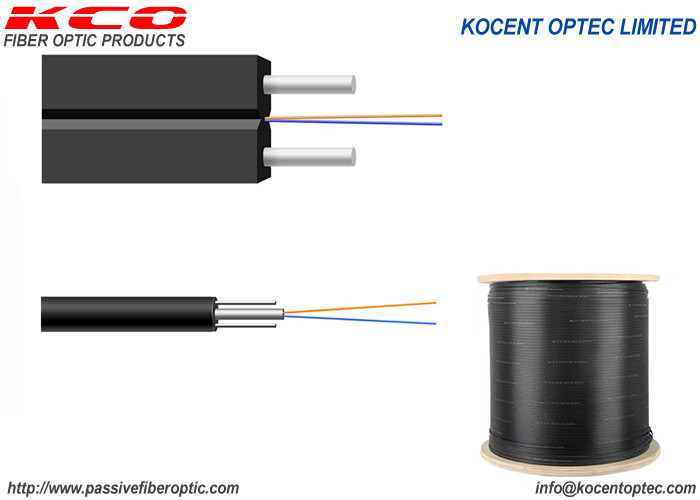

PVC LSZH 2FO SM Monomode G657A Optical Fibre Drop FTTH Cable
The FTTH Drop cable serves as a critical component in FTTH networks, forming the final external connection between subscribers and feeder cables. Selecting the appropriate FTTH drop cable termination or interconnect solution directly impacts network reliability, operational flexibility, and deployment economics.
These FTTH drop cables are designed for direct installation into residential and commercial buildings, making them ideal for homes and offices. The flat FTTH drop cable features a polyethylene jacket, optical fibers, and two dielectric strength members that provide exceptional crush resistance.
Key Features
- Simple structure with lightweight design and high practicability
- Low smoke, zero halogen, flame retardant sheath (LSZH)
- Special low-bend-sensitivity fiber ensures high bandwidth and excellent transmission performance
- Two parallel strength members provide superior crush resistance for fiber protection
- Innovative flute design enables easy stripping and splicing, simplifying installation and maintenance
Applications
- LAN and WAN networks
- CCTV and CATV systems
- FTTX deployments (FTTH, FTTA, FTTB, FTTC, FTTO)
- Outdoor distribution networks
- Long-distance and local area network communications
- Access networks and customer premises installations
- Suitable for aerial and pipeline laying methods

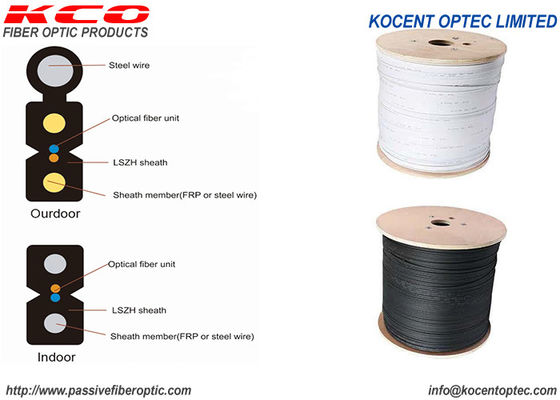

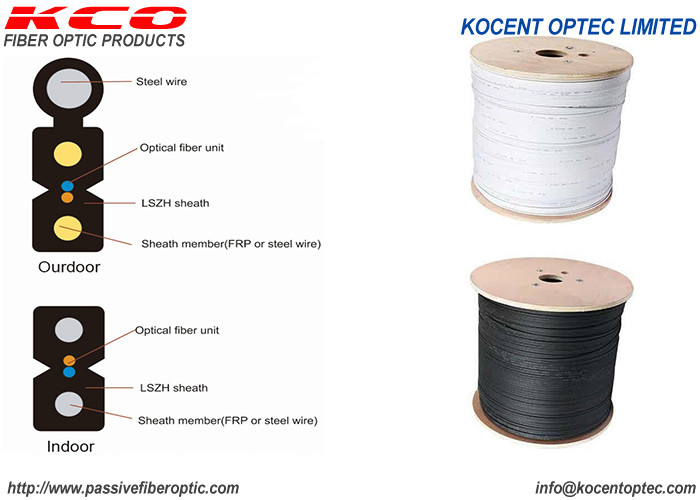

Cable Construction
Technical Parameters
| Parameter | Specification |
|---|---|
| Number of Fibers | 2/4 |
| Fiber Model | G.657A1 |
| KFRP Diameter | 0.5mm (±0.03mm) |
| KFRP Quantity | 2 |
| Outer Sheath Material | LSZH |
| Outer Sheath Color | White/Black |
| Cable Diameter | 2.0×3.0mm (±0.2mm) |
| Cable Weight | 8.50kg/km (±2kg/km) |
| Attenuation (1310nm) | 0.50 dB/km |
| Attenuation (1550nm) | 0.40 dB/km |
| Allowable Tensile Strength (Short Term) | 80N |
| Allowable Tensile Strength (Long Term) | 40N |
| Allowable Crush Resistance (Short Term) | 2200N/100mm |
| Allowable Crush Resistance (Long Term) | 1000N/100mm |
| Minimum Bending Radius (Without Tension) | 15.0×Cable Diameter |
| Minimum Bending Radius (Under Maximum Tension) | 30.0×Cable Diameter |
| Temperature Range (Installation) | -20°C to +60°C |
| Temperature Range (Transport & Storage) | -40°C to +70°C |
| Temperature Range (Operation) | -40°C to +70°C |

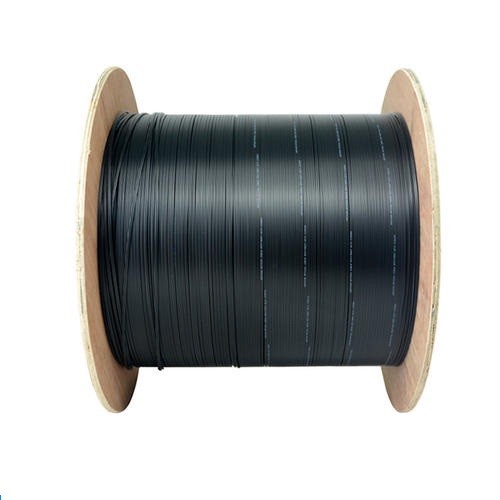

Packing Information
Technical Data Options
| Fiber Type | Outsheath Material | Outsheath Color | Available Lengths |
|---|---|---|---|
| Multimode OM1 (62.5/125) | LSZH PVC | Black, White, Other colors | 100m, 200m, 300m, 500m, 1000m, 2000m |
| Multimode OM2 (50/125) | |||
| Multimode OM3 (50/125 10G) | |||
| Multimode OM4 (50/125) | |||
| Multimode OM5 (50/125) | |||
| Singlemode G652D, G655, G657A1, G657A2, G657B3 | LSZH PVC | Black, White, Other colors | 100m, 200m, 300m, 500m, 1000m, 2000m |
FTTH Solution
OEM/ODM Services
We offer comprehensive OEM and ODM services, allowing you to display your brand logo on cables, packaging bags, labels, or any other requested location. Contact our sales team for customized branding solutions and optimal support.
Packaging & Shipping
Packaging Options
- Standard export packaging
- Carton boxes, wooden boxes, wooden pallets
Shipping Methods
- International express: DHL, FedEx, TNT, UPS
- International air freight
- Sea freight
- Standard export sea ports: Shenzhen, Hong Kong, Ningbo
- Standard export airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
