1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC

  • 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
  • 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
  • 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
  • 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-FTTH-ID02
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material LSZH Name FTTH Drop Cable
Length 100m, 200m, 500m, 1km, 2km Application Indoor Drop Patch Cable
Fiber Single Mode, G652D, G657A1 Model KCO-FTTH-ID02
Diameter 2.0*3.0mm Color Black/ White
Core Number 2fo Strength Member Steel Wire, FRP, KFRP
High Light

FRP FTTH Fiber Optic Cable

,

KFRP FTTH Fiber Optic Cable

,

LSZH Fiber Optic Patch Cord
Leave a Message
Product Description

Single mode 2core 2 FRP Optica Fibra Flat 8 figure FTTH Drop Cable Anatel



Description:

- The FTTH Drop cable, as an important part of FTTH network, forms the final external link between the subscriber and the feeder cable.

- Choosing the right FTTH drop cable termination or interconnect solution will directly affect network reliability, operational flexibility and the economics of FTTH deployment.

- The FTTH drop cables are ideal to use for direct installation into the houses, suitable for being used in homes and offices.

- Flat FTTH drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

- Fiber FTTH drop cable usually contains one or two fibers, so far the drop cables with fiber counts up to 4, 8, 12 or more are also available now.

- FTTH Drop Cables are good to use for fiber to the home last mile solution, it has small diameter and light weight, this makes it space-saving and easy to handle, the optical fiber cable is with special structure so it is easy to pull the fibers out from the cables.



Feature:

- Simple structure, light weight and high practicability

- Low smoke, zero halogen and flame retardant sheath

- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Novel flute design, easily strip and splice, simplify the installation and maintenance



Applications:

- LAN,

- WAN, ...

- CCTV, CATV, ...

- FTTX (FTTH, FTTA, FTTB, FTTC, FTTO, ..),

- Adopted to Outdoor distribution,

- Long distance and local area network communication,

- Used in access network or as access cable from outdoor to indoor in customer premises network,

- Suitable for aerial .pipeline laying method,







Parameter:

No. of fiber 2/4
Fiber Model G.657A1
KFRP Diameter(±0.03)mm 0.5
NO. 2
Outer Sheath Material LSZH
Colour white/ black
Cable Diameter(±0.2)mm 2.0×3.0
Cable Wetght(±2)kg/km 8.50
Attenuation 1310nm dB/km 0.50
1550nm 0.40
Allowable Tensile Strength Short Term N 80
Long Term 40
Allowable Crush Resistance Short Term N/100mm 2200
Long Term 1000
Min. bending radius Without Tension 15.0×Cable-φ
Under Maximum Tension 30.0×Cable-φ

Temperature range(℃)

 Installation -20~+60
Transport&Storage -40~+70
Operation

-40~+70

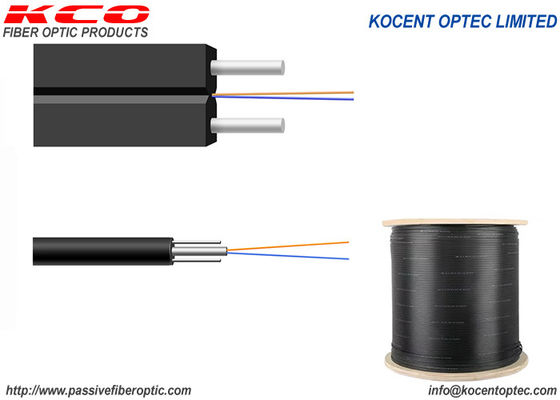

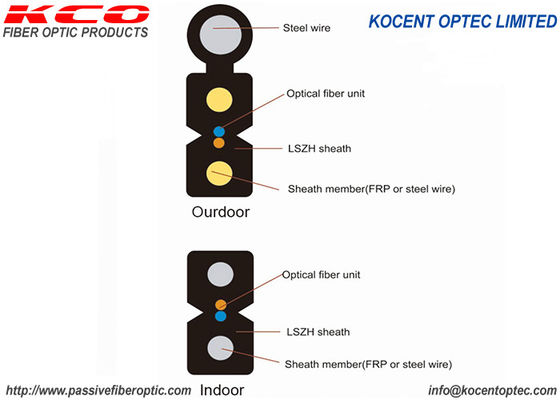

Constructions:



1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 0

1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 1

1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 2



Packing:



1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 3

Technical Data:


  Fiber type Outsheath material Outsheath color Length
  Fiber Sort Multimode OM1 62.5/125 LSZH
PVC		 Black
White
Other color		 100m
200m
300m
500m
1000m
2000m
  OM2 50/125
  OM3 50/125 10G
  OM4 50/125
  OM5 50/125
  Singlemode G652D
  G655
  G657A1
  G657A2
  G657B3


Kocent Optec Limited FTTH Solution:



1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 4



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express: DHL, Fedex, TNT, UPS, etc
- Internatioal air: CA, AA, EA, etc
- By sea:
Standard export sea port: Shenzhen, Hongkong, Ningbo
Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
