96fo Water-proof Dome Vertical Heat Shrink Fiber Optic Splice Closure 1 In 3 Out

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-V13-96-ZG
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Dome Type, Vertical Type Cable Ports 1 In 3 Out
Cable Diameter 6.0~18.0mm Min. Capacity 12 Cores
Max Capacity 96 Cores Material ABS, PP, PC
P/N KCO-V13-96-ZG Color Black
High Light

Vertical Fiber Optic Splice Closure


Dome Fiber Optic Splice Closure


6.0mm Cable Optical Fiber Enclosure

Leave a Message
Product Description


4 port 1in 3out Dome Vertical Heat Shrink Fiber Optic Splice Closure Box



- KCO-V13-96-ZG splice closure is dome type fiber optic splice closure box, use for outdoor application.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- Fiber Splice Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
- The closures are applicable to ribbon type optical cable and common optical cable.
- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.
- Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
- The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.

Quick detail:
- Name: Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-V13-96-ZG
- Size: 430*130mm
- Weight: 1.80kg
- Cable entry port: 1 ports
- Cable out port: 3 ports

- Cable Diameter: 2.0-18.0mm
- Capacity of fibers: 12 cores

- Max. Capacity: 96 cores
- Splice tray number: max. 4 trays
- Material: PC/ ABS / PP Plastic
- Water-proof grade: IP65

- Application: Outdoor
- Working temperature: -30℃ to 60℃
- Install way: pole mount, aerial, underground, pipe line, ...
- Life time: >25 years

- Vertical dome type fiber optic splice junction enclosure, with metal hoop;
- ABS&PP alloy material used ensures the body strong and light;
- IP65 Water-proof design for outdoor uses;
- The application of temperature: -40℃~65;
- Aging resistance: with good stability of heat, thermal radiation, air, ozone and so on;
- Corrosion resistance: strong resistance against acid, salt, oxidants and so on;
- Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance;
- Close device: no need special tools for easy installation and re open;
- Grouping function: 2 inlet 2 outlet can meet most requirements;
- Splice tray: using cascading structure, no need to take other splice tray when do operation;




- Telecom





Product pictures:

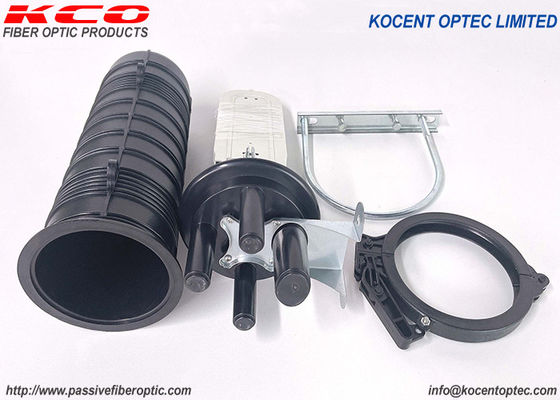

96fo Water-proof Dome Vertical Heat Shrink Fiber Optic Splice Closure 1 In 3 Out 0

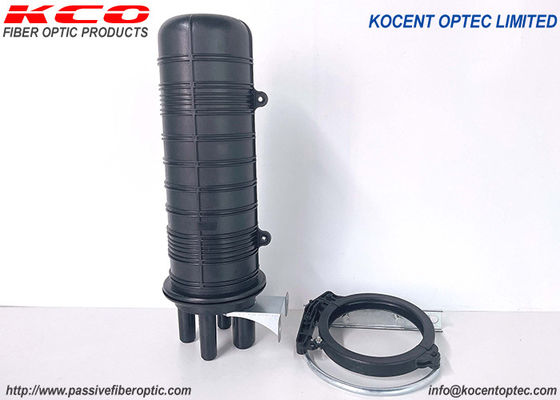

96fo Water-proof Dome Vertical Heat Shrink Fiber Optic Splice Closure 1 In 3 Out 1



Main performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;

- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;


Main Components:

No Name of components Quantity Usage
1 FOSC cover 1 piece protecting fibre cable slices in whole
2 Fiber optic splice tray(FOST) Max.6trays Fixing heat shrinkable
Bunchy protective sleeve ans holding fibers
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing value 1 set After inject air,it is used for pressure testing and sealing testing
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection



Related products:

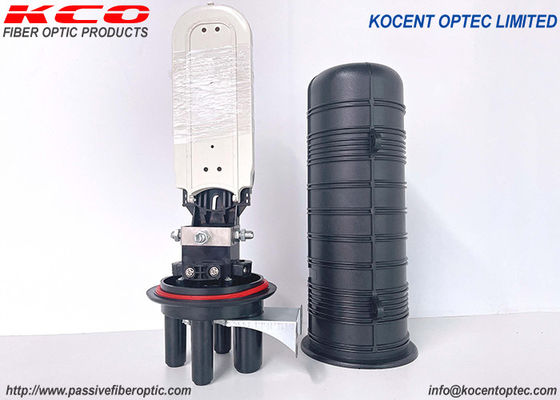

96fo Water-proof Dome Vertical Heat Shrink Fiber Optic Splice Closure 1 In 3 Out 2


OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

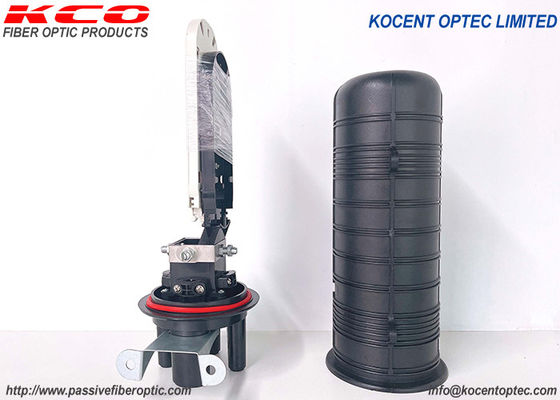

96fo Water-proof Dome Vertical Heat Shrink Fiber Optic Splice Closure 1 In 3 Out 3
