144fo ABS PPR PC Cable Fiber Distribution Splice Closure Box Dome 1 In 5 Out

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-V15-96-ZG
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Dome Type, Vertical Type Cable Ports 1 In 5 Out
Cable Diameter 6.0~18.0mm Min. Capacity 12 Cores
Max Capacity 96 Cores Material ABS, PP, PC
P/N KCO-V15-96-ZG Color Black
High Light

PPR PC Fiber Distribution Box


18.0mm Cable Fiber Distribution Box


Dome Fiber Optical Splice Enclosure

Leave a Message
Product Description


ABS PPR PC 1in 5out Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box



- KCO-V15-96-ZG fiber optic splice closure is dome type fiber optic splice closure box, it is water-proof, can use for outdoor application.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
- The closures are applicable to ribbon type optical cable and common optical cable.
- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.
- Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
- The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance


- The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

- Local Area Networks (LAN)
- Test Equipment
- Analog/Digital Passive Optical Networks (PON)


Quick detail:
- Name: Heat Shrink Port Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-V15-96-ZG
- Size: 460*130mm
- Weight: 2.10kg
- Cable entry port: 1 ports
- Cable out port: 5 ports

- Cable Diameter: 2.0-18.0mm
- Capacity of fibers: 12 cores

- Max. Capacity: 96 cores
- Splice tray number: max. 4 trays
- Material: PC/ ABS / PP Plastic
- Water-proof grade: IP65

- Application: Outdoor
- Working temperature: -30℃ to 60℃
- Install way: pole mount, aerial, underground, pipe line, ...
- Life time: >25 years

- Ageing resistance: thermal, thermal radiation, air, ozone has good stability.
- Corrosion resistance: Acid, Salt, Oxidants, Aliphatic hydrocarbons, which are strong anti-resistance.
- Sealing Technology: Using reusable open-type seal assembly, in order to ensure good airtight waterproof performance.
- Mechanical properties: the ability to endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
- Locking devices: no special tools, easy to install and repeat the open.
- Follow function: the use of laminated clamshell structure, without removing the other splice tray operation.


Product pictures:

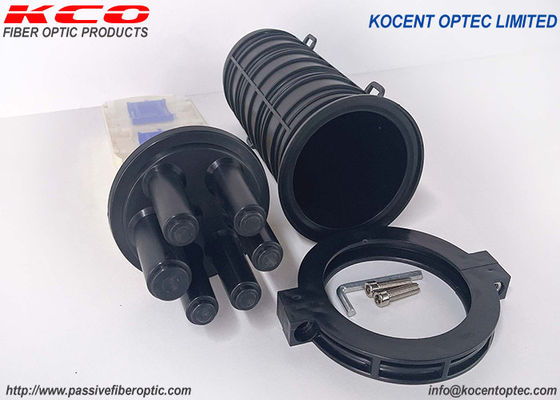

144fo ABS PPR PC Cable Fiber Distribution Splice Closure Box Dome 1 In 5 Out 0

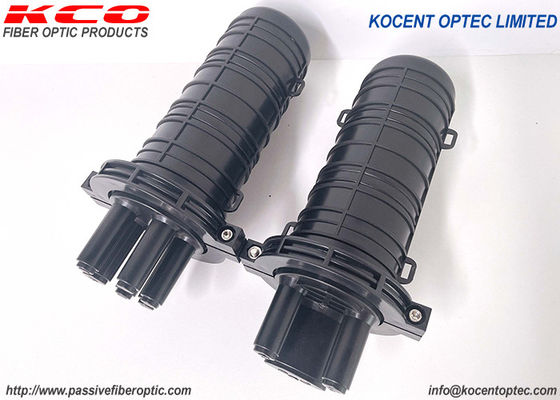

144fo ABS PPR PC Cable Fiber Distribution Splice Closure Box Dome 1 In 5 Out 1


Main performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;

- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;


Main Components:

No Name of components Quantity Usage
1 FOSC cover 1 piece protecting fibre cable slices in whole
2 Fiber optic splice tray(FOST) Max.6trays Fixing heat shrinkable
Bunchy protective sleeve ans holding fibers
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing value 1 set After inject air,it is used for pressure testing and sealing testing
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection



Related products:

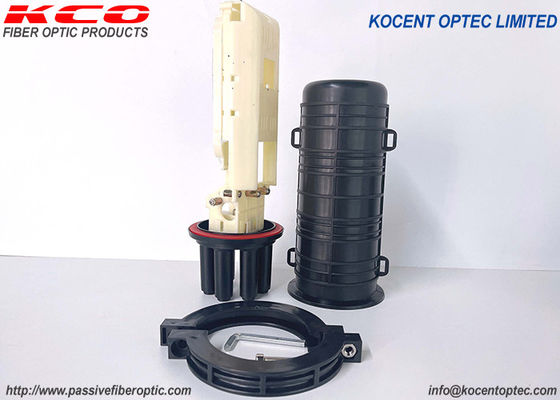

144fo ABS PPR PC Cable Fiber Distribution Splice Closure Box Dome 1 In 5 Out 2
