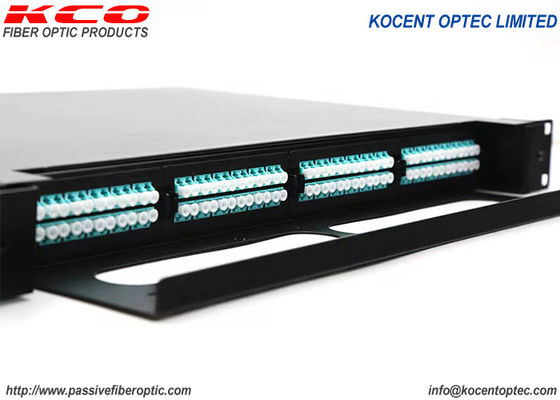

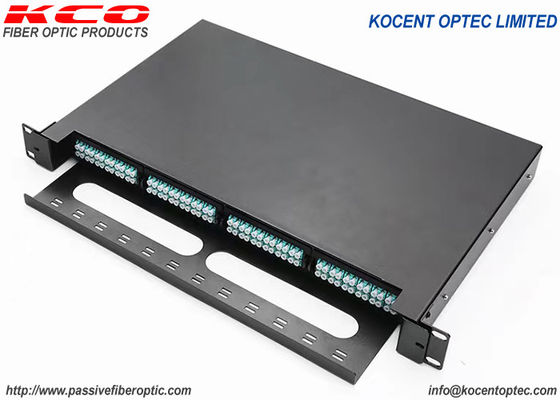

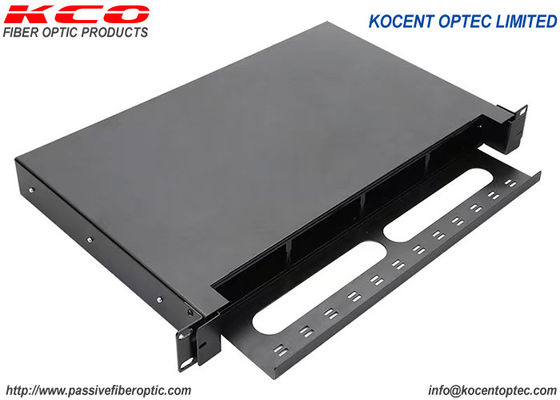

19'' Standard Size High Density Drawing Type MPO MTP Patch Panel for LC Duplex Fiber Optic Connectivity

  • 19'' Standard Size High Density Drawing Type MPO MTP Patch Panel for LC Duplex Fiber Optic Connectivity
  • 19'' Standard Size High Density Drawing Type MPO MTP Patch Panel for LC Duplex Fiber Optic Connectivity
  • 19'' Standard Size High Density Drawing Type MPO MTP Patch Panel for LC Duplex Fiber Optic Connectivity
  • 19'' Standard Size High Density Drawing Type MPO MTP Patch Panel for LC Duplex Fiber Optic Connectivity
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-961U-DR
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 SC Simplex, LC Duplex
Size 480x245x1U Capacity 96 Cores
Color Black, Beige Length 0.5m, 0.8mm, 1.0m, 1.5m, Customized
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
Highlight

ODF MPO MTP Patch Panel

,

24fo MPO MTP Patch Panel

,

1310nm Rack Mount Patch Panel
Leave a Message
Product Description
96fo High Density LC Duplex ODF MPO MTP Patch Panel Drawing Type 1U Rackmount
Drawing Type 1U 96port LC Duplex Fiber Optic Rack Mount ODF MPO MTP Patch Panel
Product Specifications
  • Name: 19'' MPO MTP Patch Panel
  • Capacity: 96 core
  • Maximum module number: 4pc
  • Optical port: LC duplex, MPO
  • Cable length: 0.3m
  • Patch panel size: 480x245x1U(mm)
  • Color options: black, Beige, White, customized
  • Logo printing: customized
  • Thickness options: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Key Features
  • 19" standard size for easy installation
  • Compatible with 19'' Rack type Cabinets
  • Spacious design ensures proper fiber bend radius
  • Complete system solution for connectivity
  • Excellent cable management with easy identification
  • Lightweight yet strong construction with anti-shock and dustproof properties
  • High patch field density saves valuable rack space
  • Flexible network deployment for moves, adds, and changes
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite ≤0.35 dB, Standard ≤0.75dB Elite ≤0.35 dB, Standard ≤0.75dB Elite ≤0.35 dB, Standard ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Technical Details
Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawing
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Accessories Cable ties, mounting ear screws, and spiral wrap tube
OEM/ODM Service
We offer custom branding services for your logo on products, packaging, or labels. Contact our sales team for personalized support.
Packing & Shipping
  • Standard export packing: carton box, wooden box, wooden pallet
  • Shipping options: International express (UPS, TNT, DHL), air freight, sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
