Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive

  • Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive
  • Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive
  • Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive
  • Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Demux-Module-8CH-2.0-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package ABS Plastic Box Channel No. 8CH
Fiber Type Single Mode Pigtail Length 1.0m
Cable Dia. 2.0mm Terminal Connector LC/UPC
RL ≥45dB Fiber No. Single Fiber (Mux Or Demux)
High Light

Optical Fiber Mux Demux DWDM

,

8 Channel Mux Demux DWDM

,

ITU Channel Passive Optical DWDM
Leave a Message
Product Description

Demux Optical Fiber 8 Channel LC/UPC DWDM Modular Dense Wavelength Division Multiplexer



Descriptions:

- DWDM (full name: Dense Wavelength Division Multiplexing) is an optical multiplexing technology used to increase bandwidth over existing fiber networks.

- DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. The technology creates multiple virtual fibers, thus multiplying the capacity of the physical medium.

- WDM has revolutionized the cost per bit of transport.

- DWDM, fiber networks can carry multiple Terabits of data per second over thousands of kilometers - at cost points unimaginable less than a decade ago. State-of-the-art DWDM systems support up to 192 wavelengths on a single pair of fiber, with each wavelength transporting up to 100Gbit/s capacity - 400Gbit/s and one Terabit/s on the horizon.

Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive 0



Product advantage:

- Small and light, Industrial, can be placed flexibly;

- Plug and play, easily install and maintenance, no need any configuration;

- Zero transmission delay, improve transmission performance, support further distance;

- For passive fiber optic networks, no need power, high reliability, support outdoor application;
- Be transparent to any service signals, it can support FE/GE/10GE/25GE/100GE, OTU1/OTU2/OTU3, FC1/2/4/8/10, STM1/4/16/64, ...;



Key Features
- Low Insertion loss
- Standard ITU channel
- High channel isolation
- Epoxy-free Optical path
- Stable performance


Applications
- DWDM System
- CATV networks


  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55

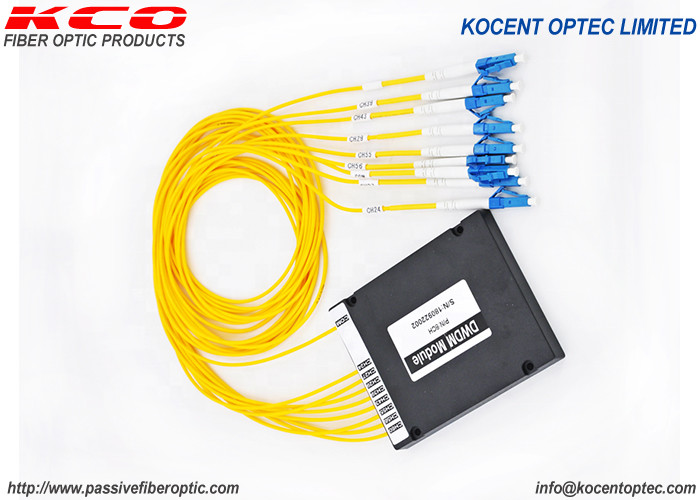

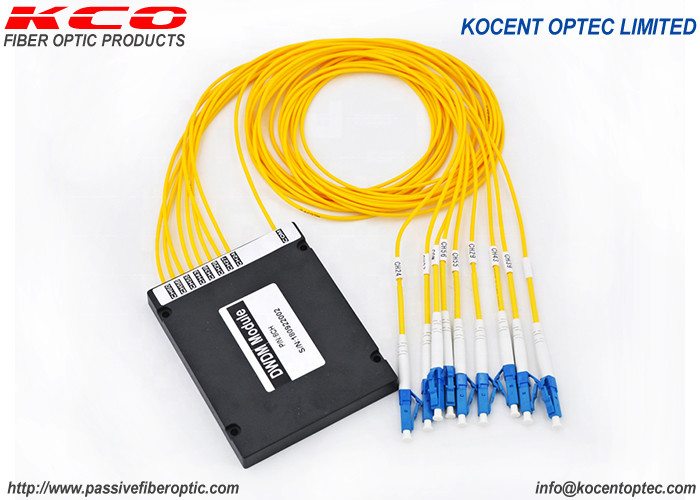

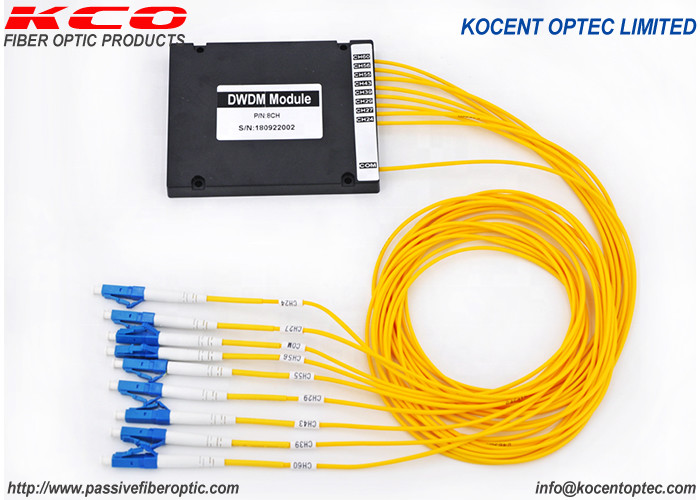

Product photo:



Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive 1







Relation products:

Optical Fiber Mux Demux DWDM 8 Channel LC UPC ITU Channel Passive 2





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
