MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type

  • MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type
  • MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type
  • MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type
  • MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-OM3-3.0-1.0M-LC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*8 1x8 Connector LC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-OM3-3.0-1.0M-LC
Highlight

OM4 Fiber Optic Splitter

,

OM3 Fiber Optic Splitter

,

1*8 optical cable splitter
Leave a Message
Product Description

OM2 OM3 OM4 Fiber Optic Splitter 1*8 ABS Box Type Multimode



Descriptions:
- The fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams.
- These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture.

- The MM graded index couplers offer low insertion loss and excellent environmental and mechanical stability.

- The multimode couplers are available in 50/125um and 62.5/125um fiber types and operate at 850nm or 1310nm wavelength range.

- Multimode Couplers are available with 3mm cable jacket, 900µm loose tube jacket or 250µm bare fiber.

- It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.

- Fiber optic splitter provides a low cost light distribution solution with high stability and reliability.



Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.



Features:

- FTTX Deployment
- FTTH Network

- LAN
- CATV System

- Optical Signal Distribution
- Passive Optical Network(PON)

- Fiber Optic systems
- Measuring System

- Laser System
- DWDM and CWDM System
- Data Communications

- Fiber optic testing


Applications:
- Fiber Optic CATV
- Fiber to home(FTTH)
- Passive Optical Networks (PON)
- Local Areal Networks(LAN)
- Fiber communication systems.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

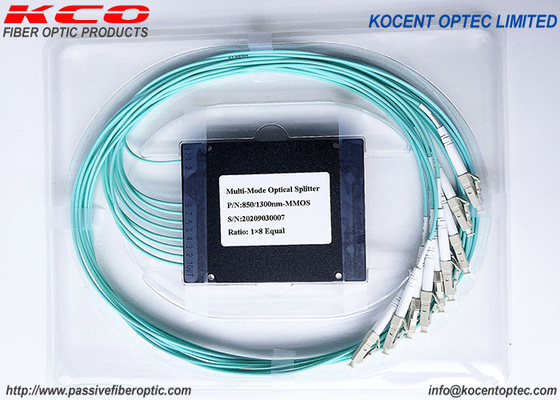

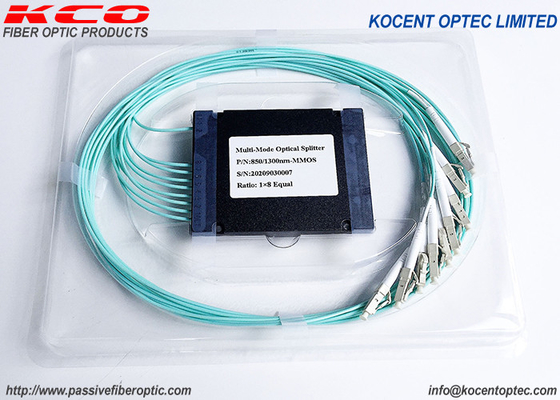

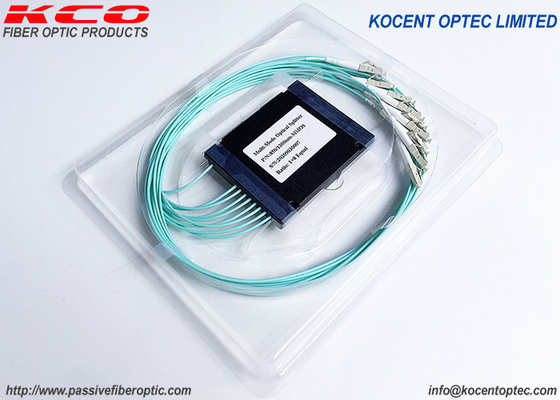

Product photos:



MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type 0



Our PLC Splitter Family:



MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1*8 1*4 1*16 1*2 ABS Box Type 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
