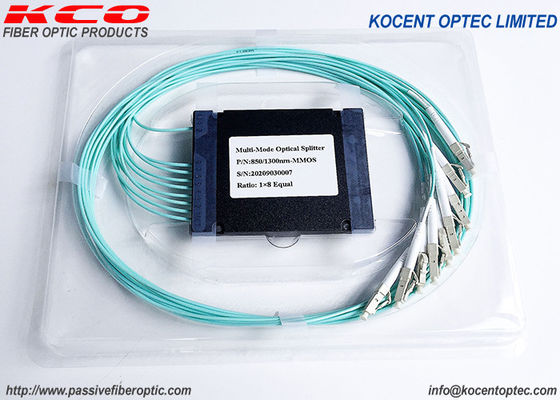

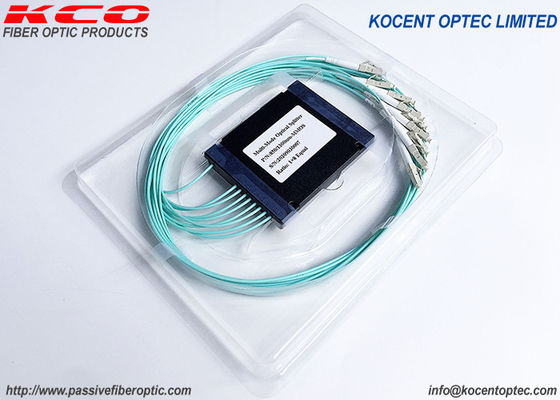

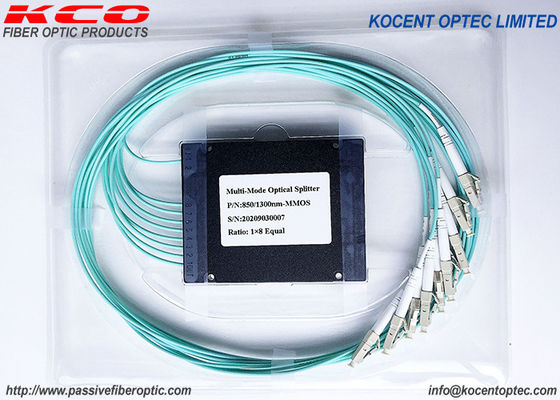

OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector

  • OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector
  • OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector
  • OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector
  • OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-OM3-3.0-1.0M-LC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*8 1x8 Connector LC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-OM3-3.0-1.0M-LC
Highlight

OM4 Fiber Optic Splitter

,

OM3 Fiber Optic Splitter

,

1*8 optical cable splitter
Leave a Message
Product Description
MM OM2 OM3 OM4 Fiber Optic Multimode Splitter 1×8 1×4 1×16 1×2 ABS Box Type
Product Description
The fiber optic splitter is a passive optical device that splits an incident light beam into multiple beams. These beams may have varying optical power based on the splitter configuration, making it ideal for optical network design, monitoring, and passive optical network (PON) architectures.
Our multimode couplers feature low insertion loss and excellent environmental stability. Available in 50/125µm and 62.5/125µm fiber types with 850nm or 1310nm wavelength range. Multiple jacket options include 3mm cable, 900µm loose tube, or 250µm bare fiber.
This passive device with multiple input/output terminals is particularly suitable for PON (EPON, GPON, BPON, FTTX) applications, connecting main distribution frames with terminal equipment while branching optical signals. It provides a cost-effective, reliable light distribution solution.
Key Features
  • FTTX Deployment
  • FTTH Network
  • LAN Connectivity
  • CATV System Integration
  • Optical Signal Distribution
  • Passive Optical Network (PON)
  • Fiber Optic Systems
  • Measuring Systems
  • Laser Systems
  • DWDM and CWDM Systems
  • Data Communications
  • Fiber Optic Testing
Applications
  • Fiber Optic CATV
  • Fiber to Home (FTTH)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
  • Fiber Communication Systems
Technical Specifications
Fiber Length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260-1650
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Performance Specifications
Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector 0
Our PLC Splitter Family
OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector 1
OEM/ODM Service
We offer custom branding services for your logo on cables, packaging, labels, or any visible surface. Contact our sales team for personalized support.
OM4 OM2 Fiber Optic Splitter ABS Box Type for FTTX Deployment with LC Connector 2
Packaging & Shipping
Packaging: Standard export packaging options include carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight, and sea freight. Standard export ports include Shenzhen, Hong Kong, Ningbo, with airports in Shenzhen, Hong Kong, Hangzhou, and Shanghai.
