ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems

  • ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems
  • ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems
  • ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems
  • ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-OM3-3.0-1.0M-LC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*8 1x8 Connector LC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-OM3-3.0-1.0M-LC
Highlight

Multi Mode Plc Optical Coupler

,

1*2 Plc Optical Coupler

,

LC FC Fiber Optic Coupler
Leave a Message
Product Description

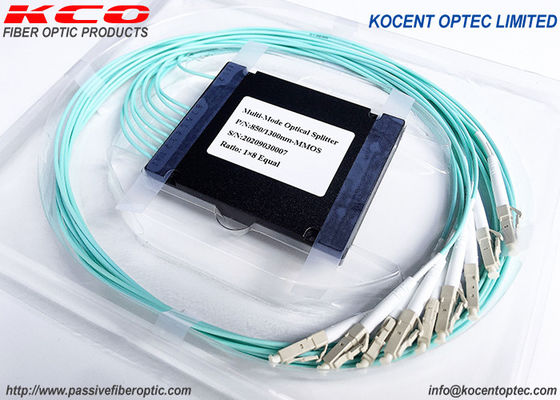

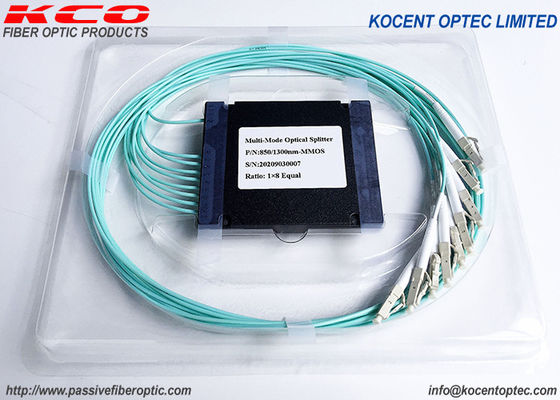

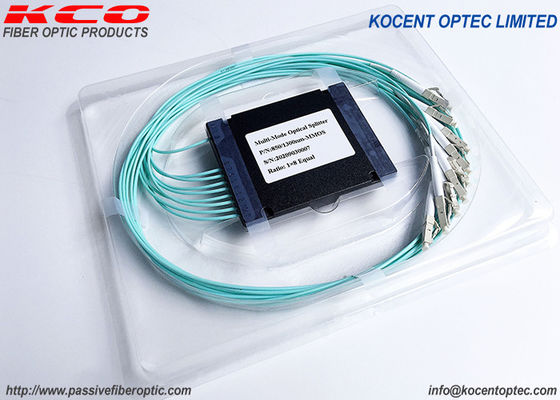

Multimode OM3 Fiber Optical Coupler PLC Splitter
Product Description
The Multimode PLC Optical Coupler is available in 1×2, 1×4, and 1×8 configurations with SC, LC, FC, or ST connectors. This bi-directional coupling device can split or combine signals using 50/125μm or 62.5/125μm fiber with low insertion loss at 850nm operating wavelength.
The 1×8 coupler features a ruggedized black plastic housing with 1-meter long, 3mm PVC covered pigtails and FC/PC connectors. These MM graded index couplers provide excellent environmental and mechanical stability with options for 3mm cable jacket, 900µm loose tube jacket, or 250µm bare fiber.
As a passive optical device with multiple input/output terminals, it's ideal for PON applications (EPON, GPON, BPON, FTTX) connecting MDF to terminal equipment while branching optical signals. Our fiber optic splitters offer a cost-effective light distribution solution with high stability and reliability.
Key Features
  • Low Insertion Loss and PDL
  • High Return Loss
  • Uniform Power Splitting
  • Wide Operating Wavelength and Temperature Range
  • Excellent Environmental Stability
  • High consistency across all ports
Applications
  • FTTX Deployment and FTTH Networks
  • CATV Systems and Optical Signal Distribution
  • Passive Optical Networks (PON)
  • Fiber Optic Communication Systems
  • Measuring and Laser Systems
  • DWDM and CWDM Systems
  • Local Area Networks (LAN)
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems 0 ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems 1
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for personalized OEM/ODM solutions.
ABS Box Modular PLC Splitter with Low Insertion Loss and High Return Loss for Fiber Optic Systems 2
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden cases, or pallets.
Shipping Options: International express (UPS, TNT, DHL), air freight, or sea transport from major Chinese ports.
