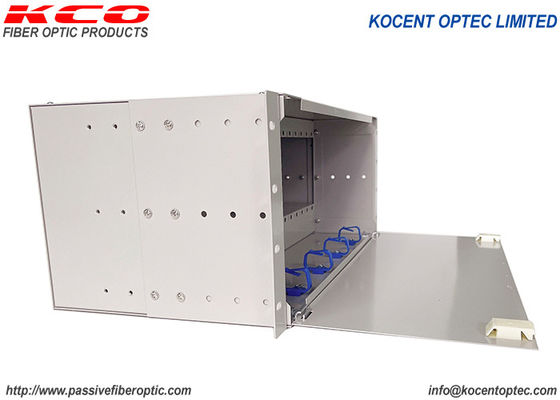

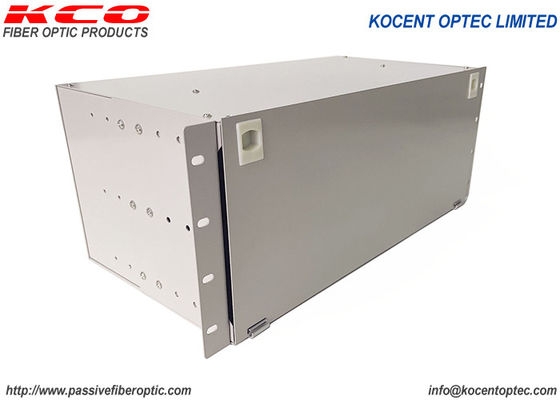

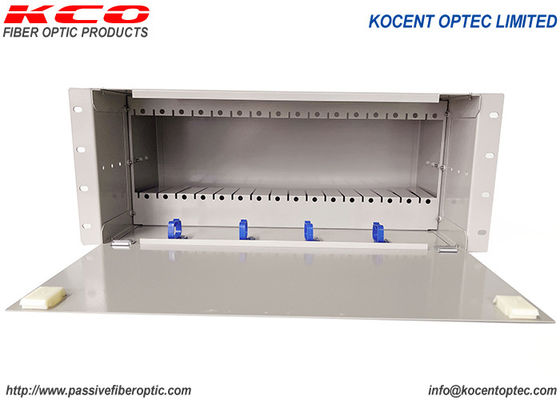

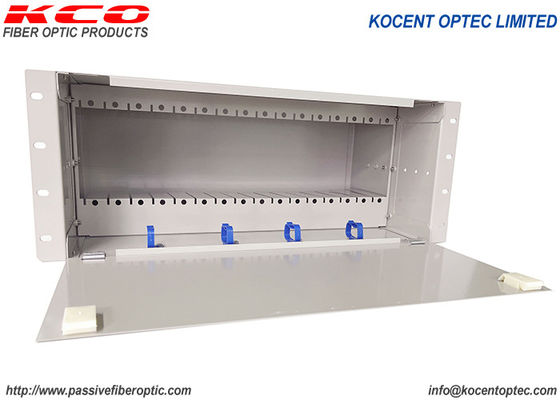

4U 16 Slot LGX PLC Fiber Optic Splitter Rack Mount Chassis Box for FTTH FTTx with 1x2 Split Way
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-4U-LGX-Splitter-16-8SCU |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 5~8 days |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Tape | High | 4U |
|---|---|---|---|
| Splitter Type | LGX Type | Split Way | 1*2 1*4 1*8 1*16 |
| Connector | SCUPC SCAPC LCUPC LCAPC | Cable | 0.9mm |
| Size | 19'' | Application | Indoor For Cabinet |
| Highlight | LGX Plc Splitter,4U 16 Slot Plc Splitter,FTTx ftth splitter |
||
Product Description
4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
The 4U 16 Slot LGX PLC Splitter Rack Mount Chassis Box is designed for FTTH/FTTx applications. PLC (Planar Waveguide Circuit) splitters are passive optical devices that uniformly divide or combine light beams, making them ideal for PON networks including EPON, GPON, BPON, and FTTX systems.
This high-density fiber distribution frame enables efficient fiber connection, distribution, and scheduling in optical access networks. Its 19" rack-mounted design with space-saving LGX box configuration allows installation of up to 16 small LGX boxes per chassis.
Key Features
- Low insertion loss
- Low Polarization Dependent Loss
- Excellent environmental stability
- Excellent mechanical stability
- Space-saving 19" rack mount design
- Supports up to 1x128 splitting ratio
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Technical Specifications
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
Performance Specifications
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
|---|---|---|---|---|---|---|
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Packing Information
- 1pc/small carton box/ 45*20*22cm/2.20kg
- Full loaded 1x4 PLC Splitter: 3.8kg
- Full loaded 1x8 PLC Splitter: 4.0kg
- 6pcs/carton box/ 46*30*59cm/15kg
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for OEM/ODM solutions tailored to your requirements.
Shipping Options
- International express: UPS, TNT, DHL
- International air freight
- Sea freight
- Standard export ports: Shenzhen, Hongkong, Ningbo
- Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
