4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx

  • 4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
  • 4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
  • 4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
  • 4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
  • 4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-4U-LGX-Splitter-16-8SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape High 4U
Splitter Type LGX Type Split Way 1*2 1*4 1*8 1*16
Connector SCUPC SCAPC LCUPC LCAPC Cable 0.9mm
Size 19'' Application Indoor For Cabinet
Highlight

LGX Plc Splitter

,

4U 16 Slot Plc Splitter

,

FTTx ftth splitter
Leave a Message
Product Description

4U 16 Slot LGX Plc Splitter Rack Mount Chassis Box For FTTH FTTx



Description:

- PLC splitter, also called Planar Waveguide Circuit splitter, is a device used to divide one or two light beams into multiple light beams uniformly or combine multiple light beams to one or two light beams.

- It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.
- PLC splitter provides a low-cost light distribution solution with high stability and reliability.

- PLC splitters can offer a splitting ratio of up to 1x128, which is generally higher than the splits of FBT splitter that another common type of optical splitter.

- In passive optical networks (PON), a PLC splitter is widely installed between the PON Optical Line Terminal (OLT) and the Optical Network Terminals/Units (ONTs/ONUs) that the OLT serves. T

- The single fiber link coming from the Central Office (CO) OLT is connected with the input of a splitter and is split into a given number of fibers leaving the splitter. The number of outputs in the PLC module determines the number of splits.

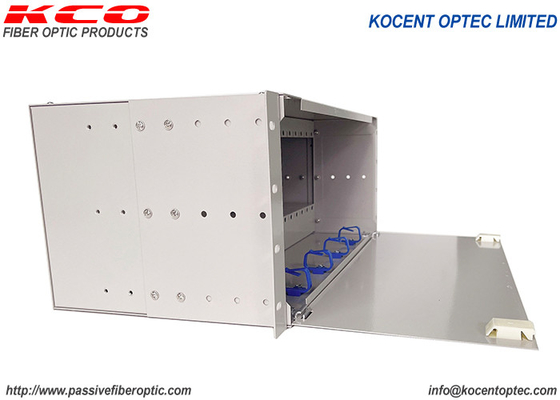

4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx 0



- Fiber Optic Distribution Frame is a high-capacity, high-density fiber distribution frame, suitable composition and distribution of fibers in the optical access network to achieve the fiber optic lines connection, distribution and scheduling, the 19” rack-mounted patch panel, and fiber optic splitter can be loaded inside.

- This 16 slot LGX Fiber Optical Splitter is special design for our 3U Splitter Chassic Patch Panel.

- With small size design, it can save more space for your cabinet.

- Standard 19'' Rack Mount Type Chassis Box, it copy design from Media Converter Chassis Box to save more space and easier to operate.

- Each Splitter Chassic Box can install maximum 16 pcs of small LGX box.



Products size:

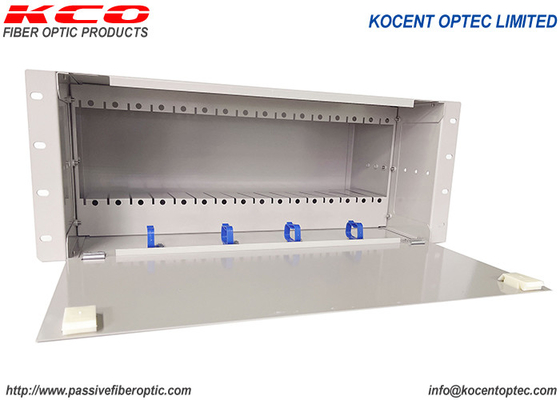

4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx 1



Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Product picture:

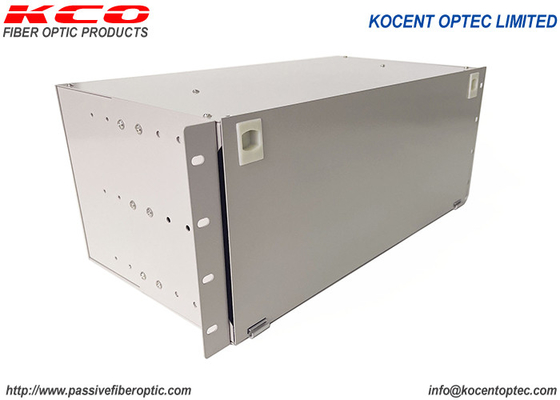

4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx 2

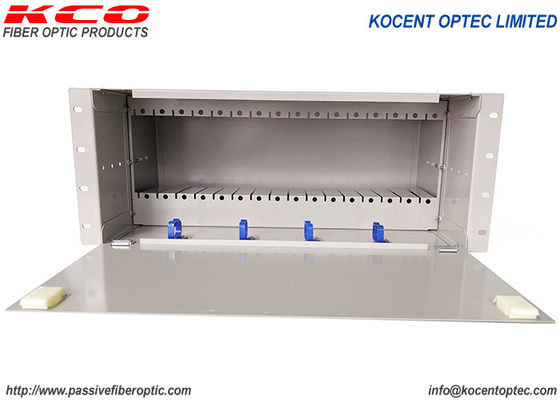

4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx 3



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Packing information:

- 1pc/small carton box/ 45*20*22cm/2.20kg

(full loaded 1*4 PLC Splitter: 3.8kg)

(full loaded 1*8 PLC Splitter: 4.0kg)



- 6pcs/carton box/ 46*30*59cm/15kg



Relation products:



4U 16 Slot LGX PLC Optica FIbra Splitter Rack Mount Chassis Box For FTTH FTTx 4



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
