4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss

  • 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss
  • 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss
  • 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss
  • 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss
  • 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-4U-LGX-Splitter-16-8SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape High 4U
Splitter Type LGX Type Split Way 1*2 1*4 1*8 1*16
Connector SCUPC SCAPC LCUPC LCAPC Cable 0.9mm
Size 19'' Application Indoor For Cabinet
Highlight

Fiber Optic Plc Splitter 1x2

,

4U Fiber Optic Plc Splitter

,

4U Plc Splitter 1x4
Leave a Message
Product Description
PON FTTH FTTX 19'' 4U Fiber Optic PLC Splitter 14slots 16slots Chassic ODF Patch Panel
Product Description
A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams. These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of an optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture.
This PLC splitter is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal. PLC splitters can offer a splitting ratio of up to 1x128, which is generally higher than the splits of FBT splitter that another common type of optical splitter.
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Product Images

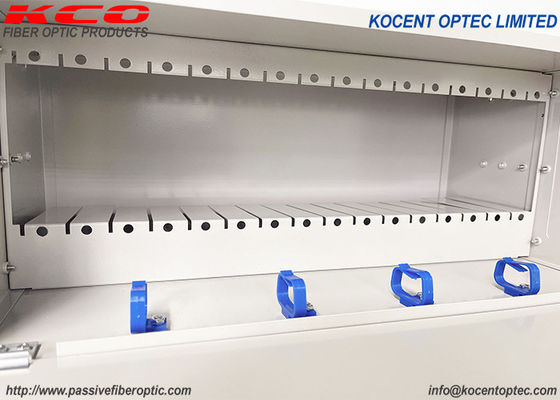

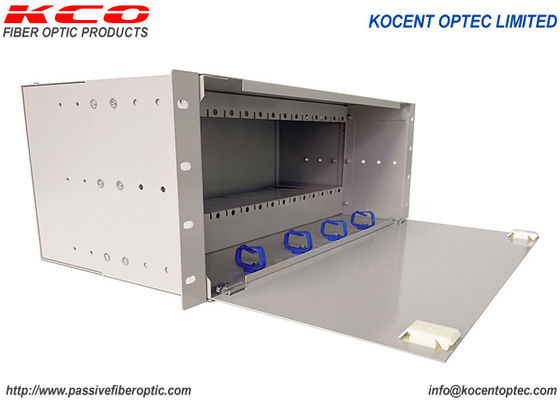

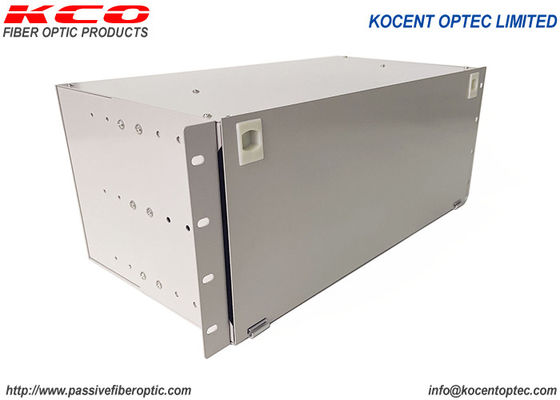

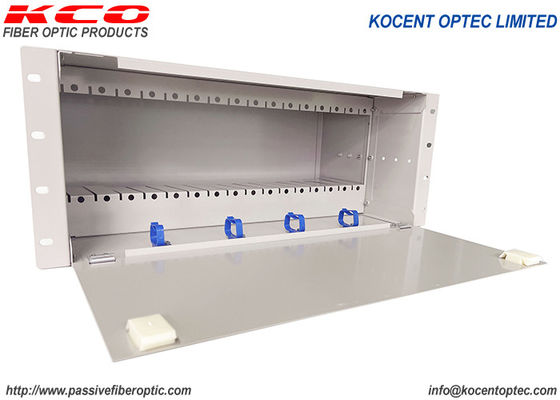

4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss 0 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss 1 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss 2 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss 3 4U 19'' Fiber Optic PLC Splitter with 0.9mm Cable for Indoor Cabinet Use and Low Insertion Loss 4
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Packing Information

1pc/small carton box/ 45*20*22cm/2.20kg

(full loaded 1*4 PLC Splitter: 3.8kg)

(full loaded 1*8 PLC Splitter: 4.0kg)

6pcs/carton box/ 46*30*59cm/15kg
