FTTH FTTO FTTB Fiber Optic Wall Outlet Indoor IP55 2 Core Roset Box

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FTB-02-SCD
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month
Product Details
Material ABS, ABS+PC P/N KCO-FTB-02-SCD
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 2 Cores / 4 Cores
Adapter SC Duplex, LC 4 Ways Name 2 Core Roset Box
High Light

FTTB fiber optic wall outlet

,

IP55 fiber optic wall outlet

,

ISO9001 optical wall outlet

Leave a Message
Product Description

FTTH FTTO FTTB 2 Cores Indoor Wall Outlet Fibra Optica Roset Terminal Box



Overview:
- Kocent Optec Limited is one of lead supplier of passive fiber optic product in Shenzhen, China.

- Main Product Cataloge:

+ Fiber Optic Cable

+ Fiber Optic Splitter
+ Fiber Optic Patch Cord / Pigtail
+ Fiber Optic Distribution Box
+ Fiber Optic Terminal Box, Outlet Face Plate
+ Fiber Optic Splice Closure Box,

+ Fiber Optic Adapter, Connector, Attenuator, and other accessories



Descriptions:

- Fiber Optic Faceplate can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

- Optic fiber panel is the end product for FTTH entering the household.

- It is wildly used in family or work place.
- One SC duplex or LC quad adapter interface;
- Redundant fiber can be stored inside, easy to use and maintain;
- Reversible disk increase the distribution space with clear splicing and wiring, zone, the line crossing is reduced;
- Heat or mechanical splicing.

- Widely used, especially for multi-story and high rise buildings;
- Fully enclosed panel box, additional transparent cover at the outlet to achieve better dust proof.



Chatacterist:

- With protective doors, dust proof IP55.
- Suitable for many types of modules,used in cabling work area subsystem.
- Embedded type surface,easy for installation and removal.
- Available for fiber optical SC duplex or LC quad.

- Can be used in both surface mounted installation and concealed panel installation.



Feature:

- It is applicable for FTTH, FTTO and FTTD, etc.

- The clasp design of the cover has greatly reduced the installation strength.

- It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.

- Coordinating with FC strip-type optical adapter,
- It generates more options in term of fiber interfaces for users, SC, FC is available.

- The big-diametered wrapping post in the box protects radically in an omnibearing way.



Specification:

Model KCO-FTB-02-SCD
Dimension (H*W*D) 115*86*23mm
Max. Capacity 2/4 cores
Max. Adapter 1 pcs SC duplex, or LC 4 ways
PLC Splitter non
Material PC+ABS/ ABS
Weight 90gr
Color White
Labeling service Free Label Printing for order more than 1000pcs

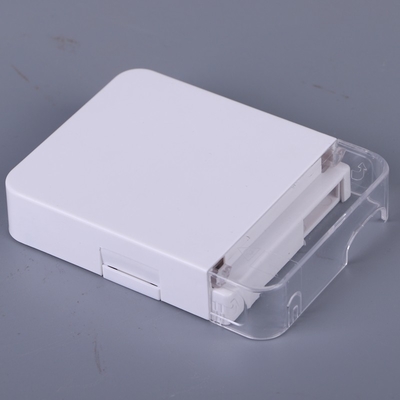

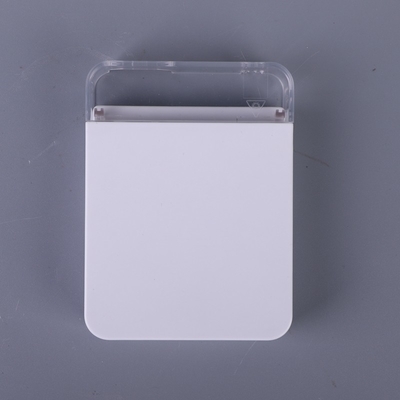

Products photos:

FTTH FTTO FTTB Fiber Optic Wall Outlet Indoor IP55 2 Core Roset Box 0



Related Products:
FTTH FTTO FTTB Fiber Optic Wall Outlet Indoor IP55 2 Core Roset Box 1
FTTH FTTO FTTB Fiber Optic Wall Outlet Indoor IP55 2 Core Roset Box 2
FTTH FTTO FTTB Fiber Optic Wall Outlet Indoor IP55 2 Core Roset Box 3


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc

- Standard shipping port: Shenzhen, Hongkong, Ningbo
